ADRF6510

Rev. 0 | Page 27 of 28

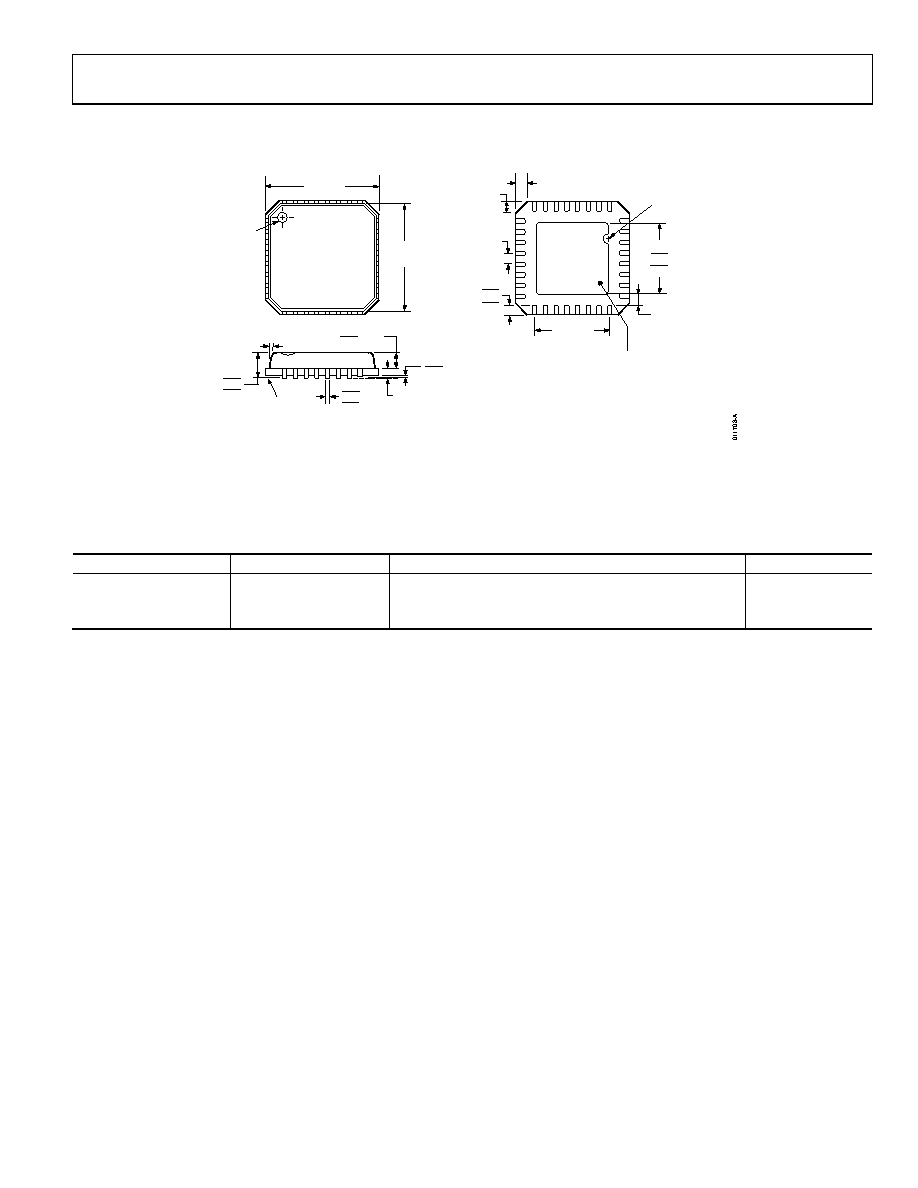

OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MO-220-VHHD-2

0.30

0.23

0.18

0.20 REF

0.80 MAX

0.65 TYP

0.05 MAX

0.02 NOM

12° MAX

1.00

0.85

0.80

SEATING

PLANE

COPLANARITY

0.08

0.50

0.40

0.30

3.50 REF

0.50

BSC

PIN 1

INDICATOR

TOP

VIEW

5.00

BSC SQ

4.75

BSC SQ

3.25

3.10 SQ

2.95

PIN 1

INDICATOR

0.60 MAX

0.25 MIN

EXPOSED

PAD

(BOTTOM VIEW)

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

Figure 62. 32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

5 mm × 5 mm Body, Very Thin Quad

(CP-32-2)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

ADRF6510ACPZ-R7

−40°C to +85°C

32-Lead LFCSP_VQ, 7”Tape and Reel

CP-32-2

ADRF6510ACPZ-WP

−40°C to +85°C

32-Lead LFCSP_VQ, Waffle Pack

CP-32-2

ADRF6510-EVALZ

Evaluation Board

1 Z = RoHS Compliant Part.
