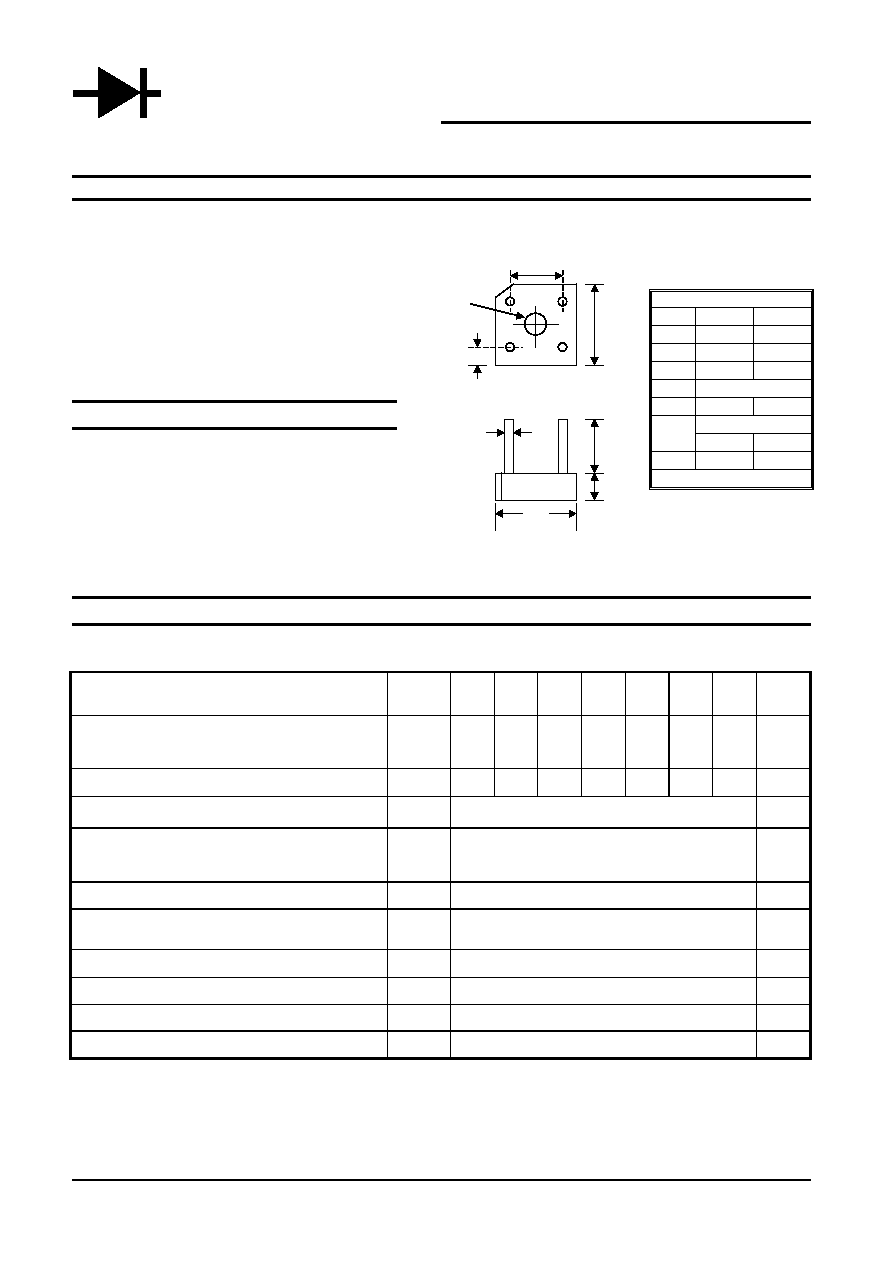

KBPC300 – KBPC310

1 of 3

KBPC300 – KBPC310

3.0A BRIDGE RECTIFIER

Features

!

Diffused Junction

!

High Current Capability

!

High Case Dielectric Strength

H

!

High Surge Current Capability

!

Ideal for Printed Circuit Board Application

+

~

!

Plastic Material has Underwriters Laboratory

G

Flammability Classification 94V-O

A

!

UL Recognized File # E157705

~

-

E

Mechanical Data

!

Case: Molded Plastic

D

C

!

Terminals: Plated Leads Solderable per

MIL-STD-202, Method 208

!

Polarity: Marked on Body

B

!

Weight: 3.8 grams (approx.)

A

!

Mounting Position: Through Hole for #6 Screw

!

Mounting Torque: 5.0 Inch-pounds Maximum

!

Marking: Type Number

Maximum Ratings and Electrical Characteristics @T

A=25°C unless otherwise specified

Single Phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic

Symbol

KBPC

300

KPBC

301

KBPC

302

KBPC

304

KBPC

306

KBPC

308

KBPC

310

Unit

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

VRRM

VRWM

VR

50

100

200

400

600

800

1000

V

RMS Reverse Voltage

VR(RMS)

35

70

140

280

420

560

700

V

Average Rectified Output Current (Note 1) @TC = 50°C

IO

3.0

A

Non-Repetitive Peak Forward Surge Current 8.3ms

Single half sine-wave superimposed on rated load

(JEDEC Method)

IFSM

50

A

Forward Voltage (per element)

@IF = 1.5A

VFM

1.2

V

Peak Reverse Current

@TC = 25°C

At Rated DC Blocking Voltage

@TC = 100°C

IR

10

1.0

µA

mA

I2t Rating for Fusing (t<8.3ms) (Note 2)

I2t

10

A2s

Typical Junction Capacitance (Note 3)

Cj

55

pF

Typical Thermal Resistance (Note 4)

RJC

25

K/W

Operating and Storage Temperature Range

Tj, TSTG

-65 to +125

°C

Note: 1. Mounted on metal chassis.

2. Non-repetitive, for t > 1ms and < 8.3ms.

3. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.

4. Thermal resistance junction to case per element.

WT E

PO W E R SEM IC O ND UC TO R S

KBPC-3

Dim

Min

Max

A

14.73

15.75

B

5.84

6.86

C

19.00

—

D

0.70 Ø Typical

E

1.70

2.72

Hole for #6 screw

G

3.60

4.00

H

10.30

11.30

All Dimensions in mm
