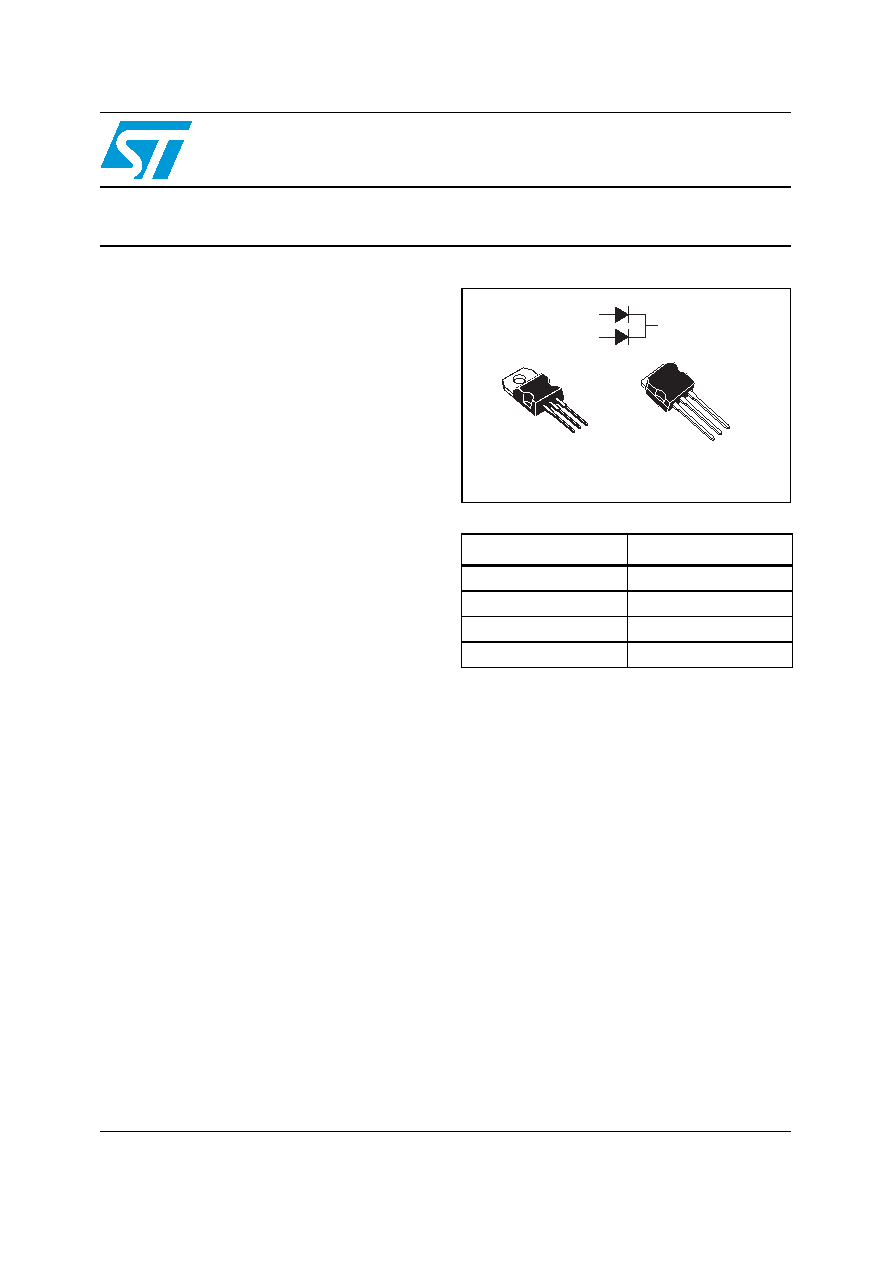

STPS50U100C

Ultralow forward voltage power Schottky rectifier

Features

■ Ultralow forward voltage drop

■ High current capability

■ High frequency operation

■ ECOPACK®2 compliant components

Description

The STPS50U100C is a dual power Schottky

diode rectifier, suited for high frequency switch

mode power supply.

Featuring an ultralow forward voltage drop, this

device, packaged in TO-220AB and I²PAK, is

intended to be used in notebook, game station

and desktop adaptors as well as server SMPS. It

has been especially designed to help power

supply manufacturers meet the recently

introduced worldwide efficiency standards.

Table 1.

Device summary

Symbol

Value

IF(AV)

2 x 25 A

VRRM

100 V

VF(TYP) @ 25 A @ 125 °C

0.64 V

Tj (max)

150 °C

K

A1

A2

A1

K

A2

A1

K

A2

TO-220AB

STPS50U100CT

I2PAK

STPS50U100CR

www.st.com
