ADP1877

Rev. 0 | Page 31 of 32

OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MO-220-WHHD.

0.50

BSC

BOTTOM VIEW

TOP VIEW

PIN 1

INDICATOR

EXPOSED

PAD

PIN 1

INDICATOR

3.65

3.50 SQ

3.45

SEATING

PLANE

0.05 MAX

0.02 NOM

0.20 REF

COPLANARITY

0.08

0.30

0.25

0.18

5.10

5.00 SQ

4.90

0.80

0.75

0.70

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

0.50

0.40

0.30

0.25 MIN

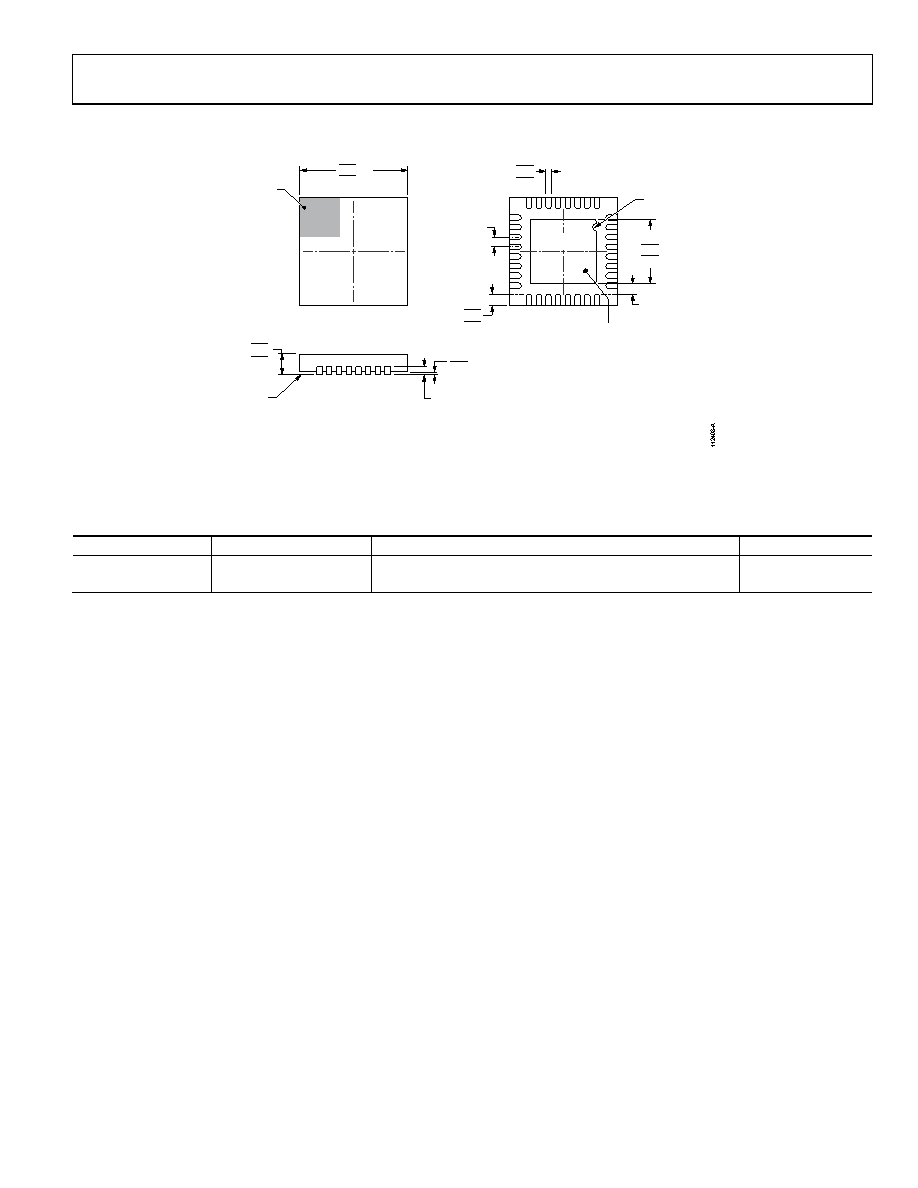

Figure 45. 32-Lead Lead Frame Chip Scale Package [LFCSP]

5 mm × 5 mm Body, Very Thin Quad

(CP-32-11)

Dimensions shown in millimeters

ORDERING GUIDE

Model

Temperature Range

Package Description

Package Option

ADP1877ACPZ-R71

−40°C to +85°C

32-Lead Lead Frame Chip Scale Package [LFCSP]

CP-32-11

ADP1877HC-EVALZ1

Evaluation Board with 13 A Output

1 Z = RoHS Compliant Part.
