Inchange Semiconductor

Product Specification

Silicon NPN Power Transistors

2SC2429

DESCRIPTION

·With TO-3 package

·High voltage ,high speed

·Wide area of safe operation

APPLICATIONS

·High speed switching

·Converters and inverters

PINNING (See Fig.2)

DESCRIPTION

1

Base

2

Emitter

3

Collector

Absolute maximum ratings(Ta=℃)

SYMBOL

PARAMETER

CONDITIONS

MAX

UNIT

VCBO

Collector-base voltage

Open emitter

450

V

VCEO

Collector-emitter voltage

Open base

400

V

VEBO

Emitter-base voltage

Open collector

7

V

IC

Collector current

15

A

ICM

Collector current-Peak

20

A

IB

Base current

5

A

PT

Total power dissipation

TC=25℃

150

W

Tj

Junction temperature

175

℃

Tstg

Storage temperature

-65~175

℃

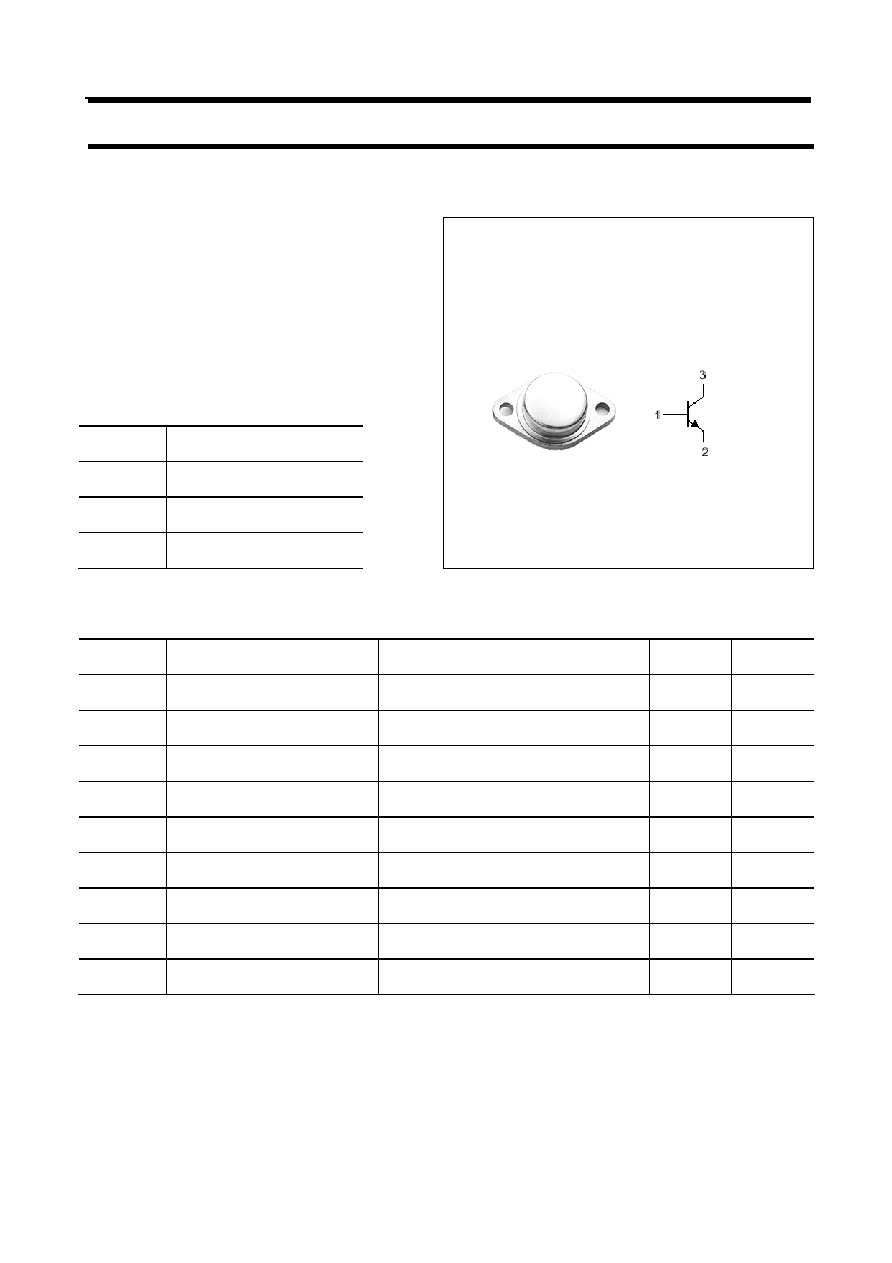

Fig.1 simplified outline (TO-3) and symbol
