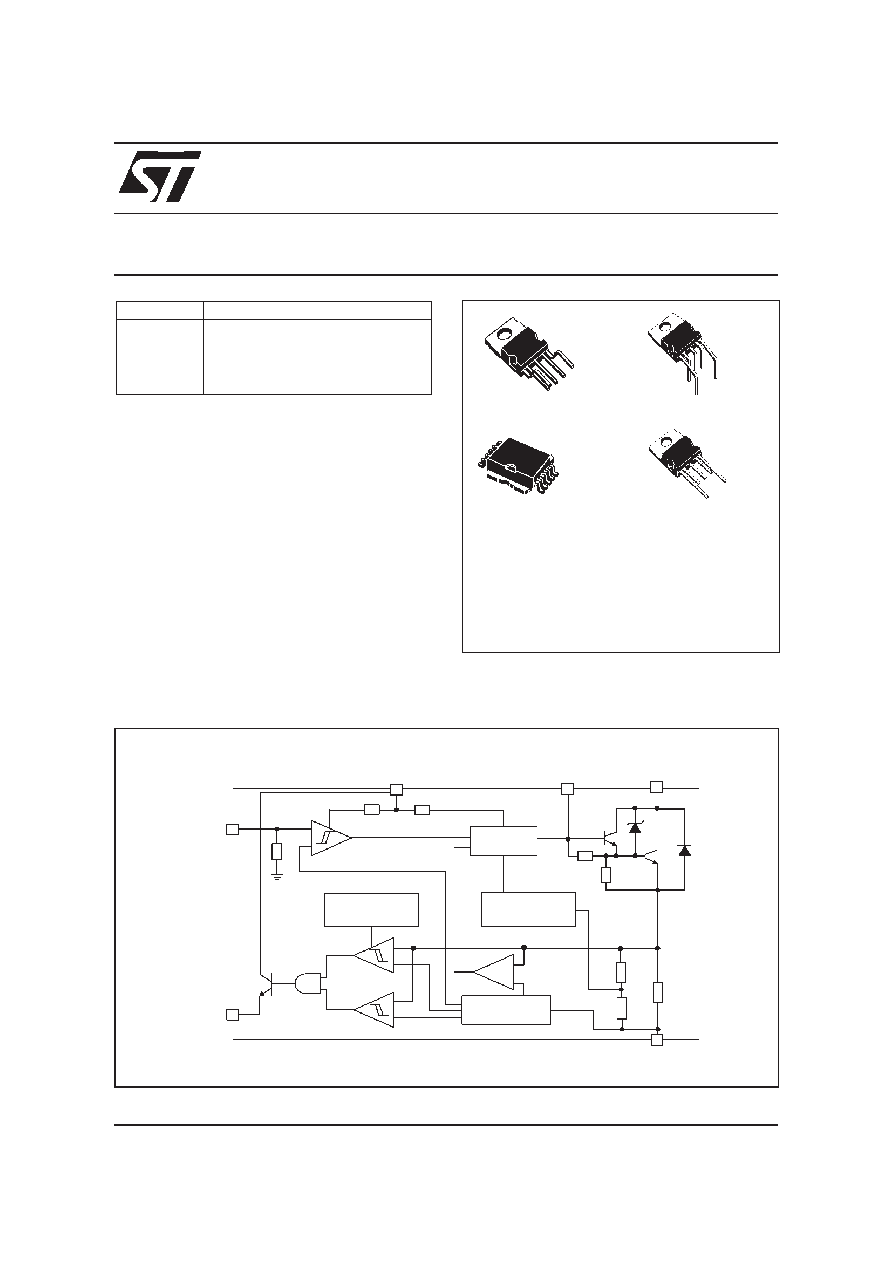

background image
July 1999
1/10
®
VB029 / VB029SP
/ VB029(011Y) / VB029(012Y)
HIGH VOLTAGE IGNITION COIL DRIVER
POWER I.C.
s
PRIMARY COIL VOLTAGE INTERNALLY SET
s
COIL CURRENT LIMIT INTERNALLY SET
s
LOGIC LEVEL COMPATIBLE INPUT
s
DRIVING CURRENT QUASI PROPORTIONAL
TO COLLECTOR CURRENT
s
DOUBLE FLAG-ON COIL CURRENT
s
DARLINGTON BASE ACCESSIBLE
DESCRIPTION
The
VB029,
VB029SP,
VB029(011Y)
VB029(012Y) are a high voltage power integrated
circuit designed in STMicroelectronics VIPower
™
technology, with vertical current flow power
darlington and logic level compatible driving
circuit. Built-in protection circuit for coil current
limiting and collector voltage clamping allows the
device to be used as smart, high voltage, high
current interface in advanced electronic ignition
system.
TYPE
Vcl
Icl
Id(on)
VB029
VB029SP
VB029(011Y)
VB029(012Y)
320V
12A
230mA
BLOCK DIAGRAM
PowerSO-10
™
1
10
GND
OVERTEMP.
DIAG 1
REFERENCE
PROTECTION
RSENSE
Vd
HVC
DIAG
INPUT
DIAG 2
QUASI PROP.
BASE CURRENT
+
-
+
-
Vbase
DRIVER
PENTAWATT HV (012Y)
ORDER CODES:
PowerSO-10
™
VB029SP
PENTAWATT HV (011Y)
VB029(011Y)
PENTAWATT HV
PENTAWATT HV (011Y)
PENTAWATT HV (012Y)
VB029(012Y)
PENTAWATT HV
VB029
