Section 14 16-Bit Timer Pulse Unit (TPU)
Rev. 2.00 Sep. 24, 2008 Page 766 of 1468
REJ09B0412-0200
P
φ
Address
Status flag
Interrupt request
signal
Source
address
Destination
address
Period in which the next transfer request is masked
T
1
T
2
DTC/DMAC
read cycle
DTC/DMAC
write cycle
T
1
T
2

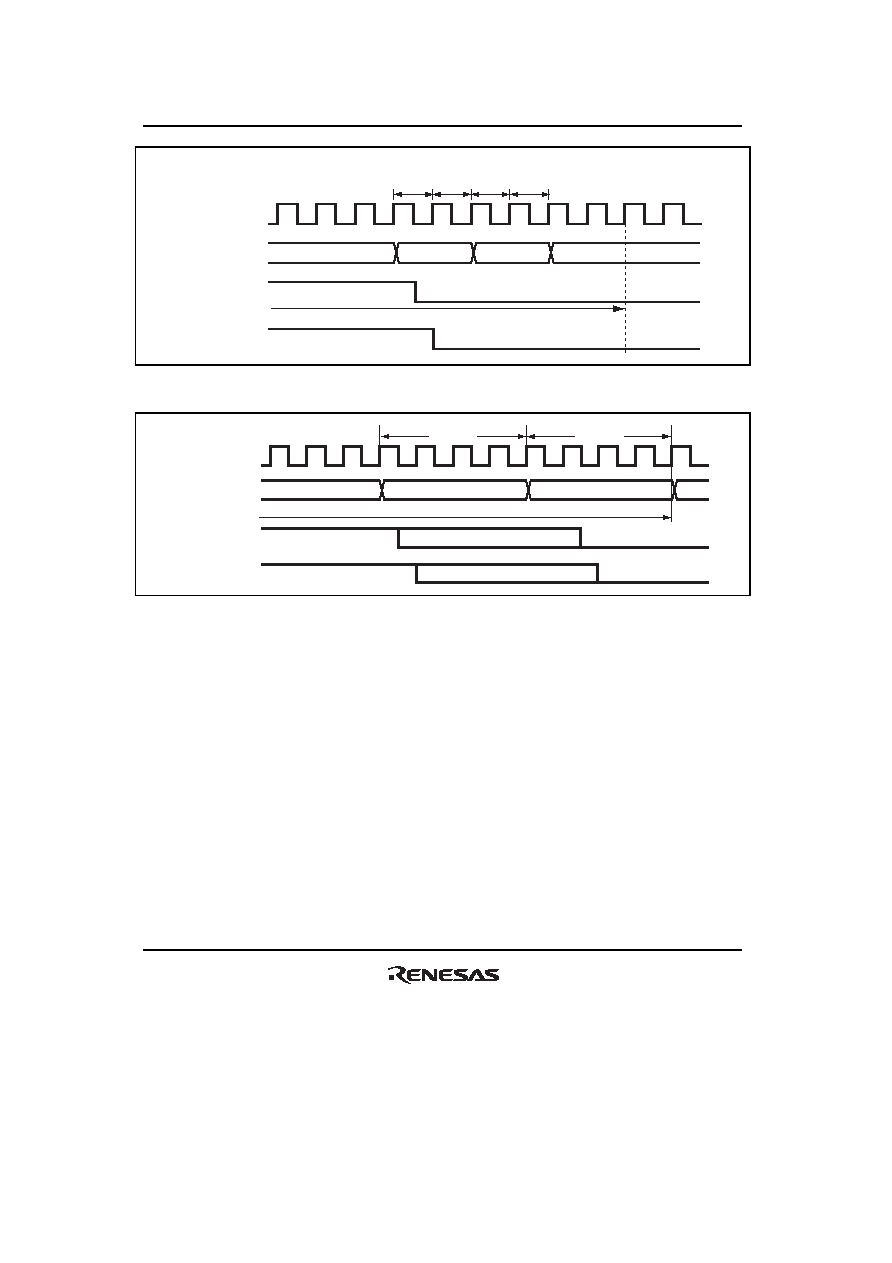

Figure 14.44 Timing for Status Flag Clearing by DTC/DMAC Activation (1)
P
φ
Address
Status flag
Interrupt request
signal
Source address
Destination address
Period of flag clearing
Period of interrupt request signal clearing
Period in which the next transfer request is masked
DTC/DMAC
read cycle
DTC/DMAC
write cycle
Figure 14.45 Timing for Status Flag Clearing by DTC/DMAC Activation (2)
