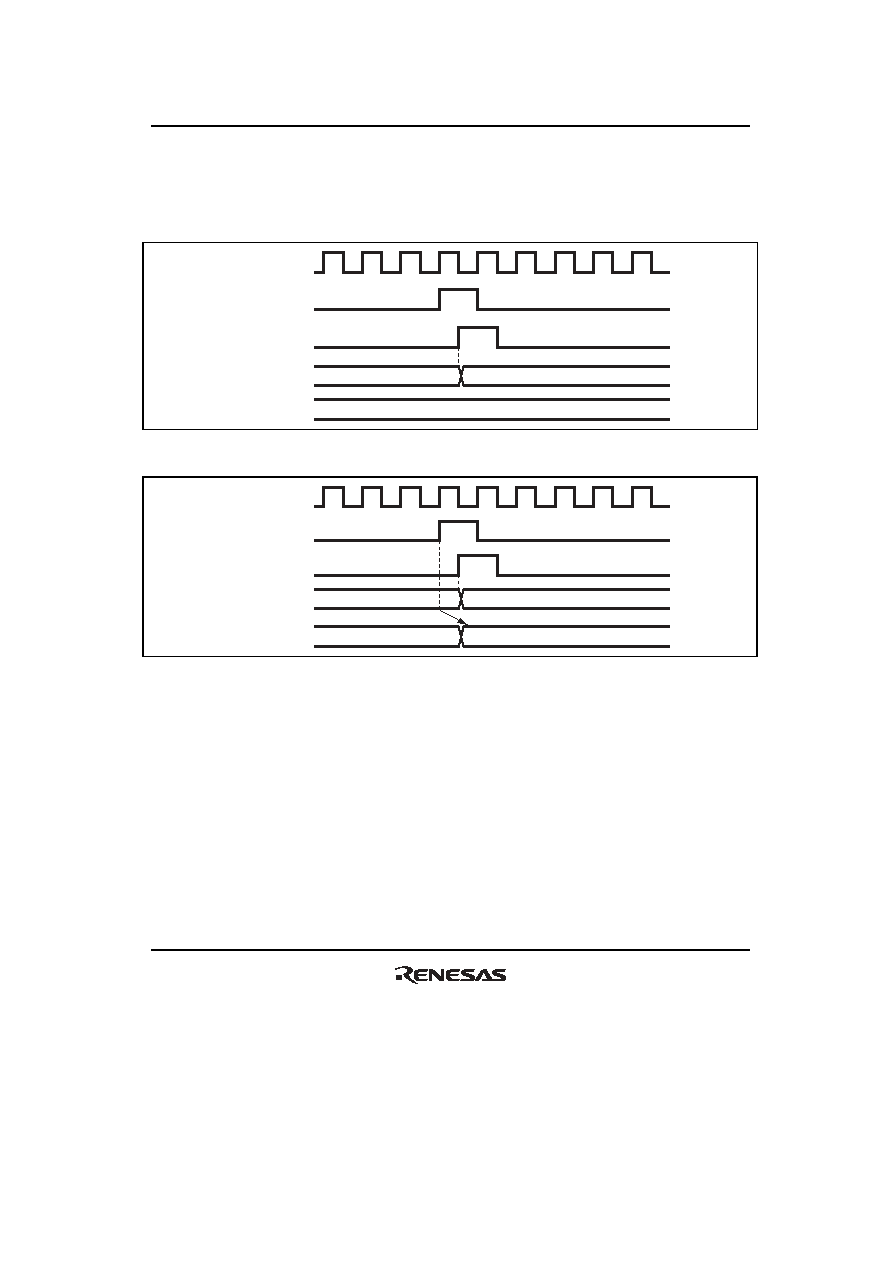

background image
Section 14 16-Bit Timer Pulse Unit (TPU)
Rev. 2.00 Sep. 24, 2008 Page 761 of 1468
REJ09B0412-0200
(4)
Timing for Counter Clearing by Compare Match/Input Capture
Figure 14.35 shows the timing when counter clearing by compare match occurrence is specified,
and figure 14.36 shows the timing when counter clearing by input capture occurrence is specified.
P
φ
TCNT
N
TGR
Compare match
signal
Counter clear
signal
H'0000
N
Figure 14.35 Counter Clear Timing (Compare Match)
TGR
Counter clear
signal
H'0000
P
φ
TCNT
N
Input capture
signal
N
Figure 14.36 Counter Clear Timing (Input Capture)
