74LVC86A

2/11

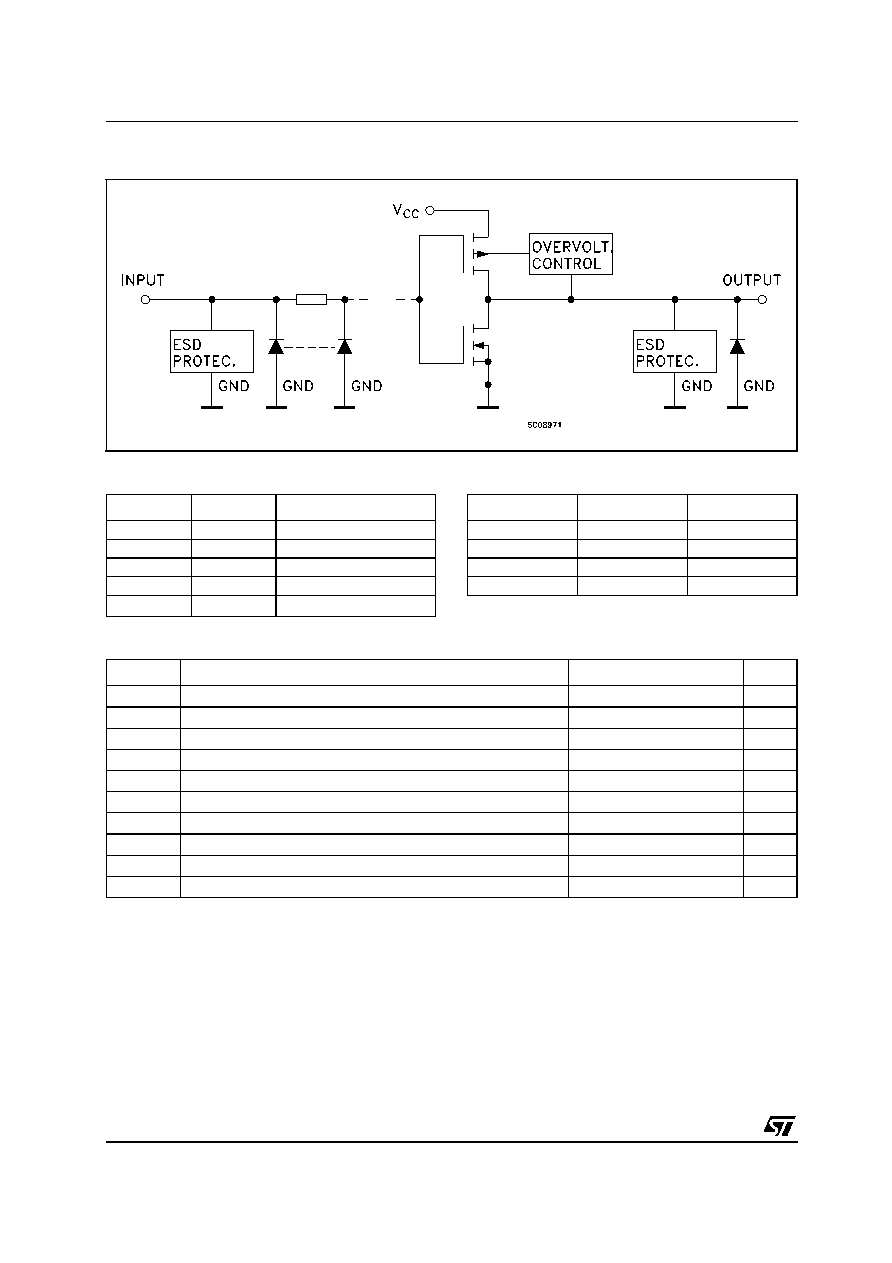

Figure 2: Input And Output Equivalent Circuit

Table 2: Pin Description

Table 3: Truth Table

Table 4: Absolute Maximum Ratings

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is

not implied

PIN N°

SYMBOL

NAME AND FUNCTION

1, 4, 9, 12

1A to 4A

Data Inputs

2, 5, 10, 13

1B to 4B

Data Inputs

3, 6, 8, 11

1Y to 4Y

Data Outputs

7

GND

Ground (0V)

14

Positive Supply Voltage

AB

Y

LLL

LH

H

HLH

HH

L

Symbol

Parameter

Value

Unit

Supply Voltage

-0.5 to +7.0

V

DC Input Voltage

-0.5 to +7.0

V

-0.5 to +7.0

V

DC Output Voltage (High or Low State) (note 1)

V

DC Input Diode Current

- 50

mA

DC Output Diode Current (note 2)

- 50

mA

DC Output Current

± 50

mA

± 100

mA

Storage Temperature

-65 to +150

°C

Lead Temperature (10 sec)

300

°C
