3.0A Sintered Glass Passivated Super Fast Rectifier
Rev. A/AH 2008-06-03
EGF3AB – EGF3KB
www.taitroncomponents.com
Page 2 of 5

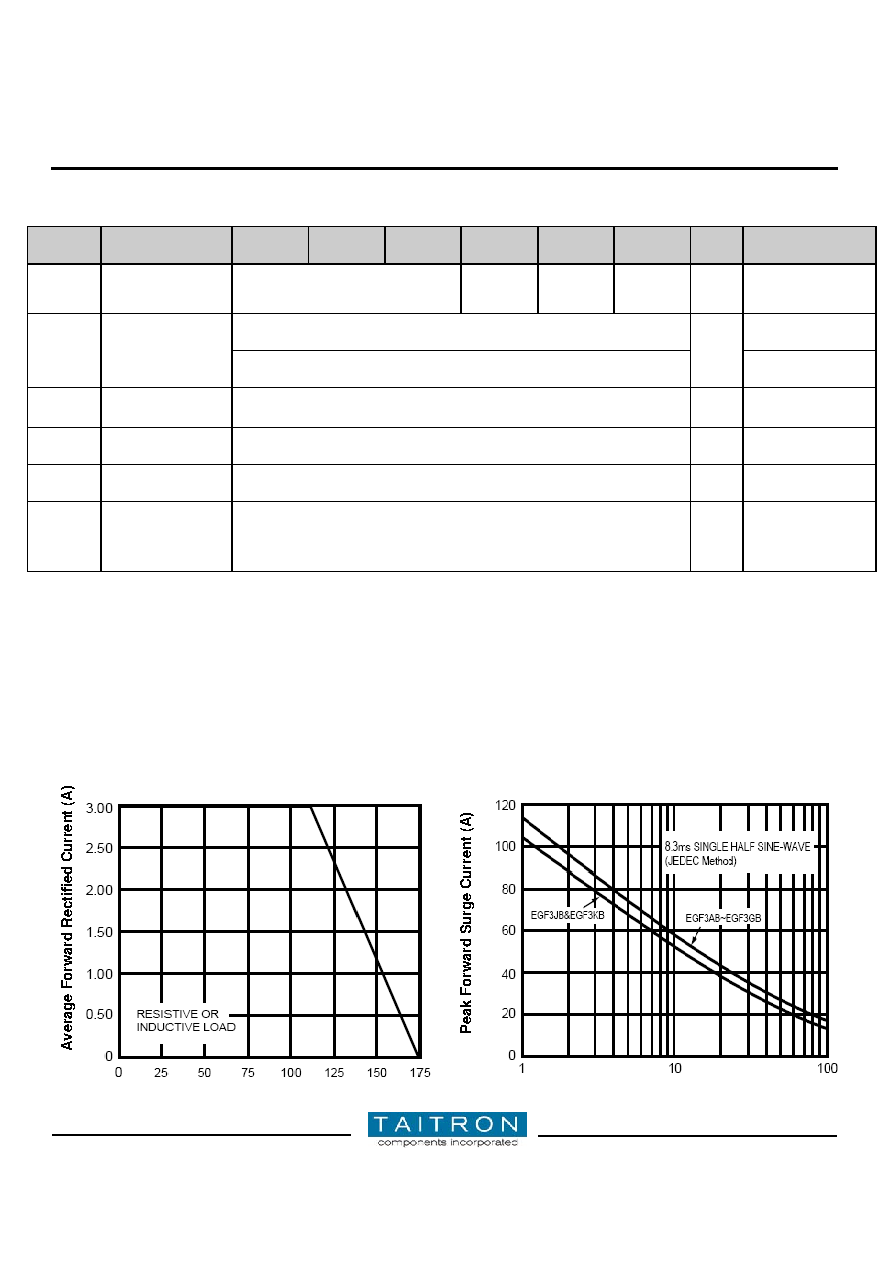

Fig.1- Forward Current Derating Curve
Lead Temperature (°C)
Fig.2-Max. Non-Repetitive Forward Surge Current
Number of Cycles at 60Hz
Note: Thermal resistance from junction to ambient P.C.B mounted on 0.2x0.2” (5.0x5.0mm) copper pad
areas.
Typical Characteristics Curves
Symbol
Description
EGF3AB
EGF3BB
EGF3DB
EGF3GB
EGF3JB
EGF3KB
Unit
Conditions
VF
Maximum
Instantaneous
Forward Voltage
0.95
1.25
1.7
2.2
V
IF=3.0 A
5.0
TA=25° C
IR
Maximum DC
Reverse Current at
Rated DC Blocking
Voltage
120
µA
TA=125° C
Trr
Maximum Reverse
Recovery Time
35
nS
IF=0.5A, IR=1.0A,
Irr=0.25A
CJ
Typical Junction
Capacitance
45
pF
VR=4V, f=1MHz
RthJA
Typical Thermal
Resistance
16
°C / W
Note
TJ,TSTG
Operating junction
and Storage
Temperature
Range
-55 to +175
° C
