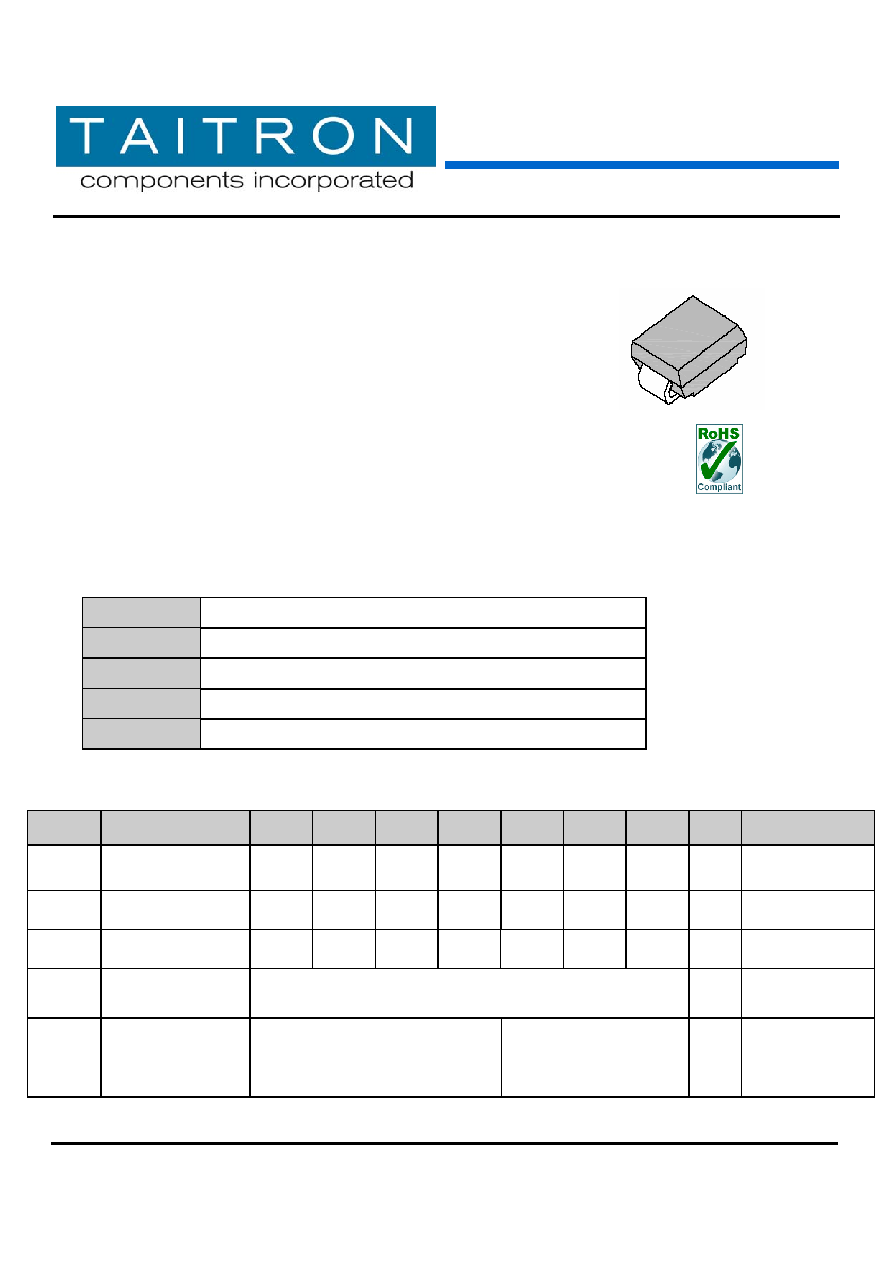

1 / 4 page

Rev. A/AH 2007-11-07

UGF3AB – UGF3MB

TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com

Page 1 of 4

Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060

Fax: (800)-TAITFAX

(800)-824-8329 (661)-257-6415

3.0A Sintered Glass Passivated

Ultra Fast Rectifier

3.0A Sintered Glass Passivated Ultra Fast Rectifier

Features

• Sintered glass passivated (SGP) rectifier chip

• Glass passivated cavity-free junction

• Ideal for surface mount automotive applications

• Superfast recovery time for high efficiency

• Built-in strain relief

• Easy pick and place

• High temperature soldering guaranteed:260°C/10 seconds,

at terminals

• RoHS Compliance

Mechanical Data

Case:

JEDEC DO-214AA(SMB) molded plastic over passivated chip

Epoxy:

Plastic package has UL flammability classification 94V-0

Terminals:

Solder plated, solderable per MIL-STD-750, Method 2026

Polarity:

Color band denotes cathode end

Weight:

0.003 ounces, 0.093 gram

Maximum Ratings and Electrical Characteristics (T A=25ºC unless noted otherwise)

Symbol

Description

UGF3

AB

UGF3

BB

UGF3

DB

UGF3

GB

UGF3

JB

UGF3

KB

UGF3

MB

Unit

Conditions

VRRM

Maximum Repetitive

Peak Reverse Voltage

50

100

200

400

600

800

1000

V

VRMS

Maximum RMS

Voltage

35

70

140

280

420

560

700

V

VDC

Maximum DC Blocking

Voltage

50

100

200

400

600

800

1000

V

IF(AV)

Maximum Average

Forward Rectified

Current

3.0

A

TA=75° C

IFSM

Peak Forward Surge

Current

115

105

A

8.3ms single half

sine-wave

superimposed on

rated load (JEDEC

Method)

SMB
