RC193xx Datasheet
1.4
RC19304 Pin Information
1.4.1
RC19304 Pin Assignments

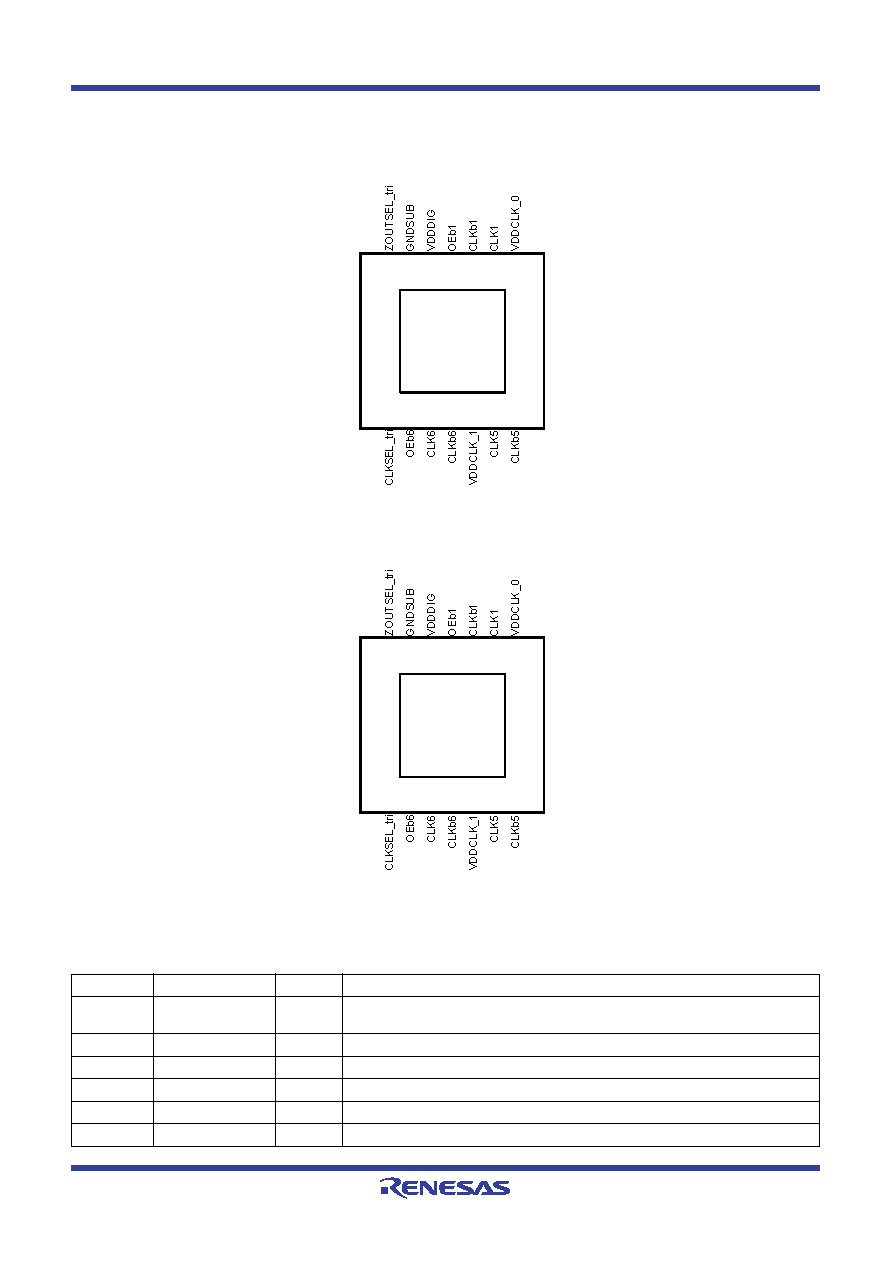

Figure 5. RC19304A Pin Assignments
Figure 6. RC19304A001 Pin Assignments
1.4.2
RC19304 Pin Descriptions
Table 2. RC19304A/A001 Pin Descriptions
Pin Number
Pin Name
Type
Description
1
PWRGD_PWRDNb
I, SE,
PDT, PU
Input notifies device to sample latched inputs and start up on first high assertion. Low
enters Power Down Mode, subsequent high assertions exit Power Down Mode.
2
CLKIN0
I, DIF
True clock input.
3
CLKINb0
I, DIF
Complementary clock input.
4
VDDIN0
PWR
Power supply for clock input 0.
5
CLKIN1
I, DIF
True clock input.
6
CLKINb1
I, DIF
Complementary clock input.
• 28272625242322
PWRGD_PWRDNb 1
21 CLKb2
CLKIN0 2
20 CLK2
CLKINb0 3
19 OEb2
VDDIN0 4
18 VDDA
CLKIN1 5
17 LOSb
CLKINb1 6
16 OEb5
VDDIN1 7
15 SLEWRATE_SEL
8
9 10 11 12 13 14
RC19304A
28-VFQFPN
Connect to EPAD
to GND
Top View
• 28272625242322
PWRGD_PWRDNb 1
21 CLKb2
CLKIN0 2
20 CLK2
CLKINb0 3
19 OEb2
VDDIN0 4
18 VDDA
CLKIN1 5
17 LOSb
CLKINb1 6
16 OEb5
VDDIN1 7
15 AMPLITUDE_SEL
8
9 10 11 12 13 14
RC19304A001
28-VFQFPN
Connect to EPAD
to GND
Top View
