PB137 Fiches technique(PDF) 2 Page - STMicroelectronics

No de pièce PB137
Description  POSITIVE VOLTAGE REGUALTOR FOR BATTERY CHARGER
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  STMICROELECTRONICS [STMicroelectronics]
Site Internet  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

PB137 Fiches technique(HTML) 2 Page - STMicroelectronics

  PB137 Datasheet HTML 1Page - STMicroelectronics PB137 Datasheet HTML 2Page - STMicroelectronics PB137 Datasheet HTML 3Page - STMicroelectronics PB137 Datasheet HTML 4Page - STMicroelectronics PB137 Datasheet HTML 5Page - STMicroelectronics PB137 Datasheet HTML 6Page - STMicroelectronics PB137 Datasheet HTML 7Page - STMicroelectronics PB137 Datasheet HTML 8Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out

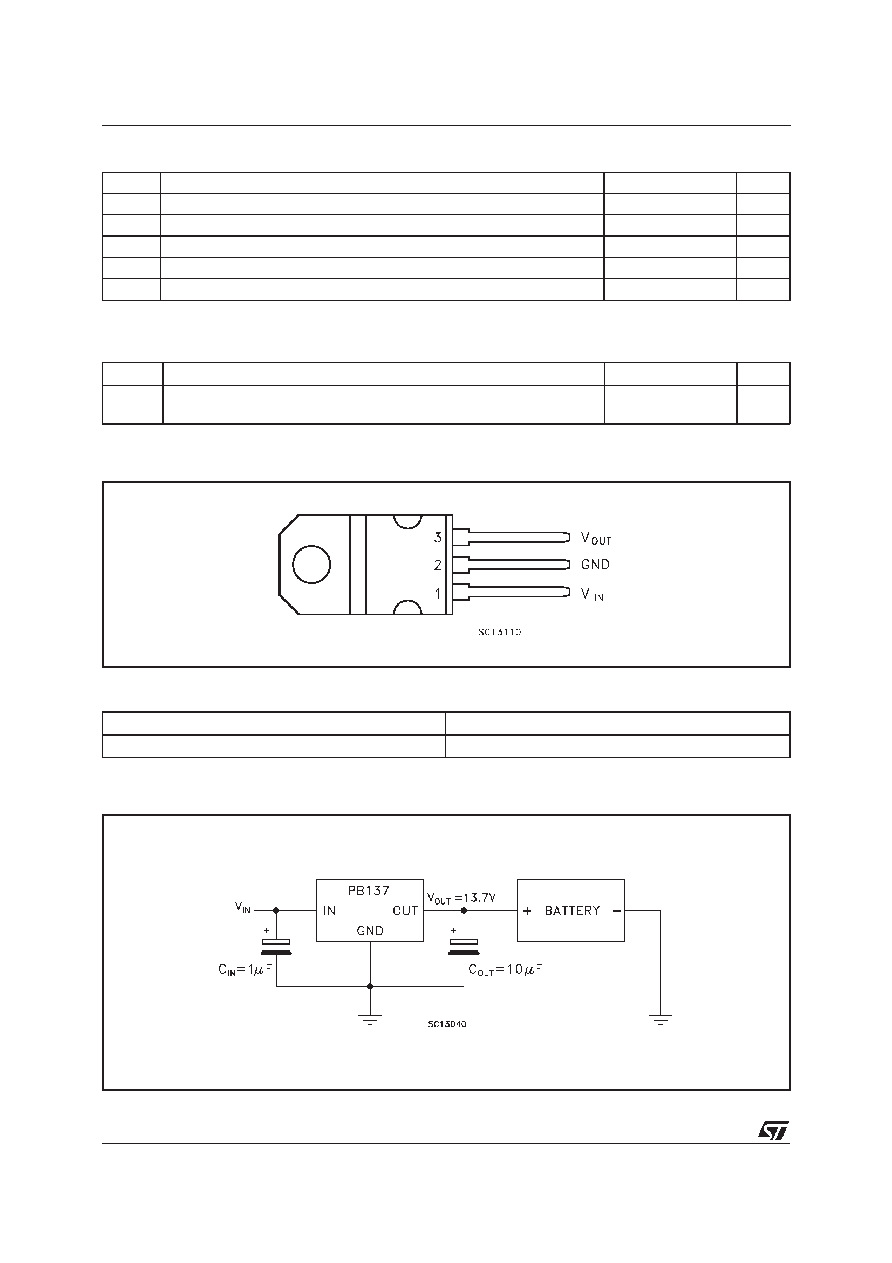

 2 / 8 page
background image
ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
Value
Unit
Vi
DC Input Voltage
40
V
Io
Output Current
I nternally limited
mA
Ptot
Power Dissipation
I nternally limited
mW
Tstg
Storage Temperature Range
- 65 to 150
o C
Top
Operating Junction Temperature Range
0 to 150
o C
Absolute Maximum Rating are those values beyond wich damage to the device may occur. Functional operation under these conditions is
not implied.
THERMAL DATA
Symbol
Parameter
Value
Unit
Rthj-ca se
Rthj-amb
Thermal Resistance Junction-case
Thermal Resistance Junction-ambient
3
50
oC/W
oC/W
CONNECTION DIAGRAM (top view)
ORDERING NUMBERS
Type
Output Voltage
PB137ACV
13. 7 V
APPLICATION CIRCUIT
PB137
2/8
