RL78/D1A
4. ELECTRICAL SPECIFICATIONS (L GRADE PRODUCT)
R01DS0463EJ0120 Rev. 1.20
Page 118 of 135
Mar 31, 2026

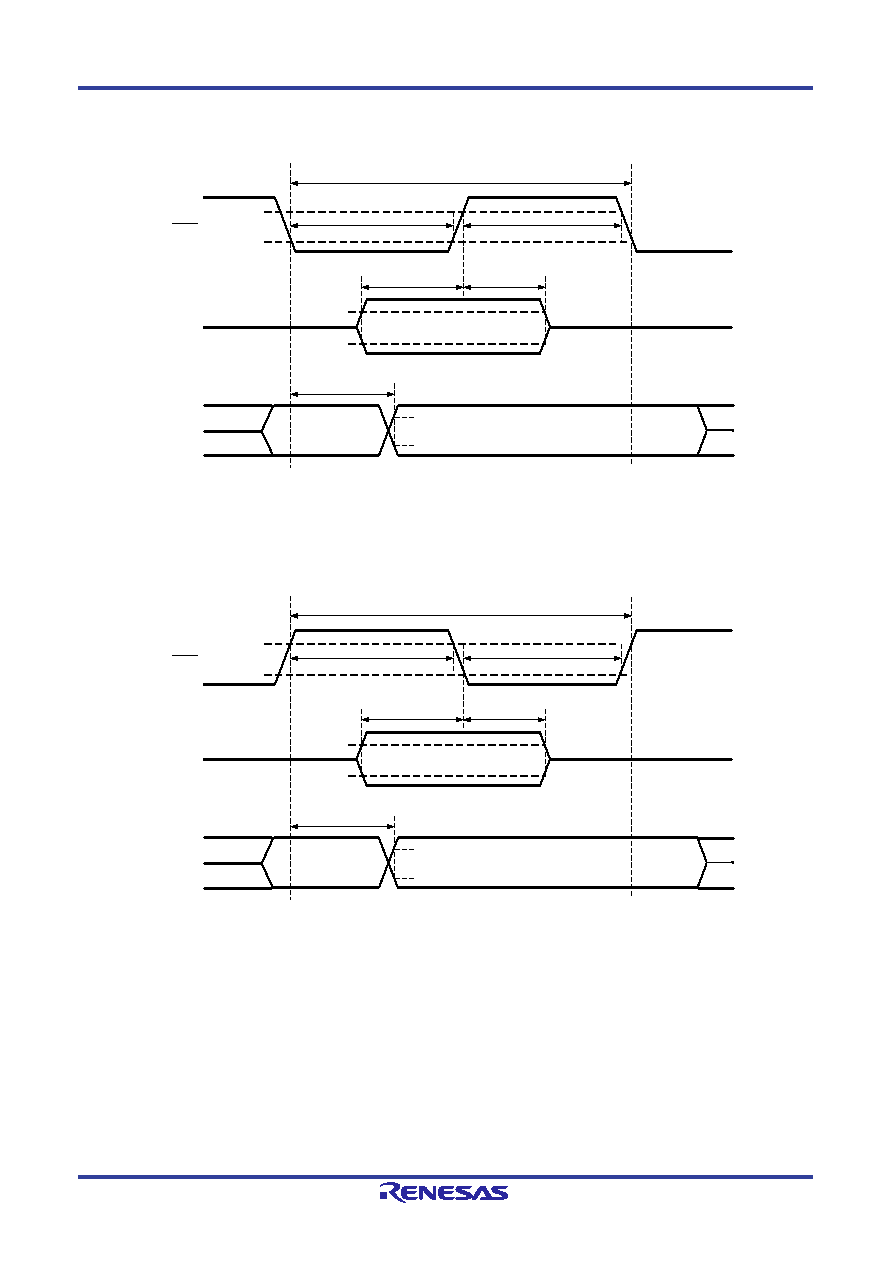

Figure 4-7. CSI mode serial transfer timing (When DAPmn = 0 and CKPmn = 0, or DAPmn = 1 and CKPmn = 1.)
tKCY1, 2
tKL1, 2
Input data
Output data
tSIK1, 2
tKSI1, 2
tKSO1, 2
SCK
SI
SO
VOH, VIH
VOL, VIL
VIH
VIL
tKH1, 2
VOH
VOL
Figure 4-8. CSI mode serial transfer timing (When DAPmn = 0 and CKPmn = 1, or DAPmn = 1 and CKPmn = 0.)
tKCY1, 2
tKH1, 2
Input data
Output data
tSIK1, 2
tKSI1, 2
tKSO1, 2
SCK
SI
SO
VOH, VIH
VOL, VIL
VIH
VIL
tKL1, 2
VOH
VOL
<R>
<R>
