DP40-R Fiches technique(PDF) 3 Page - Omega Engineering, Inc.

No de pièce DP40-R
Description  1⁄8 DIN High-Performance Meters Alarm/Control Capabilities Temperature, Process Voltage and Current, Strain Gage
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  OMEGA [Omega Engineering, Inc.]
Site Internet  https://www.omega.com/en-us/
Logo OMEGA - Omega Engineering, Inc.

DP40-R Fiches technique(HTML) 3 Page - Omega Engineering, Inc.

  DP40-R Datasheet HTML 1Page - Omega Engineering, Inc. DP40-R Datasheet HTML 2Page - Omega Engineering, Inc. DP40-R Datasheet HTML 3Page - Omega Engineering, Inc. DP40-R Datasheet HTML 4Page - Omega Engineering, Inc. DP40-R Datasheet HTML 5Page - Omega Engineering, Inc.
Zoom Inzoom in Zoom Outzoom out
 3 / 5 page
background image

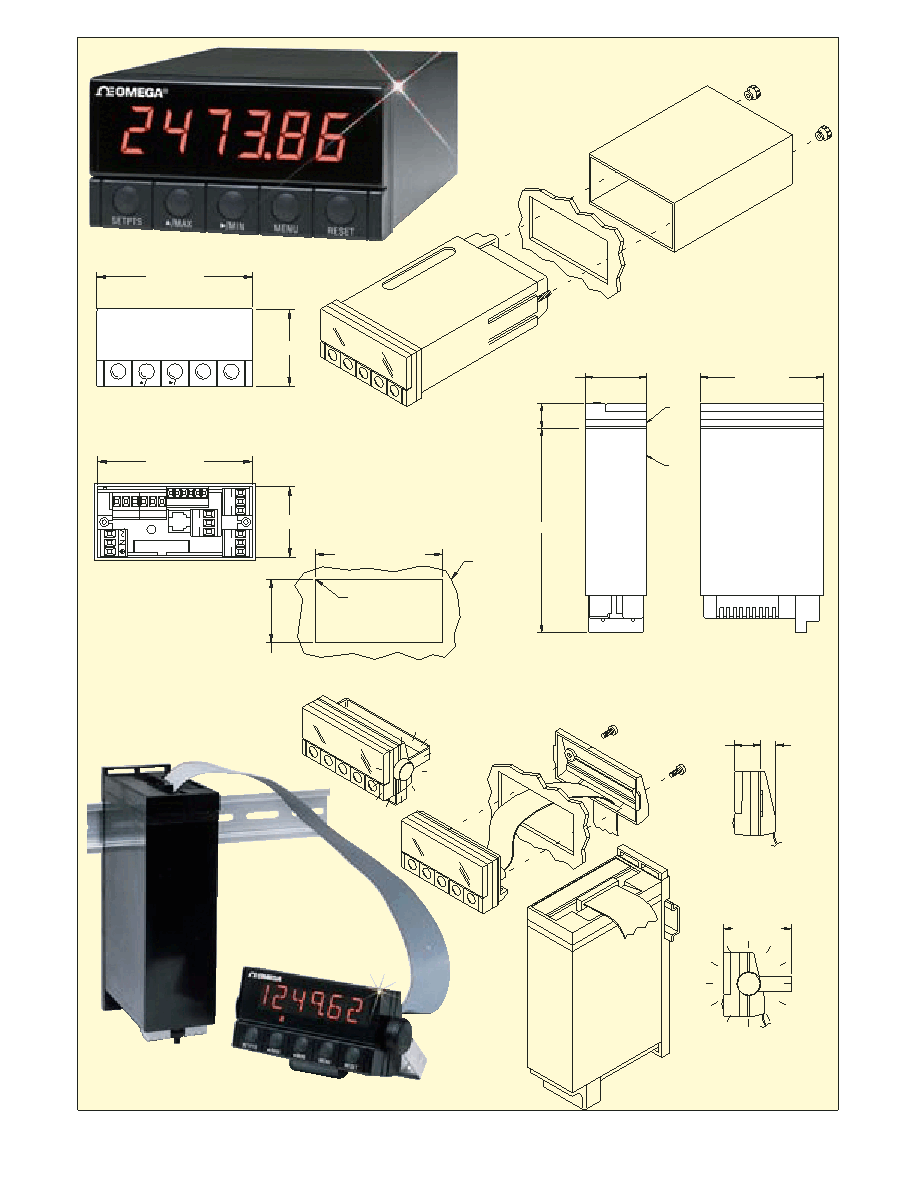

M-33
DP41Z-E, shown
smaller than actual size.
DP41-S,
shown smaller than
actual size.
RESET
MENU
MIN
MAX
SETPTS
96.0 (3.78)
48.0 (1.89)
TYP
REAR VIEW
TYP
FRONT VIEW
92.0 (3.62)
45.0 (1.77)
P5
P18
P7
P6
J4
P9
P3
P2
P1
1/8 DIN
20.3 (0.80)
15.9 (0.63)
THROUGH PANEL MOUNT
SURFACE MOUNT
SIDE VIEW
SIDE VIEW OF
61.0 (2.40)
(3.622 +.032/-.000)
92.00 +0.81/-0.00
(1.772 +.024/-.000)
45.00 +0.61/-0.00
PANEL THICKNESS
6.4 (0.25) MAX
0.8 (0.03) MIN
PANEL CUTOUT
R 0.06 (1.6)
4 PLCS
155.8 (6.13) MAX
20.3 (0.80)
48.00 (1.890)
96.00 (3.78)
CASE
SLEEVE
TOP VIEW
WITH T/C COVER
WITH T/C COVER
SIDE VIEW
Dimensions:
