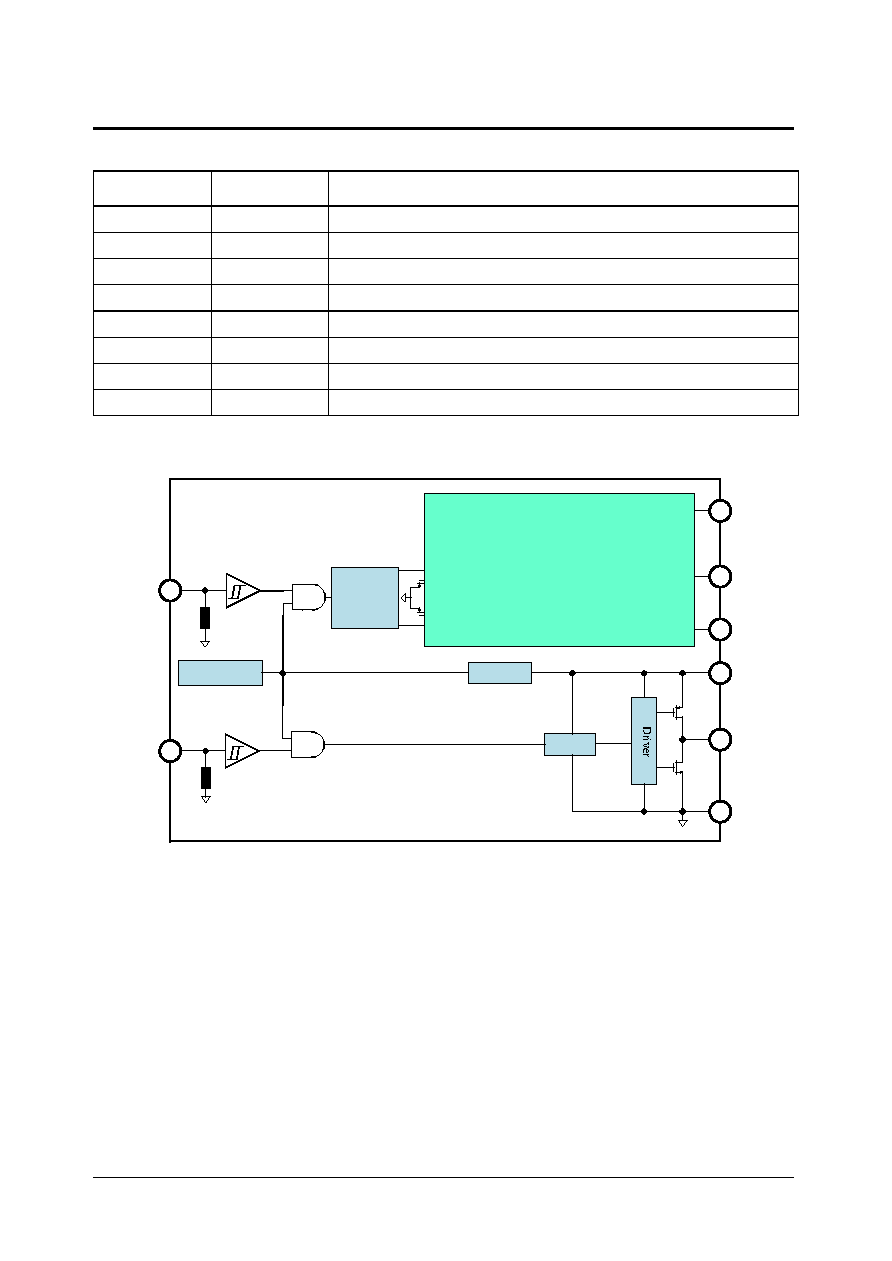

background image
ID2006
Chipown
www.chipown.com
Wuxi Chipown Microelectronics Limited
Rev.1.0
2/7
Pin Definitions
Pin Name
Pin Number
Pin Function Description
VCC
1
Low side and main power supply
HIN
2
Logic input for high side gate driver output (HO)
LIN
3
Logic input for low side gate driver output (LO)
COM
4
Ground
LO
5
Low side gate drive output, out of phase with LIN
VS
6
High side floating supply return or bootstrap return
HO
7
High side gate drive output, in phase with HIN
VB
8
High side floating supply
Block Diagram
UVLO
Delay
Pulse
Generator
Noise
filter
R R
S
Q
UVLO
1
2
4
5
3
6
7
8
Dead Time
HIN
LIN
COM
LO
VCC
VS
HO
VB
