CY2303
Document #: 38-07249 Rev. *B
Page 5 of 7

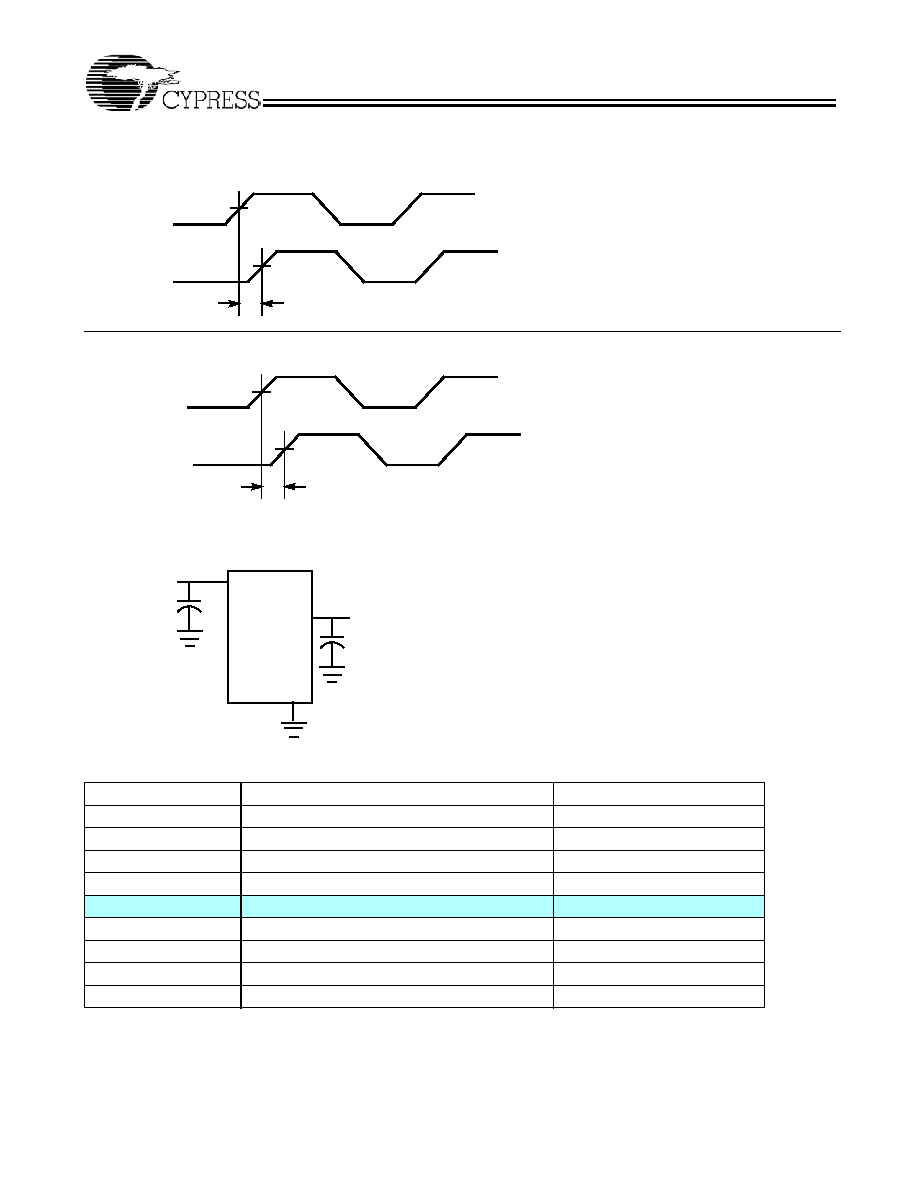

Test Circuits
Switching Waveforms (continued)
Input-Output Propagation Delay
VDD/2
t6
INPUT
FBK
VDD/2
VDD/2
t7
FBK, Device 1
FBK, Device 2
Device-Device Skew
VDD/2
0.1
µF
V
DD
CLK OUT
C
LOAD
OUTPUTS
GND
Test Circuit # 1
Ordering Information
Ordering Code
Package Type
Operating Range
CY2303SC
8-Pin 150-mil SOIC
Commercial
CY2303SCT
8-Pin 150-mil SOIC - Tape and Reel
Commercial
CY2303SI
8-Pin 150-mil SOIC
Industrial
CY2303SIT
8-Pin 150-mil SOIC - Tape and Reel
Industrial
Lead-free
CY2303SXC
8-Pin 150-mil SOIC
Commercial
CY2303SXCT
8-Pin 150-mil SOIC - Tape and Reel
Commercial
CY2303SXI
8-Pin 150-mil SOIC
Industrial
CY2303SXIT
8-Pin 150-mil SOIC - Tape and Reel
Industrial
