LCDP1521 Fiches technique(PDF) 7 Page - STMicroelectronics

No de pièce LCDP1521
Description  DUAL LINE PROGRAMMABLE TRANSIENT VOLTAGE SUPPRESSOR FOR SLIC PROTECTION
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  STMICROELECTRONICS [STMicroelectronics]
Site Internet  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

LCDP1521 Fiches technique(HTML) 7 Page - STMicroelectronics

  LCDP1521 Datasheet HTML 1Page - STMicroelectronics LCDP1521 Datasheet HTML 2Page - STMicroelectronics LCDP1521 Datasheet HTML 3Page - STMicroelectronics LCDP1521 Datasheet HTML 4Page - STMicroelectronics LCDP1521 Datasheet HTML 5Page - STMicroelectronics LCDP1521 Datasheet HTML 6Page - STMicroelectronics LCDP1521 Datasheet HTML 7Page - STMicroelectronics LCDP1521 Datasheet HTML 8Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out
 7 / 8 page
background image

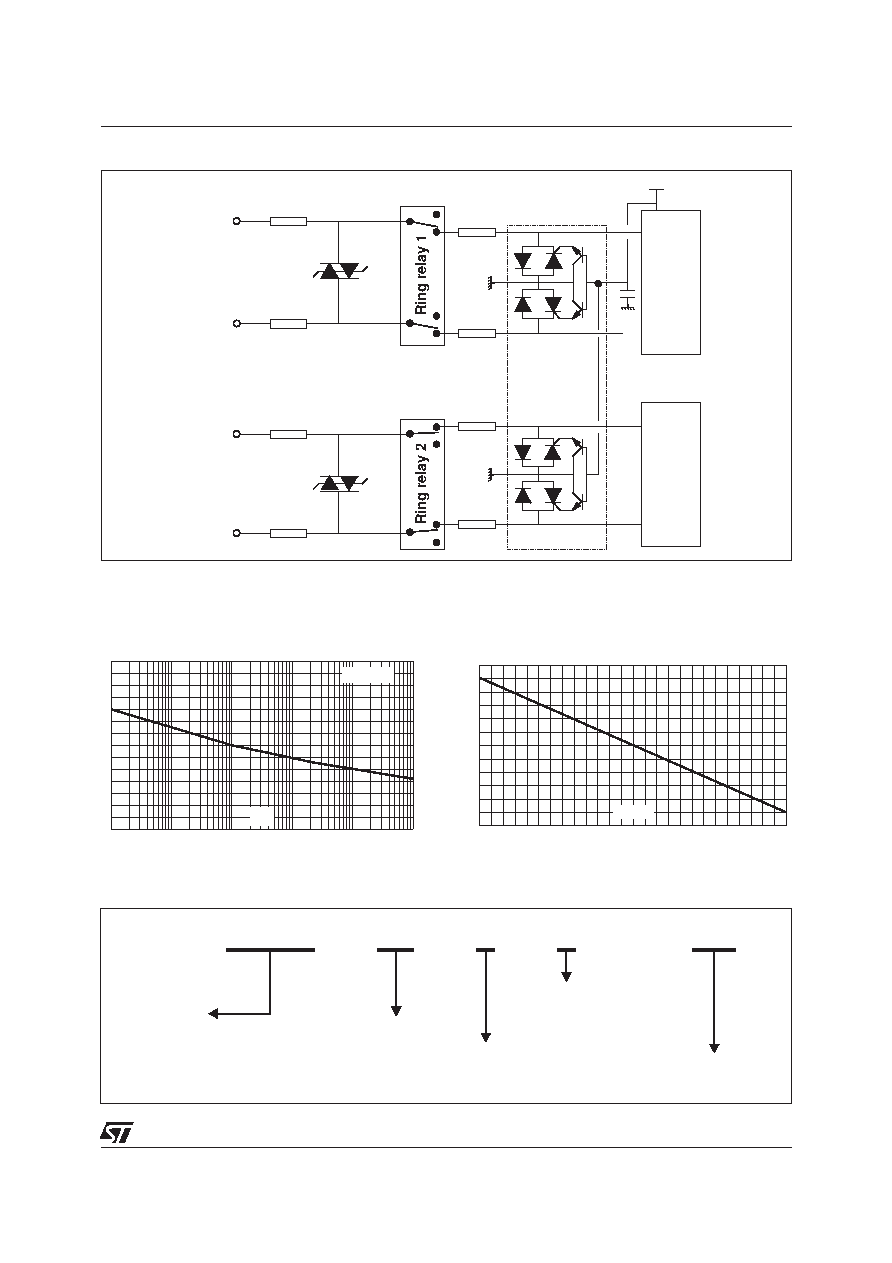

LCDP1521
7/8
0.01
0.10
1.00
10.00
100.00
1000.00
0
1
2
3
4
5
6
7
t(s)
ITSM(A)
F=50Hz
Tj initial=25°C
Fig. 1: Surge peak current versus overload dura-
tion.
-40
-30
-20
-10
0
1020
30405060708090
0.7
0.8
0.9
1
1.1
1.2
1.3
Tj ( °C )
IH ( Tj ) / IH ( Tj=25°C )
Fig. 2: Relative variation of holding current versus
junction temperature
LCDP
15
2
1
RL
LINE CARD
DUAL PROTECTION
I = 150 mA
H
VERSION
PACKAGE
1 : SO-8
RL : Tape & Reel
: Tube
ORDER CODE
LCDPxxxx
SLIC 1
-Vbat
PTC or Fuse
PTC or Fuse
R
R
Line 1
PTC or Fuse
PTC or Fuse
Line 2
RING
TIP
SLIC 2
R
R
Fig. A2: Protection of high voltage SLICs.
