Data Sheet
ADGM3121
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 13 of 33

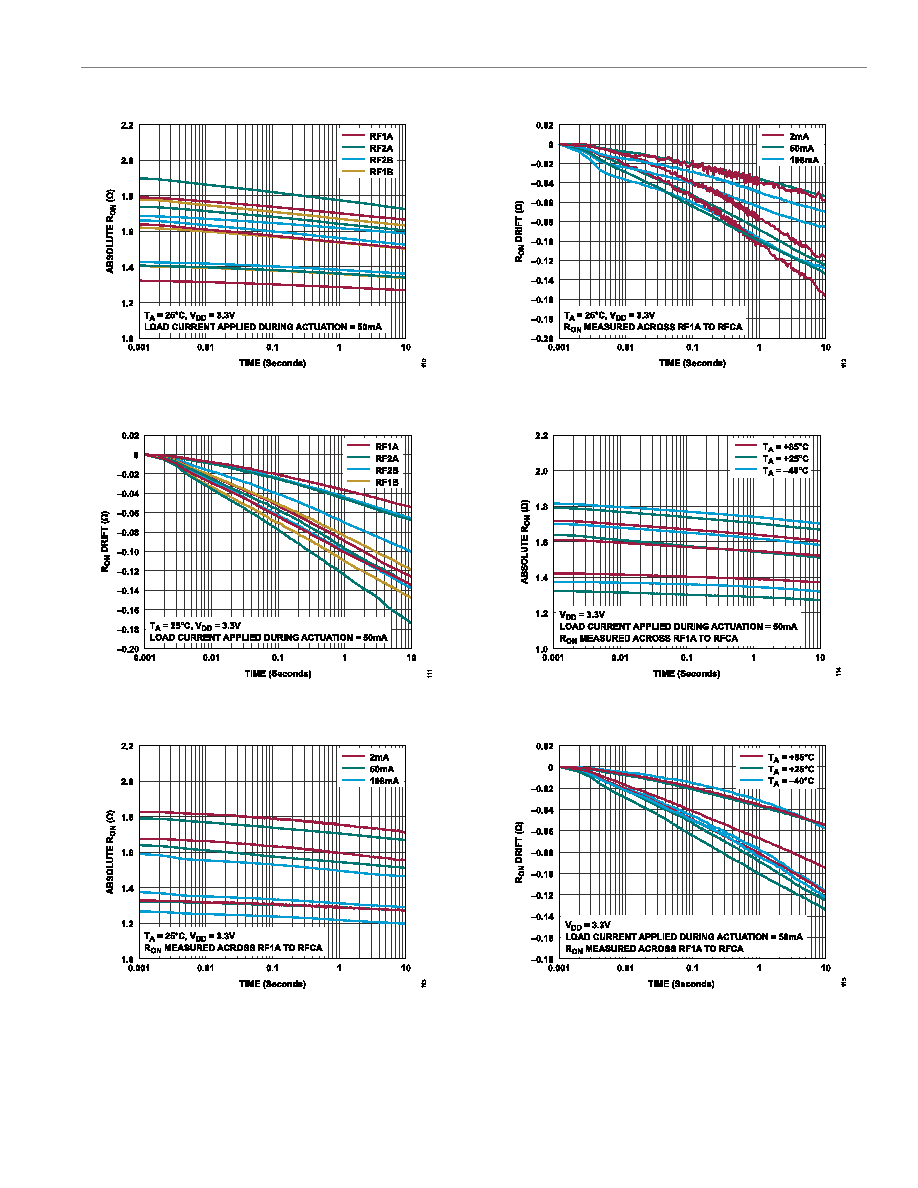

Figure 13. Absolute RON vs. Time (1ms to 10sec) over Different Channels,
Multiple Devices
Figure 14. RON Drift vs. Time (1ms to 10sec) over Different Channels, Multiple
Devices, Normalized at Zero
Figure 15. Absolute RON vs. Time (1ms to 10sec) over Different Current
Levels, Multiple Devices
Figure 16. RON Drift vs. Time (1ms to 10sec) over Different Current Levels,
Multiple Devices, Normalized at Zero
Figure 17. Absolute RON vs. Time (1ms to 10sec) over Temperature, Multiple
Devices
Figure 18. RON Drift vs. Time (1ms to 10sec) over Temperature, Multiple
Devices, Normalized at Zero
