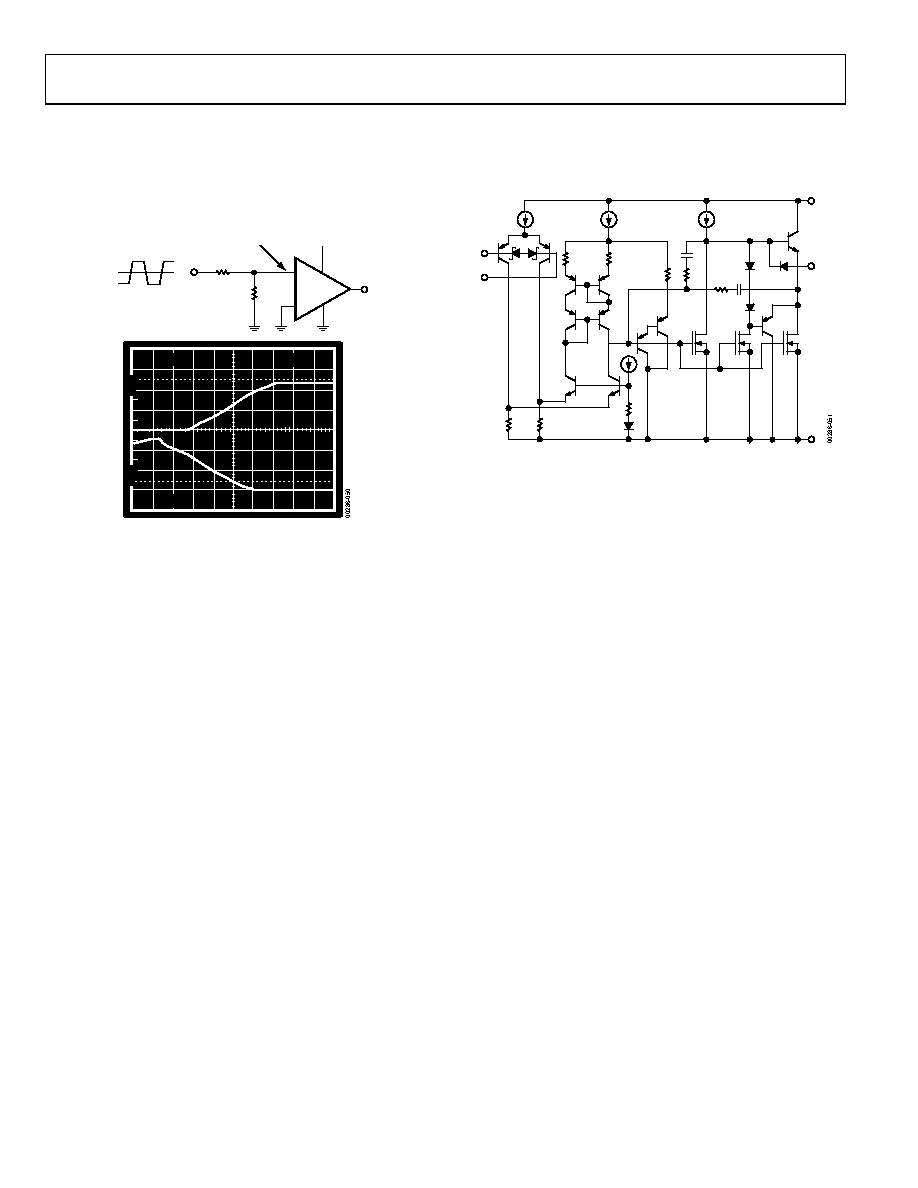

18 / 24 page  OP113/OP213/OP413 Rev. F | Page 18 of 24 Figure 51 shows the OPx13 family response to a 10 mV overdrive signal when operating in open loop. The top trace shows the output rising edge has a 15 μs propagation delay, whereas the bottom trace shows a 7 μs delay on the output falling edge. This ac response is quite acceptable in many applications. 5V 0V –2.5V +2.5V ±10mV OVERDRIVE 1/2 OP113 10 90 100 0% 2V 2V + – 100Ω 25kΩ tr = tf = 5ms 5µs Figure 51. Precision Comparator The low noise and 250 μV (maximum) offset voltage enhance the overall dc accuracy of this type of comparator. Note that zero- crossing detectors and similar ground referred comparisons can be implemented even if the input swings to −0.3 V below ground. 9V +IN –IN OUT 9V Figure 52. OP213 Simplified Schematic |
|
