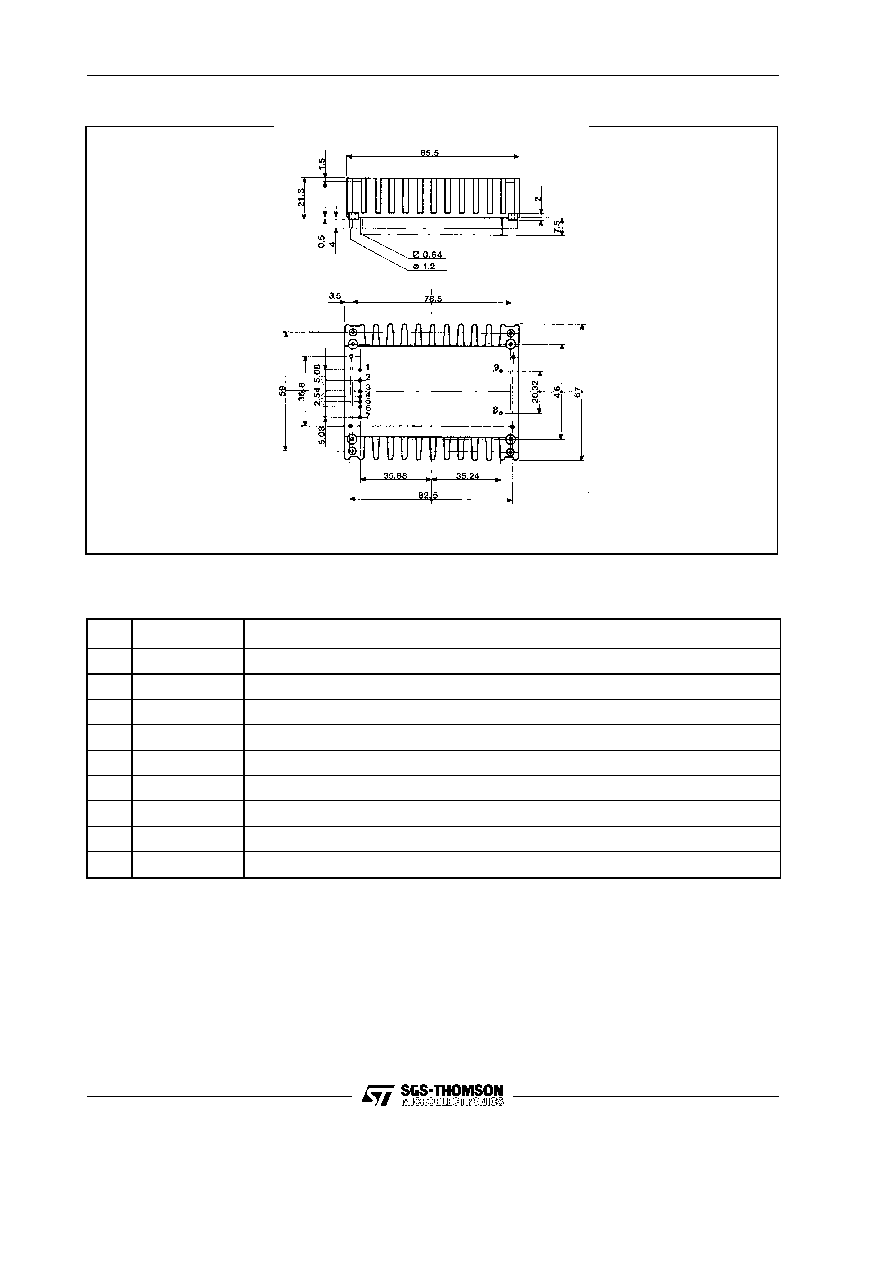

3 / 5 page ![]() 3/5 CONNECTION DIAGRAM AND MECHANICAL DATA Dimensions in mm Bottom view PIN DESCRIPTION Pin Function Description 1 Output 1 Regulated 5.1V output. 2 Output GND Return for output1 current path. Internally connected to pin 8. 3 Output 2 Regulated 12V output. 4 Ground 2 Return of output 3 current path. 5 Output 3 Regulated 12V output. 6 Ground 3 Return of output 3 current path. 7 Reset Open collector Reset output. 8 Input GND Return of input voltage source. Internally connected to pin 2. 9 + Input DC input voltage. Recommended maximum voltage is 40V. GS-R51212 |
|
|
