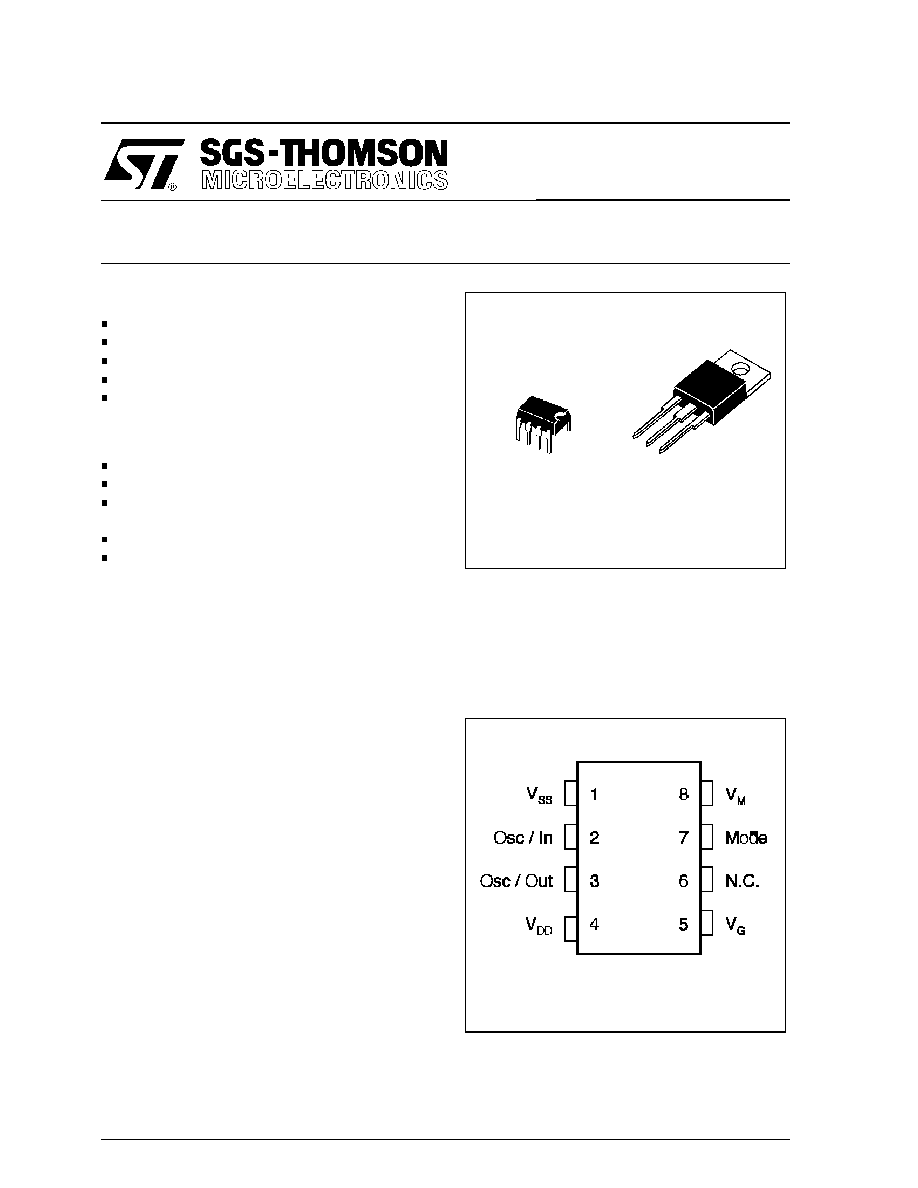

AUTOMATIC VOLTAGE SWITCH (SMPS < 200W)

CONTROLLER

50/60Hz FULL COMPATIBILITY

INTEGRATED VOLTAGE REGULATOR

TRIGGERING PULSE TRAIN OF THE TRIAC

PARASITIC FILTER

LOW POWER CONSUMPTION

TRIAC

HIGH EFFICIENCY AND SAFETY SWITCHING

UNINSULATED PACKAGE : AVS08CB

INSULATED

PACKAGE

2500V(RMS):

AVS08CBI

VDRM = ± 500 V

IT(RMS) :5A

DESCRIPTION

The AVS08 kit is an automatic mains selector

(110/220V AC) to be used in SMPS < 200 W. It is

composed of 2 devices :

• The Controller is optimized for low consumption

and high security triggering of the triac. When

connected to VSS, the mode input activates an

additional option. If the main power drops from

220V to 110V, the triac control remains locked to

the 220V mode and avoids any high voltage spike

when the voltage is restored to 220V.

When connected to VDD, the mode input desacti-

vates this option.

• The TRIAC is specially designed for this applica-

tion. An optimization between sensitivity and dy-

namic parameters of the triac gate highly reduces

the losses of supply resistor and allows excellent

immunity against disturbances.

P

DIP8

(Plastic)

B

TO220AB

(Plastic)

A1

A2

G

AVS08

March1995

PIN CONNECTION

1/7
