BP 104 F, BP 104 FS

2001-02-21

5

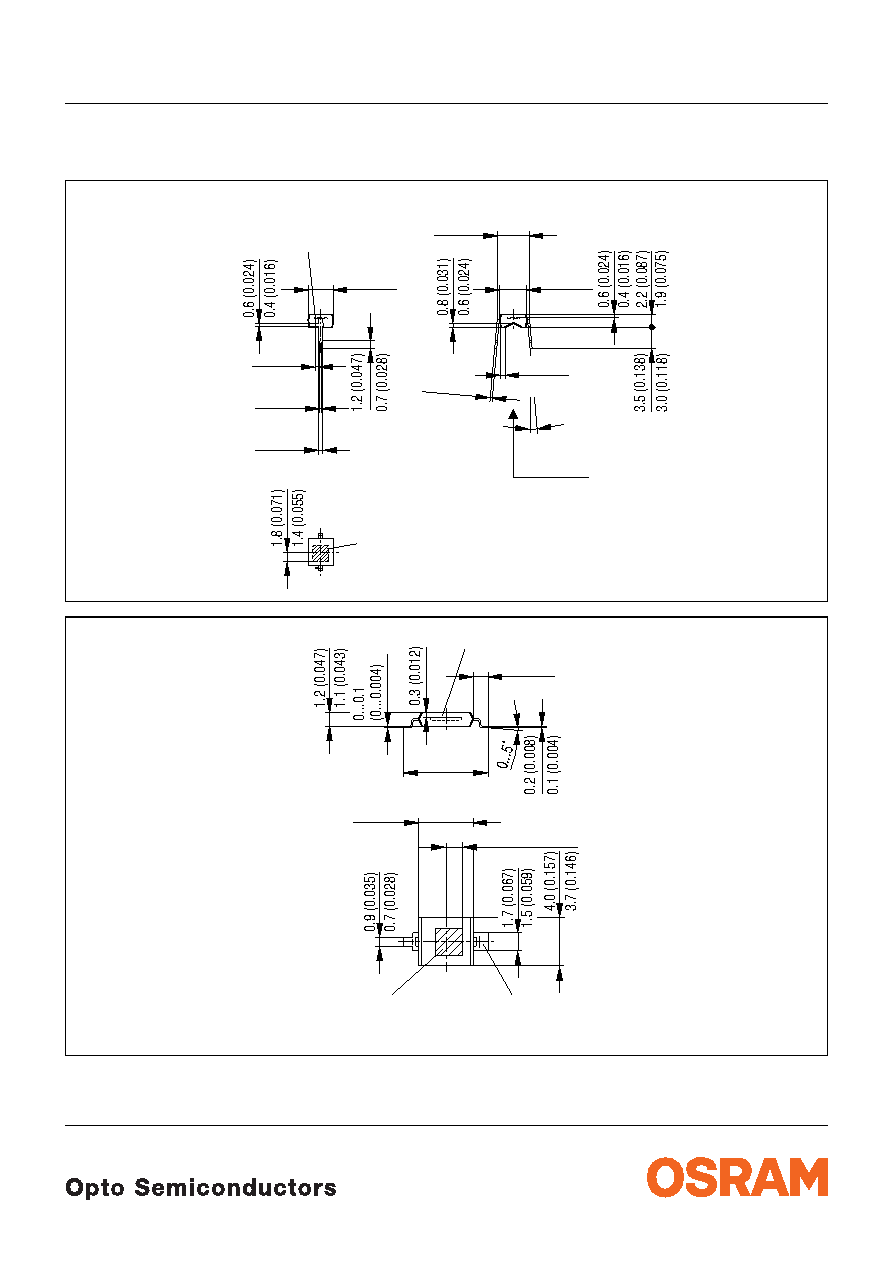

Maßzeichnung

Package Outlines

Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).

GEOY6075

4.0 (0.157)

3.7 (0.146)

4.3 (0.169)

4.5 (0.177)

5.4 (0.213)

4.9 (0.193)

0.6 (0.024)

0.4 (0.016)

0.3 (0.012)

0.5 (0.020)

0.8 (0.031)

0.6 (0.024)

Cathode marking

Chip position

0.4 (0.016)

0.6 (0.024)

0.35 (0.014)

0.2 (0.008)

0 ... 5˚

5.08 (0.200)

spacing

Photosensitive area

2.20 (0.087) x 2.20 (0.087)

BP 104 F

4.5 (0.177)

4.3 (0.169)

Photosensitive area

Cathode lead

GEOY6861

6.7 (0.264)

6.2 (0.244)

Chip position

1.1 (0.043)

0.9 (0.035)

2.20 (0.087) x 2.20 (0.087)

BP 104 FS
