 3 / 33 page
background image
Copyright © Future Technology Devices International Limited
3
FT600Q-FT601Q IC DatasheetDatasheet
Version 1.04
Document No.: FT_001118
Clearance No.: FTDI#424
2

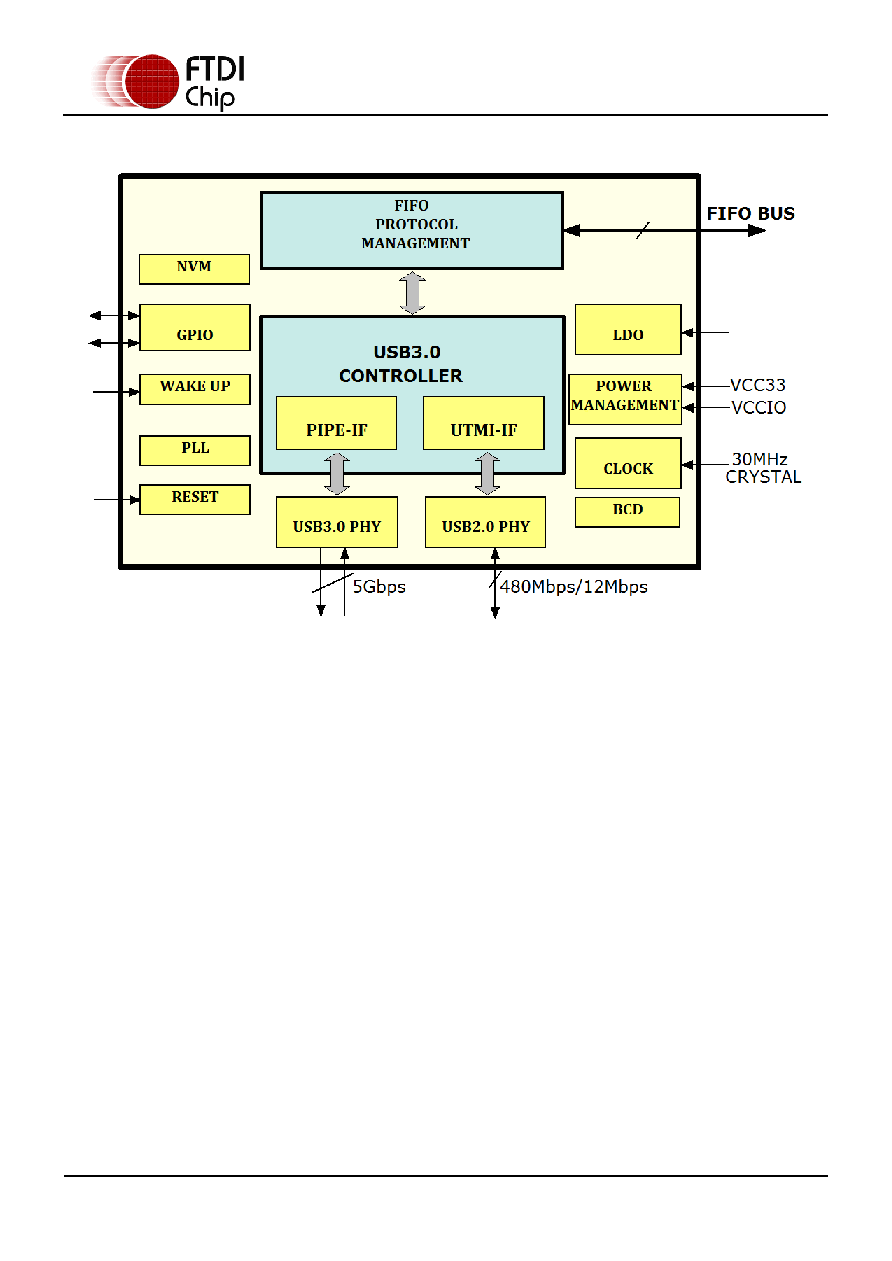

Block Diagram
Figure 2.1 Block Diagram
Notes: FT600Q(QFN-56) has a 16-bit FIFO bus interface and FT601Q(QFN-76) has a 32-bit FIFO bus
interface.
For a description of each function please refer to Section 4.
