Data Sheet
ADBMS1818

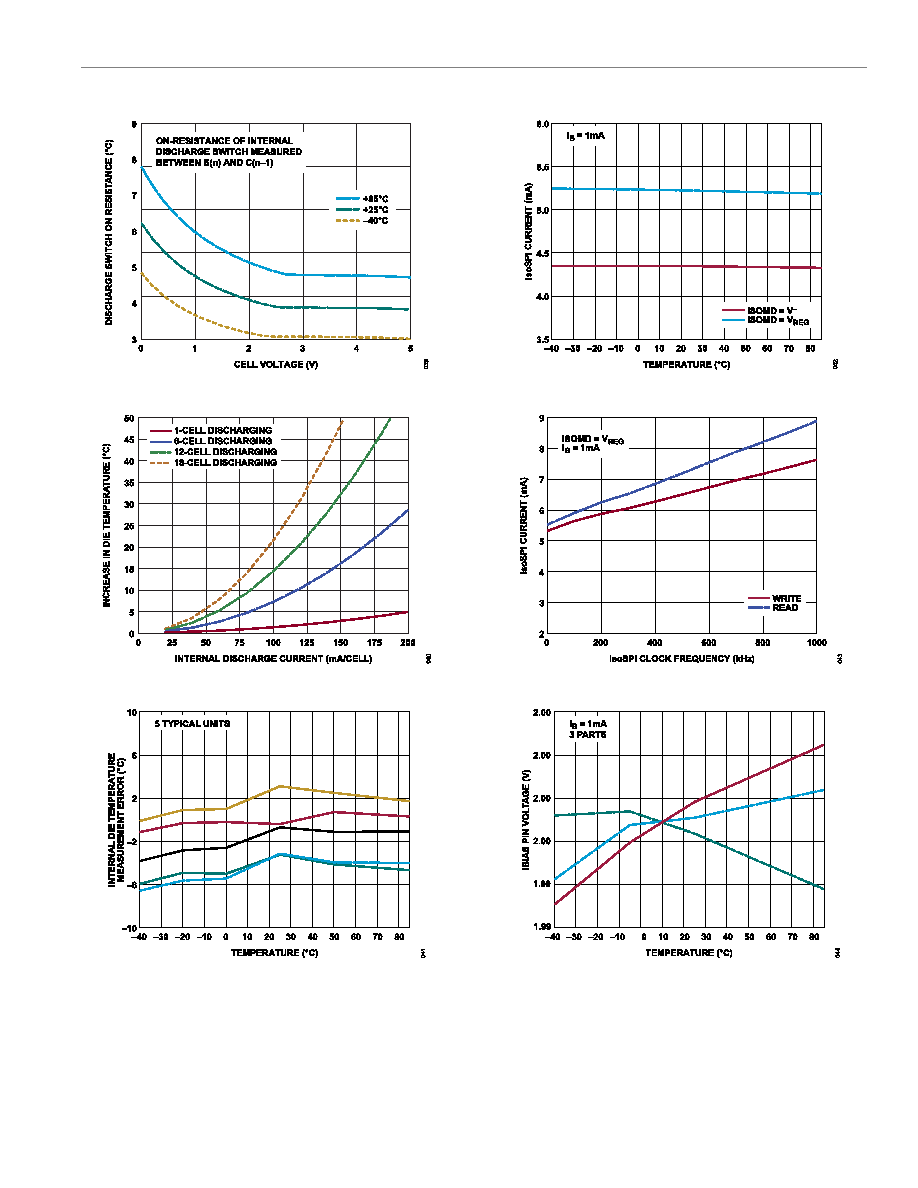

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 20 of 92
Figure 39. Discharge Switch On Resistance vs. Cell Voltage
Figure 40. Increase in Die Temperature vs. Internal Discharge Current
Figure 41. Internal Die Temperature Measurement Error vs. Temperature
Figure 42. isoSPI Current (Ready) vs. Temperature
Figure 43. isoSPI Current (Active) vs. isoSPI Clock Frequency
Figure 44. IBIAS Pin Voltage vs. Temperature
