Data Sheet

ADL5309

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. A | 7 of 25

VCC = 3.0 V, TA = 25°C, input current (IINP) = 10 nA, and default register settings, unless otherwise noted.

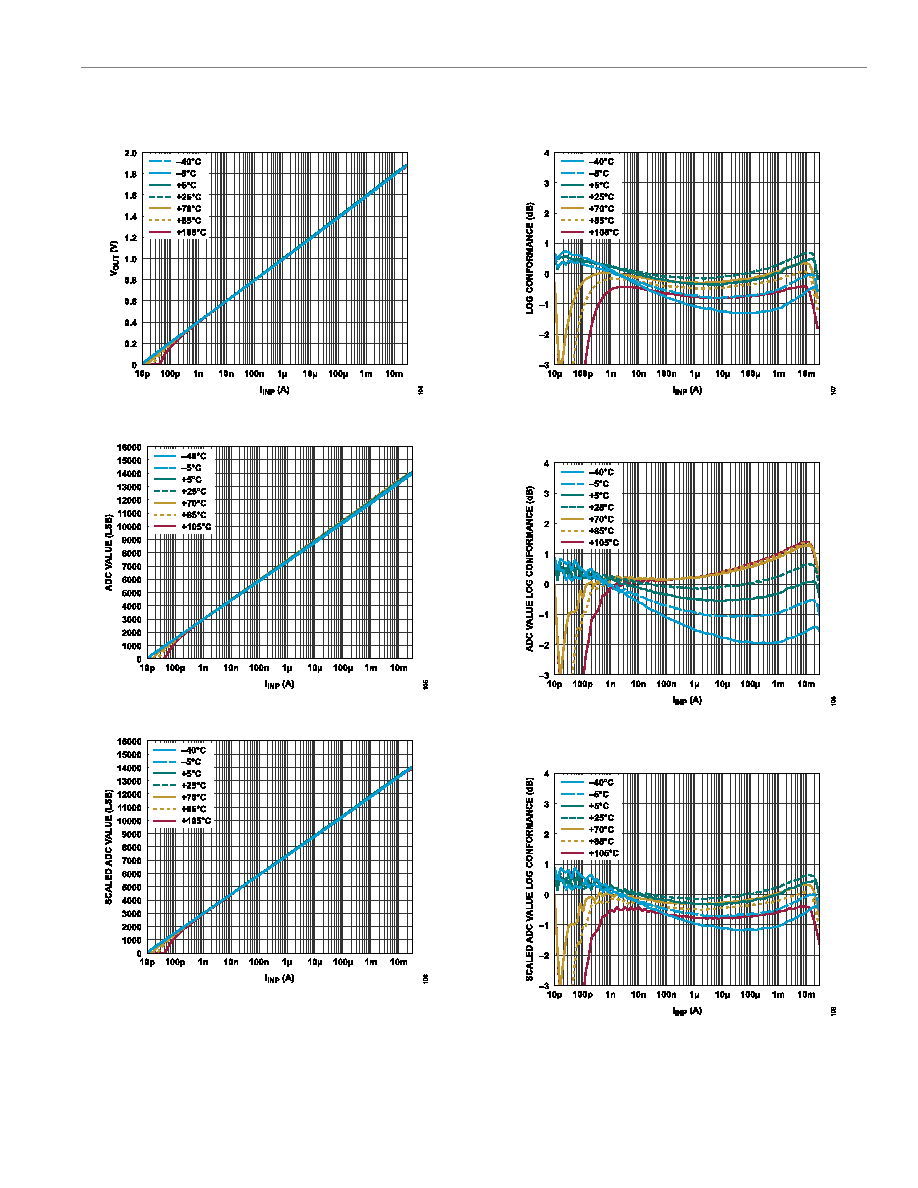

Figure 4. VOUT vs. IINP for Multiple Temperatures

Figure 5. ADC Value vs. IINP for Multiple Temperatures

Figure 6. Scaled ADC Value vs. IINP for Multiple Temperatures with ADCREF =

2.000 V

Figure 7. Logarithmic (Log) Conformance vs. IINP for Multiple Temperatures,

Normalized to 25°C

Figure 8. ADC Value Logarithmic Conformance vs. IINP for Multiple

Temperatures, Normalized to 25°C

Figure 9. Scaled ADC Value Logarithmic Conformance vs. IINP for Multiple

Temperatures with ADCREF = 2.000 V, Normalized to 25°C
