Data Sheet
ADL8113
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 32 of 37
EXTERNAL BYPASS B MODE

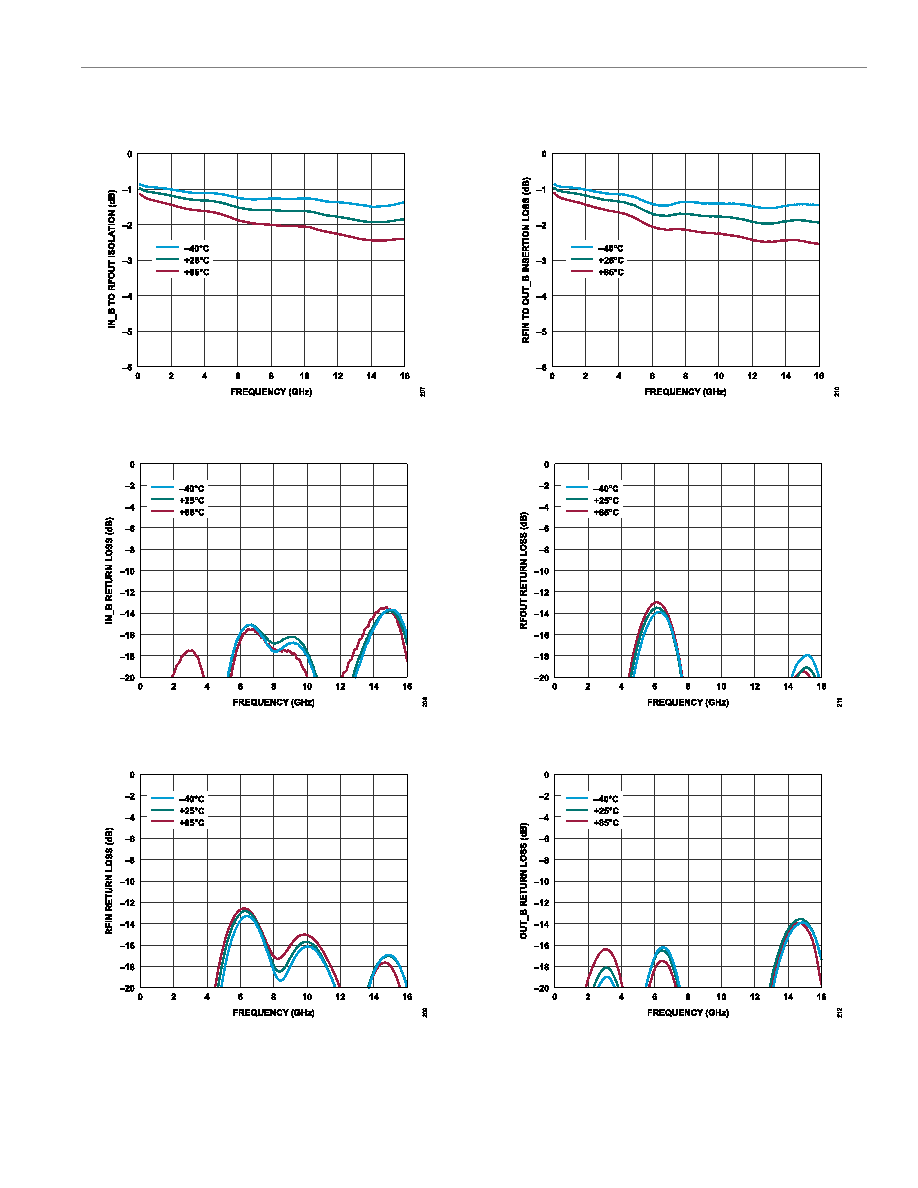

Figure 107. IN_B to RFOUT Isolation vs. Frequency for Various
Temperatures, 10MHz to 16GHz
Figure 108. IN_B Return Loss vs. Frequency for Various Temperatures,
10MHz to 16GHz
Figure 109. RFIN Return Loss vs. Frequency for Various Temperatures,
10MHz to 16GHz
Figure 110. RFIN to OUT_B Insertion Loss vs. Frequency for Various
Temperatures, 10MHz to 16GHz
Figure 111. RFOUT Return Loss vs. Frequency for Various Temperatures,
10MHz to 16GHz
Figure 112. OUT_B Return Loss vs. Frequency for Various Temperatures,
10MHz to 16GHz
