SE2582L
RangeCharger™ 2.4 GHz Power Amplifier with Power Detector
212-DST-01 Rev 1.2 Mar-27-2007
Confidential
5 of 8
QA032707
Power Detector
Conditions: VCC = VEN = 3.3 V, f = 2.45 GHz, TA = 25 °C, as measured on SiGe Semiconductor’s SE2582L-EV1
evaluation board, unless otherwise noted
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Unit
PDR
POUT detect range
-
0
-
P1dB
dBm
VDET
Detector voltage
POUT = 20 dBm
-
0.8
-
V
VDET
Detector voltage
POUT = 17.5 dBm
-
0.65
-
V
VDET
Detector voltage
POUT = NO RF
-
0.3
-
V
PDZOUT
Output Impedance
-
250
-
700
Ω
PDZLOAD
DC load impedance
-
10
-
-
kΩ

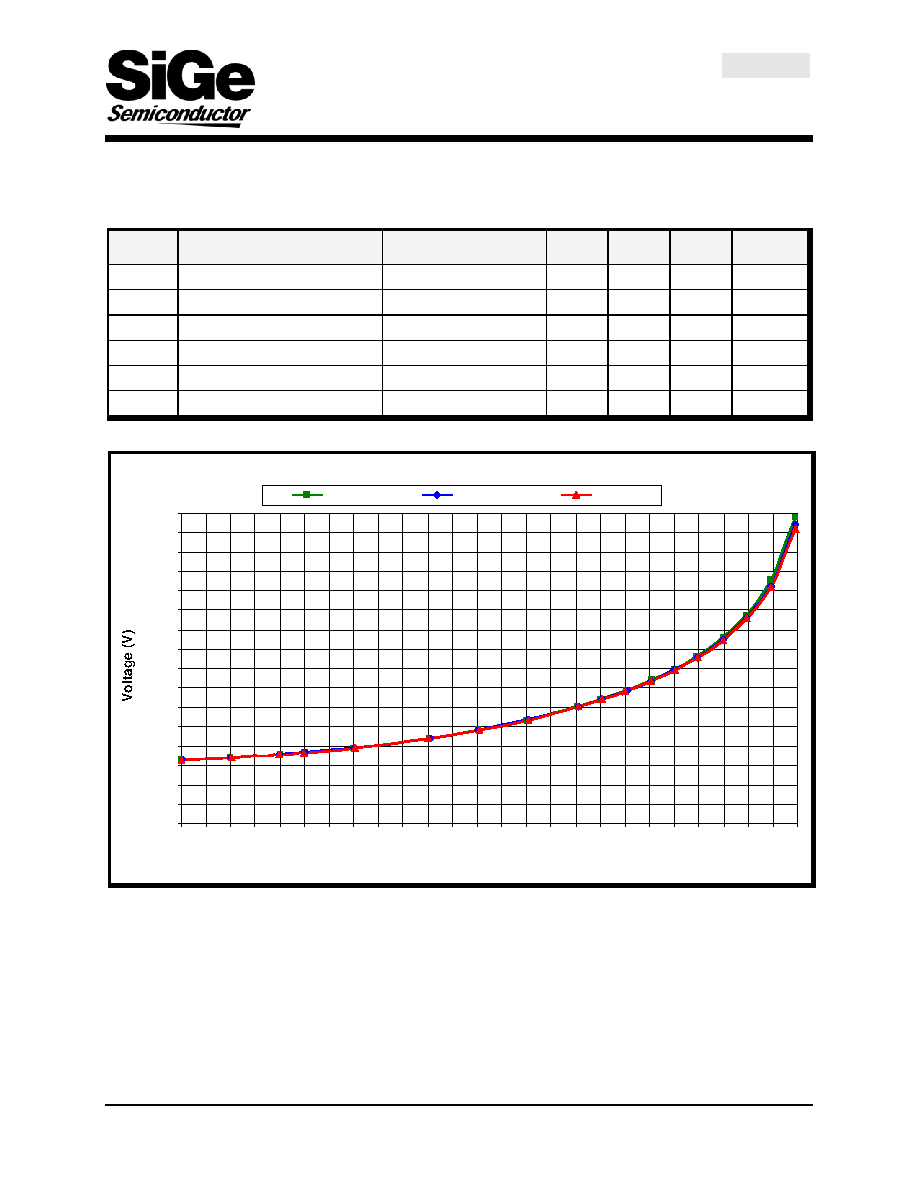

SE2582L Power Detector Characteristic
0.00
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
1.30
1.40
1.50
1.60
0123
456789
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
Output Power (dBm)
2.4GHz
2.45 GHz
2.5GHz
Figure 3: SE2582L Power Detector Characteristic over Frequency
