SDT400-R/H/S/TR

Rev 2.01 (07/29/2013)

001612

SDT400-R

DC Input

80V

Photo-Transistor Optocoupler

Figure 5: Collector Current (IC) vs. Collector-Emitter

Voltage (VCE)

Figure 6: Current Transfer Ratio (CTR) vs. Forward Current (IF)

Figure 2: Collector Power Dissipation (PC) vs. Temperature (°C)

Figure 3: Collector-Emitter Saturation Voltage (VCE(SAT)) vs.

Forward Current (IF)

Figure 4: Forward Current (IF) vs. Forward Voltage (VF)

Figure 1: Forward Current (IF) vs. Temperature (°C)

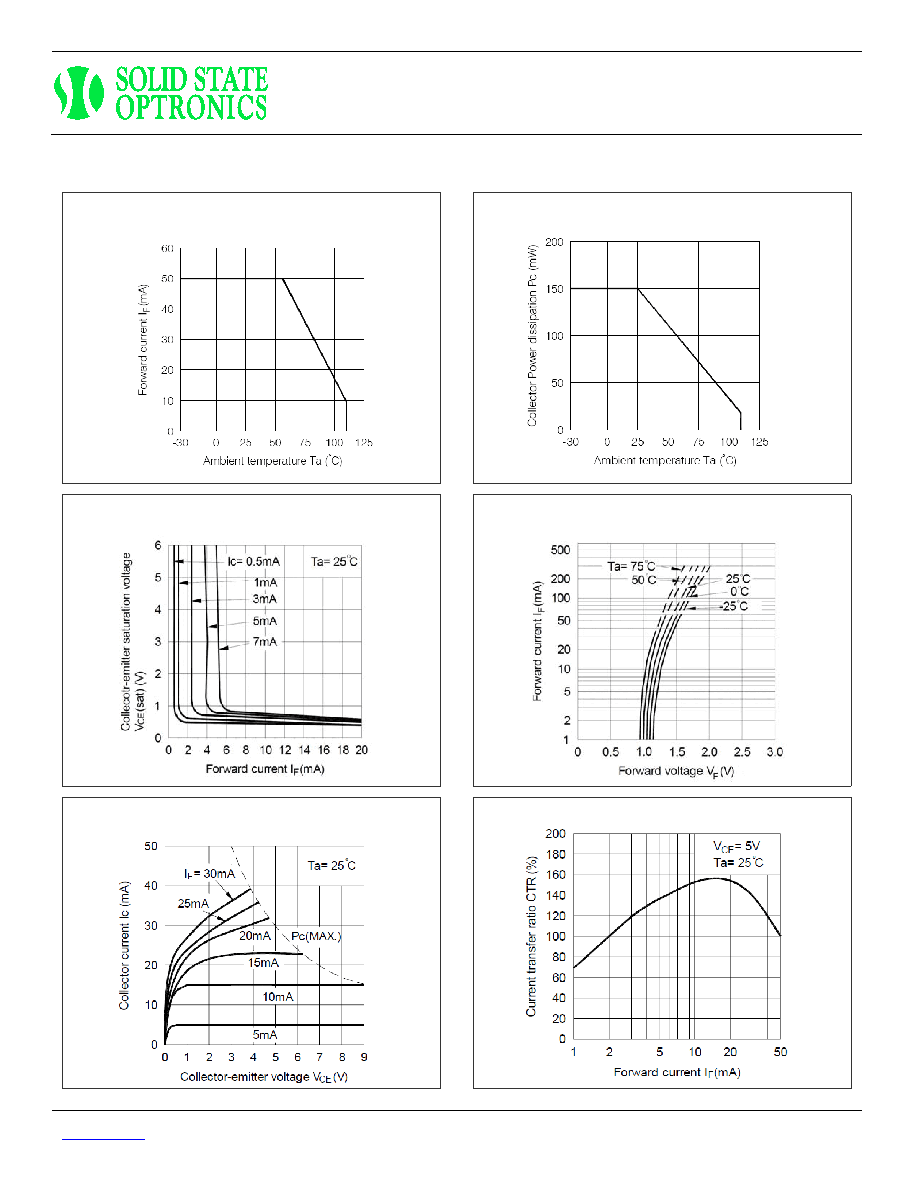

SDT400-R Performance & Characteristics Plots, TA = 25°C (unless otherwise specified)
