POWER INDUCTORS <SMD Type: CDMC Series>

Type: CDMC6D28

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2

7.25 Max.

4.4

1.3±0.3

0.01 Min.

3.0 Max.

1.3±0.3

①②

:Electrode

7.7

3.7

①

②

◆

Product Description

・

6.7×7.25mm Max. (L×W), 3.0mm Max. height.

・

Inductance range: 0.2～4.7μH

・

Rated Current Range: 3.7～17.4A

◆

Feature

・

Magnetically shielded construction.

・

Metal Powder Molded Type, Super high current inductors.

・

High Current Inductor for Server, Notebook PC ,CPU, etc, as DC-DC Converter inductors.

・

RoHS Compliance

◆

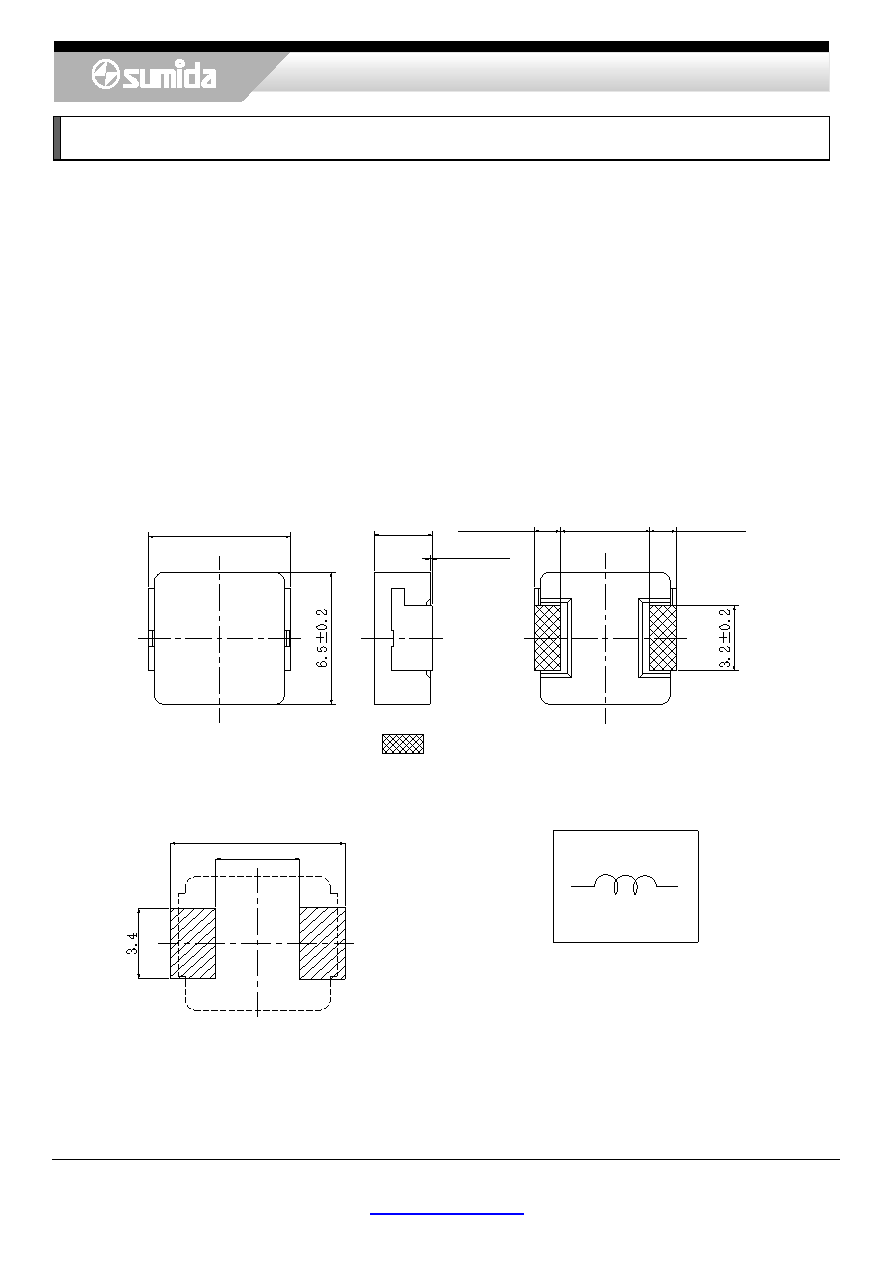

Dimensions (mm)

◆

Land Pattern (mm)

◆

Schematics (Bottom)
