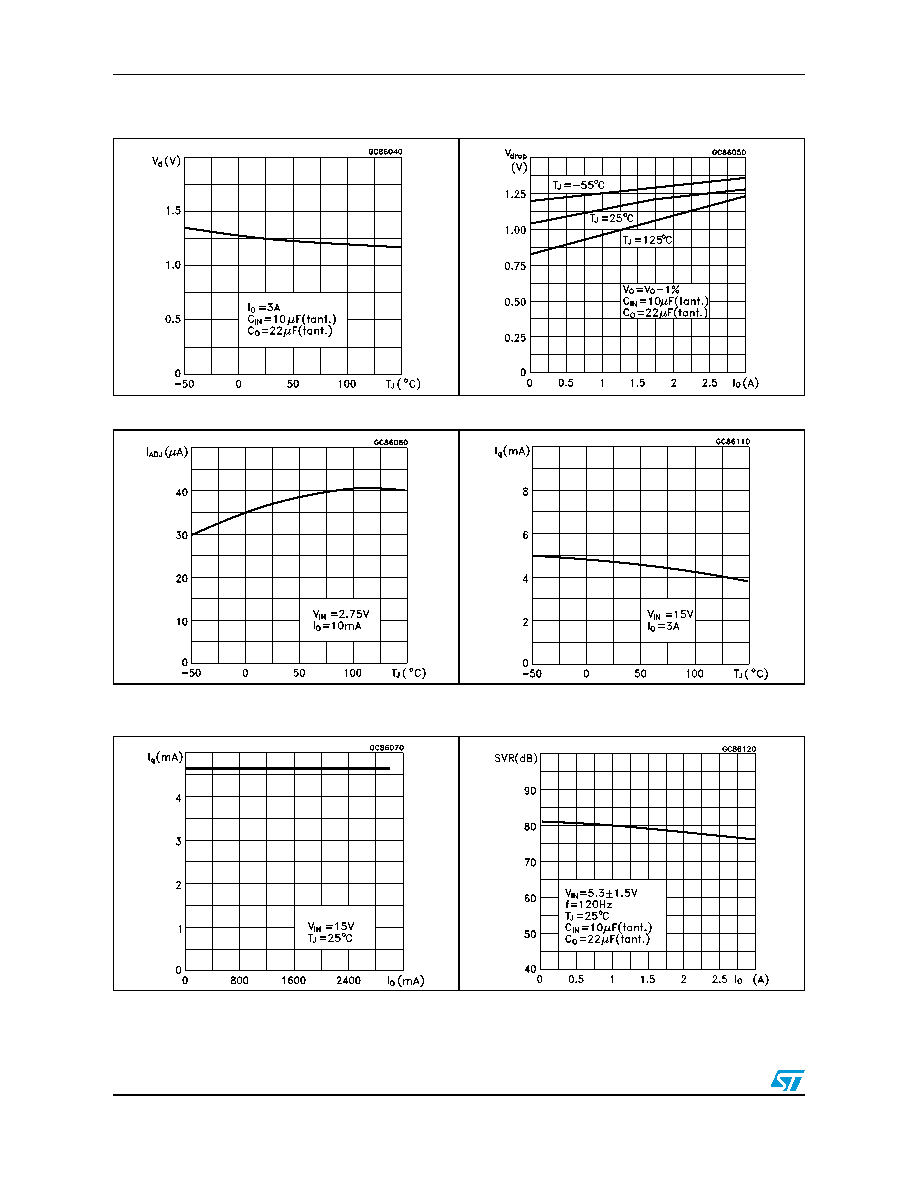

Typical application
LD1085 series
14/27
Figure 9.
Dropout voltage vs temperature
Figure 10.
Dropout voltage vs output current
Figure 11.
Adjust pin current vs temperature
Figure 12.
Quiescent current vs temperature
Figure 13.
Line regulation vs temperature
Figure 14.
Supply voltage rejection vs output
current
