TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. C | 8 of 22

VPOS = 3 V, TA = +25°C (black), +85°C (red), 0°C (green), and −40°C (dark blue) where appropriate. CFLT = open, unless otherwise noted.

Input RF signal is a sine wave (CW), unless otherwise indicated. Error referred to slope and intercept at indicated calibration points at 25°C.

Power referenced to 50 Ω source and with a 52.3 Ω shunt matching resistor on the board. Distribution plots based upon more than 50 devices.

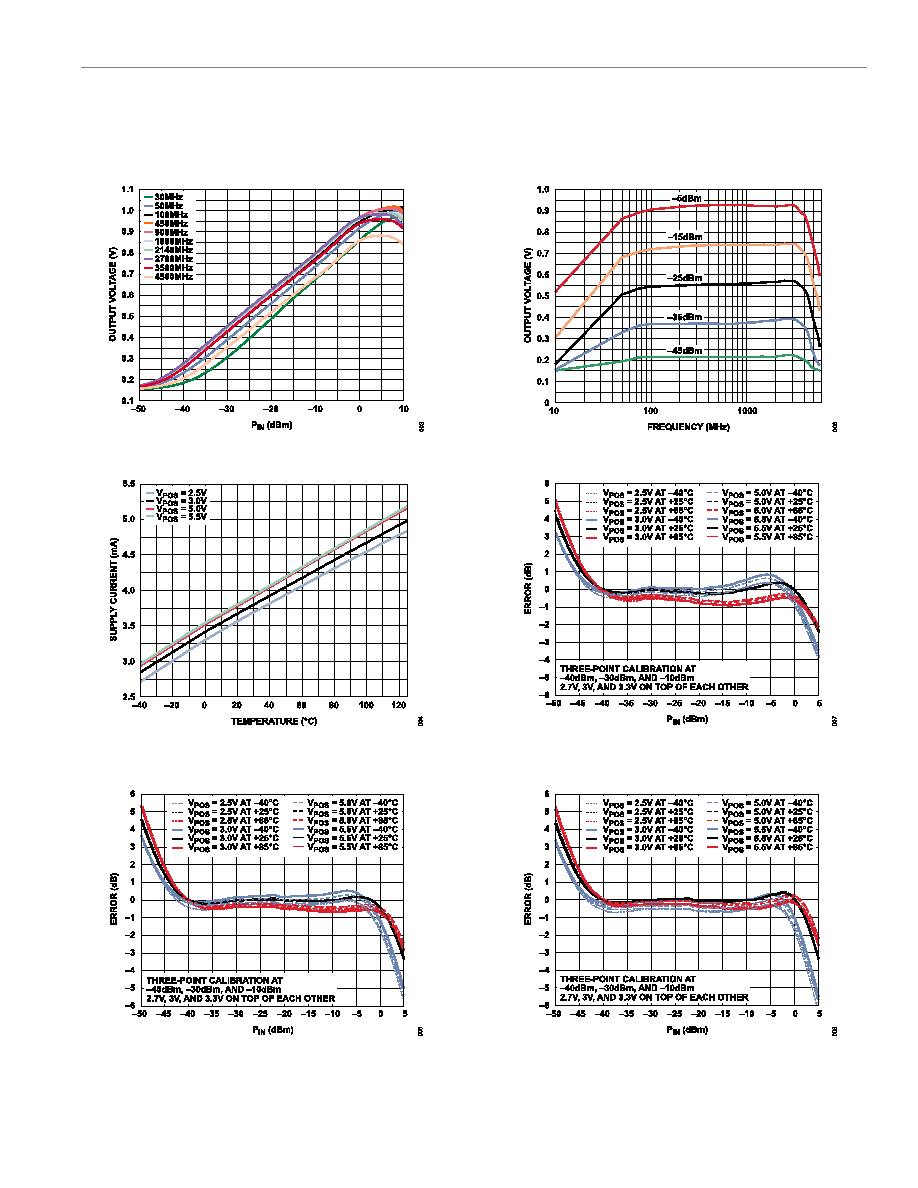

Figure 3. Typical VLOG vs. PIN over Frequency at 25°C

Figure 4. Quiescent Supply Current vs. Temperature, 2.5 V to 5.5 V Supply

Voltage

Figure 5. Log Conformance Error vs. PIN over Supply Voltage and

Temperature at 900 MHz

Figure 6. Typical VLOG vs. Frequency for Five RF Input Levels at 25°C

Figure 7. Log Conformance Error vs. PIN over Supply Voltage and

Temperature at 100 MHz

Figure 8. Log Conformance Error vs. PIN over Supply Voltage and

Temperature at 1900 MHz
