ADL5906ACPZN-R2 Fiches technique(PDF) 12 Page - Analog Devices

No de pièce ADL5906ACPZN-R2
Description  10 MHz to 10 GHz, 67 dB TruPwr Detector
PDF  30 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  AD [Analog Devices]
Site Internet  http://www.analog.com
Logo AD - Analog Devices

ADL5906ACPZN-R2 Fiches technique(HTML) 12 Page - Analog Devices

Back Button ADL5906ACPZN-R2 Datasheet HTML 8Page - Analog Devices ADL5906ACPZN-R2 Datasheet HTML 9Page - Analog Devices ADL5906ACPZN-R2 Datasheet HTML 10Page - Analog Devices ADL5906ACPZN-R2 Datasheet HTML 11Page - Analog Devices ADL5906ACPZN-R2 Datasheet HTML 12Page - Analog Devices ADL5906ACPZN-R2 Datasheet HTML 13Page - Analog Devices ADL5906ACPZN-R2 Datasheet HTML 14Page - Analog Devices ADL5906ACPZN-R2 Datasheet HTML 15Page - Analog Devices ADL5906ACPZN-R2 Datasheet HTML 16Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 12 / 30 page
background image
Data Sheet
ADL5906
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 12 of 30

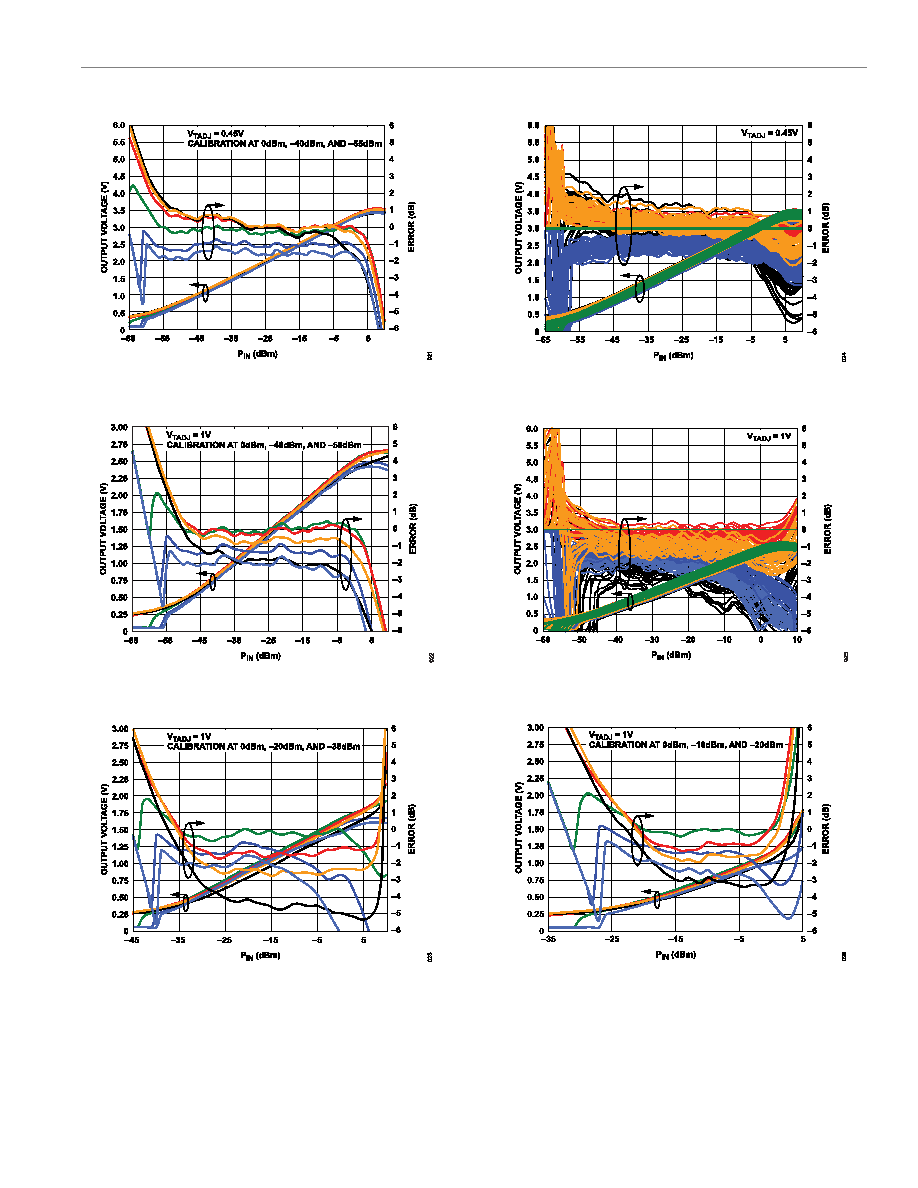

Figure 21. VRMS and Log Conformance Error vs. Input Level and Temperature
at 3.5 GHz
Figure 22. VRMS and Log Conformance Error vs. Input Level and Temperature
at 5.8 GHz
Figure 23. VRMS and Log Conformance Error vs. Input Level and Temperature
at 8 GHz
Figure 24. Distribution of Log Conformance Error with Respect to VRMS at
25°C vs. Input Level and Temperature at 3.5 GHz
Figure 25. Distribution of Log Conformance Error with Respect to VRMS at
25°C vs. Input Level and Temperature at 5.8 GHz
Figure 26. VRMS and Log Conformance Error vs. Input Level and Temperature
at 10 GHz
