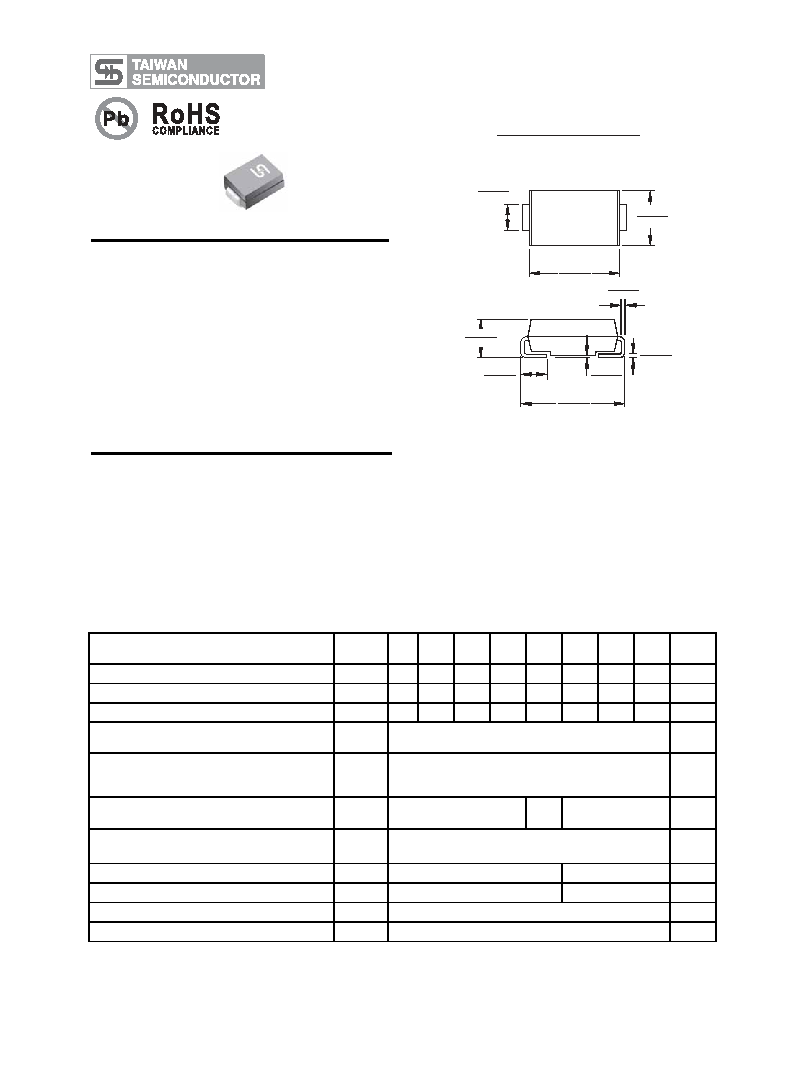

1 / 2 page

Dimensions in inches and (millimeters)

Version: A06

HS3AB - HS3MB

3.0 AMPS. High Efficient Surface Mount Rectifiers

SMB/DO-214AA

.083(2.10)

.077(1.95)

.012(.31)

.006(.15)

.012(.31)

.006(.15)

.008(.20)

.004(.10)

.056(1.41)

.035(0.90)

.147(3.73)

.137(3.48)

.187(4.75)

.167(4.25)

.103(2.61)

.078(1.99)

.209(5.30)

.201(5.10)

Features

Glass passivated junction chip.

For surface mounted application

Low forward voltage drop

Low profile package

Built-in stain relief, ideal for automatic

placement

Fast switching for high efficiency

High temperature soldering:

260oC/10 seconds at terminals

Plastic material used carries Underwriters

Laboratory Classification 94V0

Mechanical Data

Cases: Molded plastic

Terminals: Pure tin plated, lead free

Polarity: Indicated by cathode band

Packing: 16mm tape per EIA STD RS-481

Weight: 0.21 gram

Maximum Ratings and Electrical Characteristics

Rating at 25 oC ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Type Number

Symbol HS

3AB

HS

3BB

HS

3DB

HS

3FB

HS

3GB

HS

3JB

HS

3KB

HS

3MB

Units

Maximum Recurrent Peak Reverse Voltage

VRRM

50

100

200

300

400

600

800 1000

V

Maximum RMS Voltage

VRMS

35

70

140

210

280

420

560

700

V

Maximum DC Blocking Voltage

VDC

50

100

200

300

400

600

800 1000

V

Maximum Average Forward Rectified Current

See Fig. 1

I(AV)

3.0

A

Peak Forward Surge Current, 8.3 ms Single

Half Sine-wave Superimposed on Rated

Load (JEDEC method )

IFSM

150

A

Maximum Instantaneous Forward Voltage

@ 3.0A

VF

1.0

1.3

1.7

V

Maximum DC Reverse Current @ TA =25

oC

at Rated DC Blocking Voltage @ TA=125

oC

IR

10

250

uA

Maximum Reverse Recovery Time ( Note 1 )

Trr

50

75

nS

Typical Junction Capacitance ( Note 2 )

Cj

80

50

pF

Operating Temperature Range

TJ

-55 to +150

oC

Storage Temperature Range

TSTG

-55 to +150

oC

Notes:

1. Reverse Recovery Test Conditions: I

F=0.5A, IR=1.0A, IRR=0.25A

2. Measured at 1 MHz and Applied V

R=4.0 Volts.

3. Measured on P.C.Board with 0.6” x 0.6” (16mm x 16mm) Copper Pad Area.
