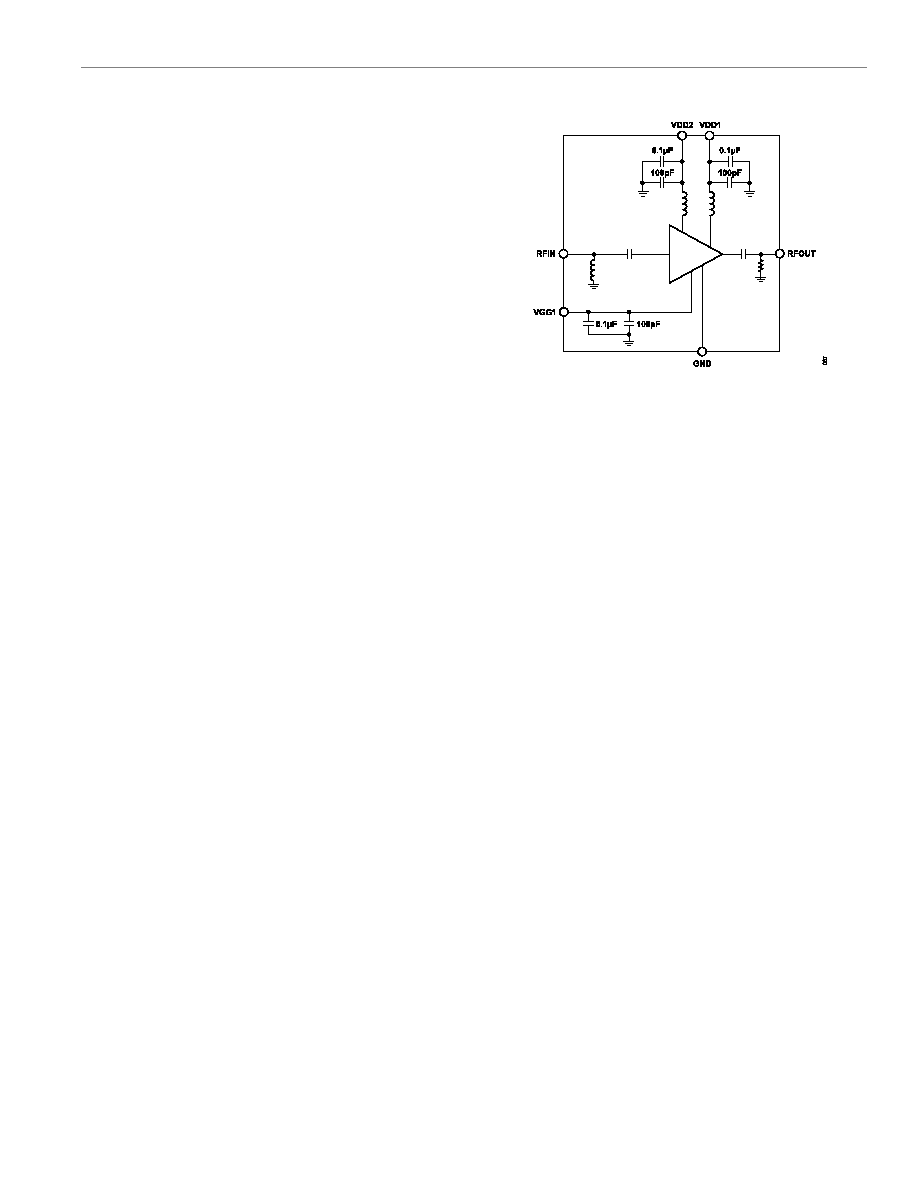

22 / 26 page  Data Sheet ADL8106 THEORY OF OPERATION analog.com Rev. B | 22 of 26 The ADL8106 is a wideband GaAs, pHEMT, low noise amplifier with integrated decoupling components. Figure 87 shows a simplified block diagram. The drain current is set by the negative voltage applied to the VGG1 pin. The drain bias voltage is applied through the VDD1 and VDD2 pins with the current split evenly between the two pins. Bias inductors and 0.1 μF and 100 pF decoupling capacitors are integrated. The RFIN and RFOUT pins are ac-coupled and matched to 50 Ω. However, if these pins are connecting to devices with bias levels that are not equal to 0 V, externally ac-couple the RFIN and RFOUT pins. Figure 87. Simplified Block Diagram |
|
