ECM SMD Ferrite Chip Inductors

ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK

Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk

Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to

discontinue any product or make design changes we believe necessary.

Issue 1

ECM UCR Series

2 Package Sizes

High ‘Q’

Wide Inductance Range

Low dcR

Typical Reel Size 2000pcs

LNQ Series

The LNQ series comes in two sizes aproximate to EIA packages 1210, and 1812.

Suitable applications include:- Pagers, Cordless Phones, Portable GPS, Remote Metering and Sensors

where optimum battery performance is required.

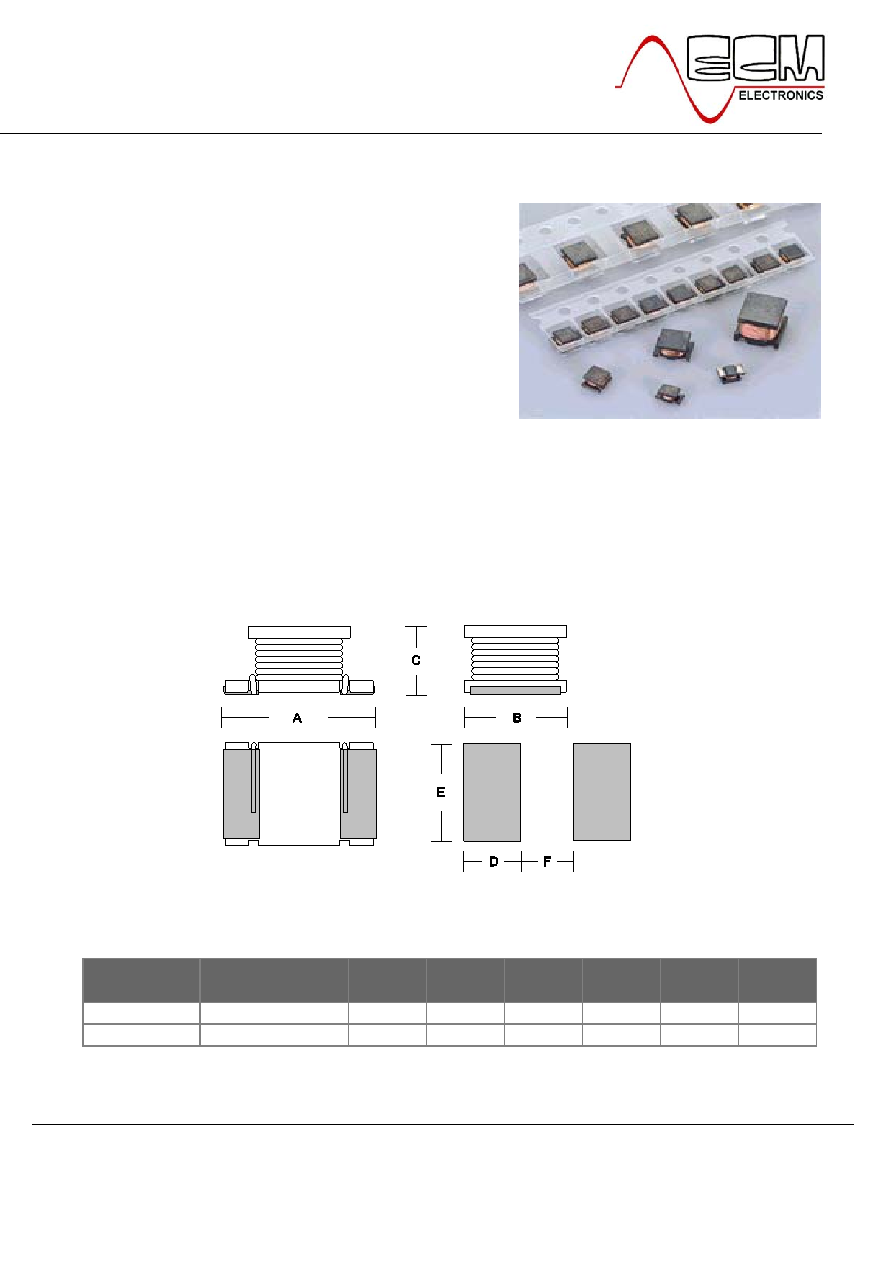

COMPONENT OUTLINE

DIMENSIONS

ECM Type

Inductance

Range

A

(mm)

B

C

D

E

F

LNQ32T

0.1uH~560uH

3.20

2.50

2.00

1.50

2.00

1.00

LNQ45T

1.0uH~2.2mH

4.50

3.20

2.60

2.00

3.00

1.20
