AD8544WARZ-R7 Fiches technique(PDF) 11 Page - Analog Devices

No de pièce AD8544WARZ-R7
Description  CMOS Rail-to-Rail General-Purpose Amplifiers
PDF  18 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  AD [Analog Devices]
Site Internet  http://www.analog.com
Logo AD - Analog Devices

AD8544WARZ-R7 Fiches technique(HTML) 11 Page - Analog Devices

Back Button AD8544WARZ-R7 Datasheet HTML 7Page - Analog Devices AD8544WARZ-R7 Datasheet HTML 8Page - Analog Devices AD8544WARZ-R7 Datasheet HTML 9Page - Analog Devices AD8544WARZ-R7 Datasheet HTML 10Page - Analog Devices AD8544WARZ-R7 Datasheet HTML 11Page - Analog Devices AD8544WARZ-R7 Datasheet HTML 12Page - Analog Devices AD8544WARZ-R7 Datasheet HTML 13Page - Analog Devices AD8544WARZ-R7 Datasheet HTML 14Page - Analog Devices AD8544WARZ-R7 Datasheet HTML 15Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 11 / 18 page
background image
Data Sheet
AD8541/AD8542/AD8544
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. H | 11 of 18

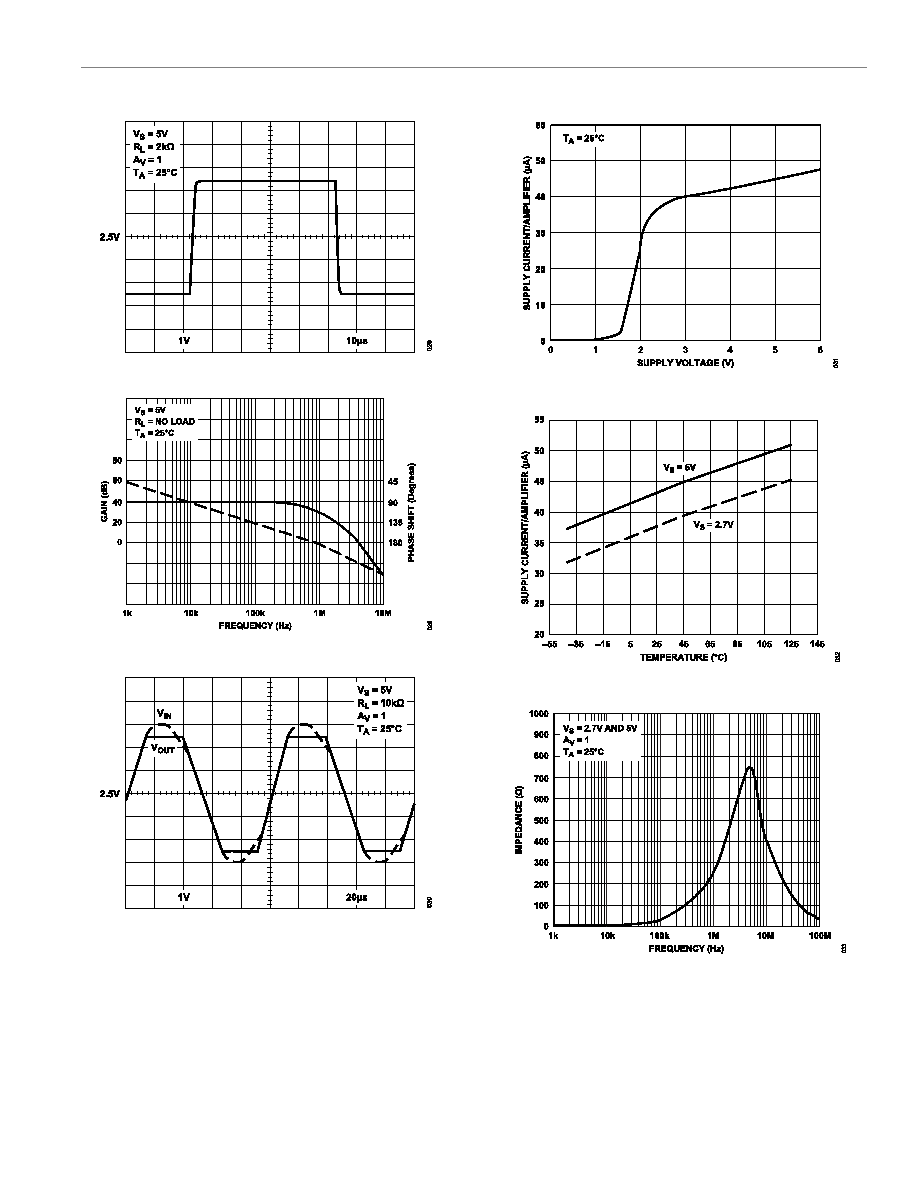

Figure 29. Large Signal Transient Response
Figure 30. Open-Loop Gain and Phase vs. Frequency
Figure 31. No Phase Reversal
Figure 32. Supply Current per Amplifier vs. Supply Voltage
Figure 33. Supply Current per Amplifier vs. Temperature
Figure 34. Closed-Loop Output Impedance vs. Frequency
