AD8005

Data Sheet

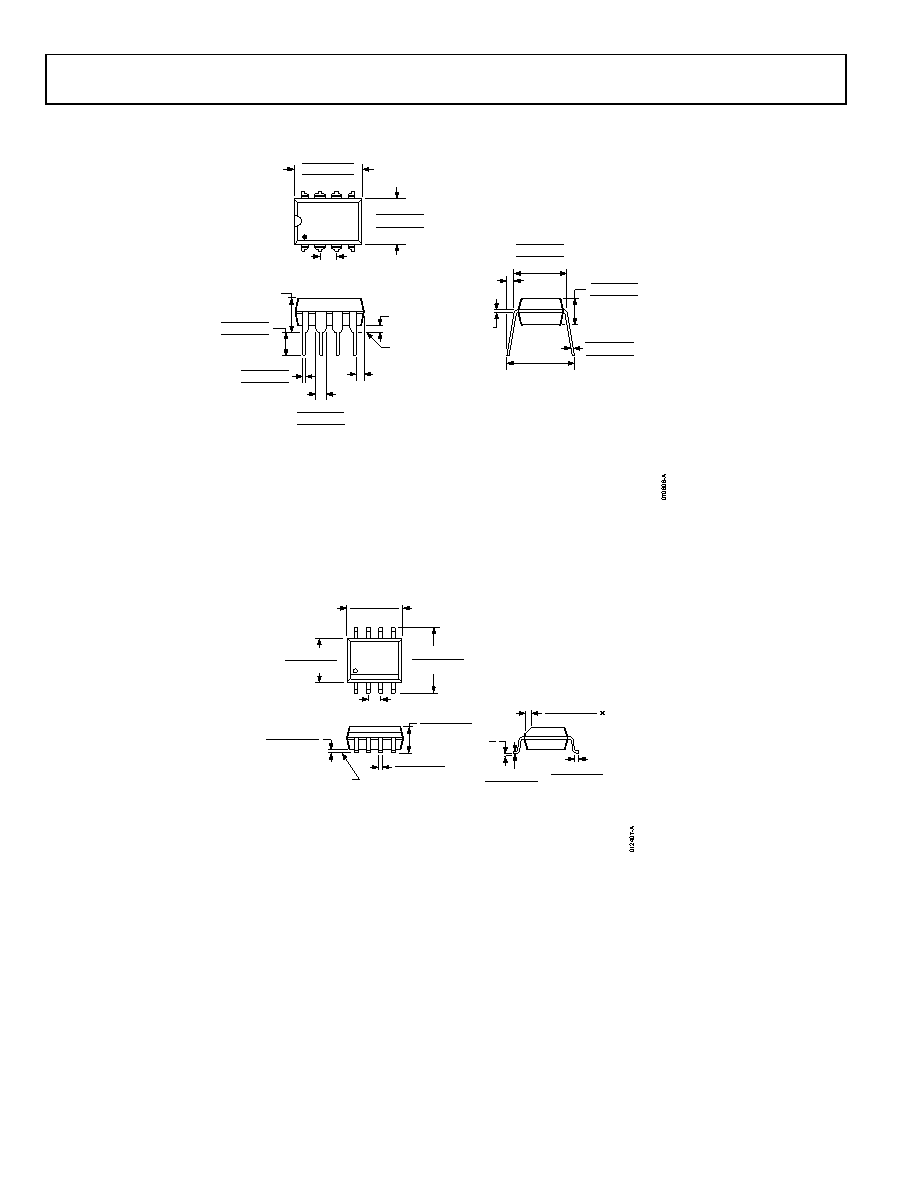

OUTLINE DIMENSIONS

Figure 36. 8-Lead Plastic Dual In-Line Package [PDIP]

Narrow Body

(N-8)

Dimensions shown in inches and (millimeters)

Figure 37. 8-Lead Standard Small Outline Package [SOIC_N]

Narrow Body

(R-8)

Dimensions shown in millimeters and (inches)

COMPLIANT TO JEDEC STANDARDS MS-001

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

CORNER LEADS MAY BE CONFIGURED AS WHOLE OR HALF LEADS.

0.022 (0.56)

0.018 (0.46)

0.014 (0.36)

SEATING

PLANE

0.015

(0.38)

MIN

0.210 (5.33)

MAX

0.150 (3.81)

0.130 (3.30)

0.115 (2.92)

0.070 (1.78)

0.060 (1.52)

0.045 (1.14)

0.280 (7.11)

0.250 (6.35)

0.240 (6.10)

0.100 (2.54)

BSC

0.400 (10.16)

0.365 (9.27)

0.355 (9.02)

0.060 (1.52)

MAX

0.430 (10.92)

MAX

0.014 (0.36)

0.010 (0.25)

0.008 (0.20)

0.325 (8.26)

0.310 (7.87)

0.300 (7.62)

0.195 (4.95)

0.130 (3.30)

0.115 (2.92)

0.015 (0.38)

GAUGE

PLANE

0.005 (0.13)

MIN

CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

COMPLIANT TO JEDEC STANDARDS MS-012-AA

0.25 (0.0098)

0.17 (0.0067)

1.27 (0.0500)

0.40 (0.0157)

0.50 (0.0196)

0.25 (0.0099)

45°

8°

0°

1.75 (0.0688)

1.35 (0.0532)

SEATING

PLANE

0.25 (0.0098)

0.10 (0.0040)

5.00 (0.1968)

4.80 (0.1890)

4.00 (0.1574)

3.80 (0.1497)

1.27 (0.0500)

BSC

6.20 (0.2441)

5.80 (0.2284)

0.51 (0.0201)

0.31 (0.0122)

COPLANARITY

0.10

Rev. B | Page 12 of 16
