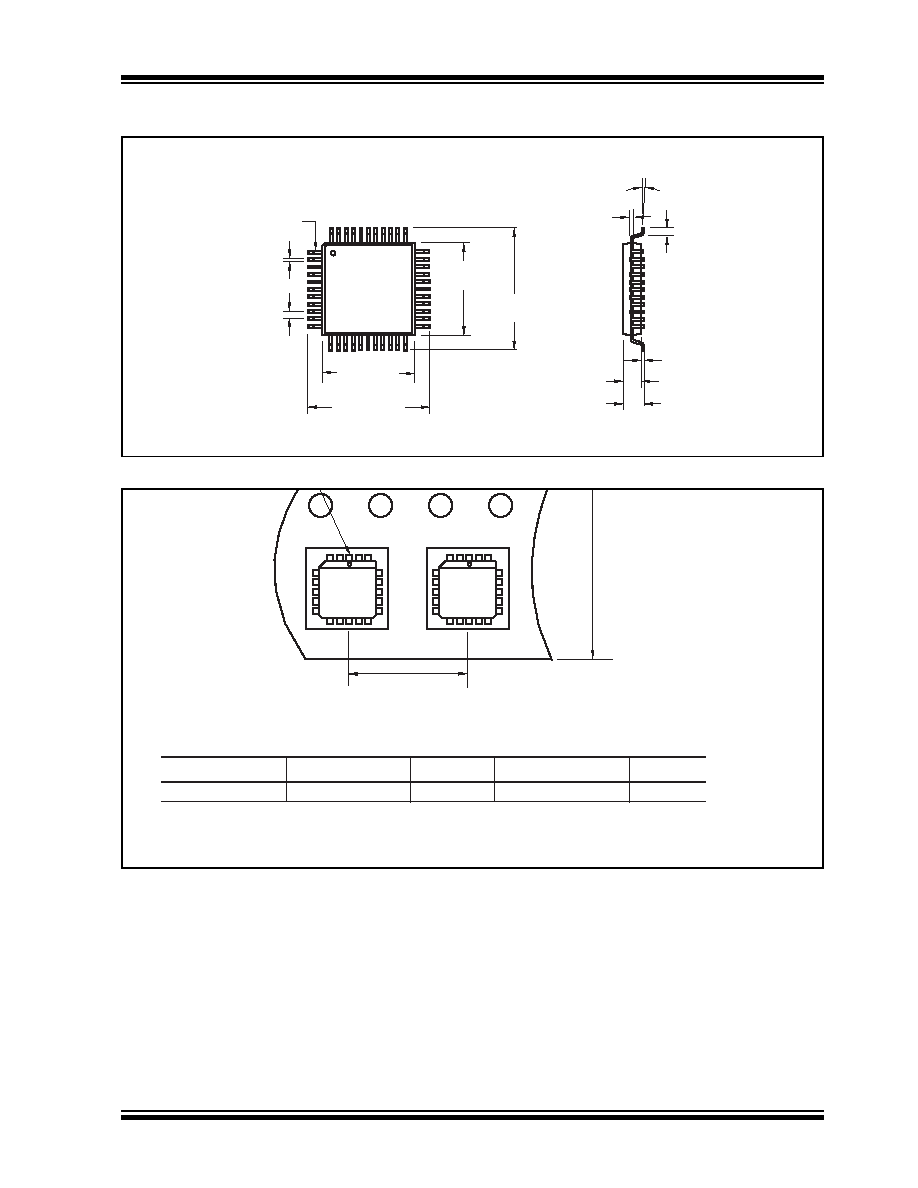

25 / 30 page  © 2006 Microchip Technology Inc. DS21456C-page 25 TC7109/A 6.3 Package Dimensions (Continued) Dimensions: inches (mm) .557 (14.15) .537 (13.65) .398 (10.10) .390 (9.90) .031 (0.80) TYP. .018 (0.45) .012 (0.30) .398 (10.10) .390 (9.90) .010 (0.25) Typ. .096 (2.45) Max. .557 (14.15) .537 (13.65) .083 (2.10) .075 (1.90) .041 (1.03) .026 (0.65) 7° Max. .009 (0.23) .005 (0.13) 44-Pin PQFP Pin 1 Dimensions: inches (mm) Standard Reel Component Orientation for 713 Suffix Device Note: Drawing does not represent total number of pins. W P Package Carrier Width (W) Pitch (P) Part Per Full Reel Reel Size 44-Pin PLCC 32 mm 24 mm 500 13 in Carrier Tape, Number of Components Per Reel and Reel Size |
|
