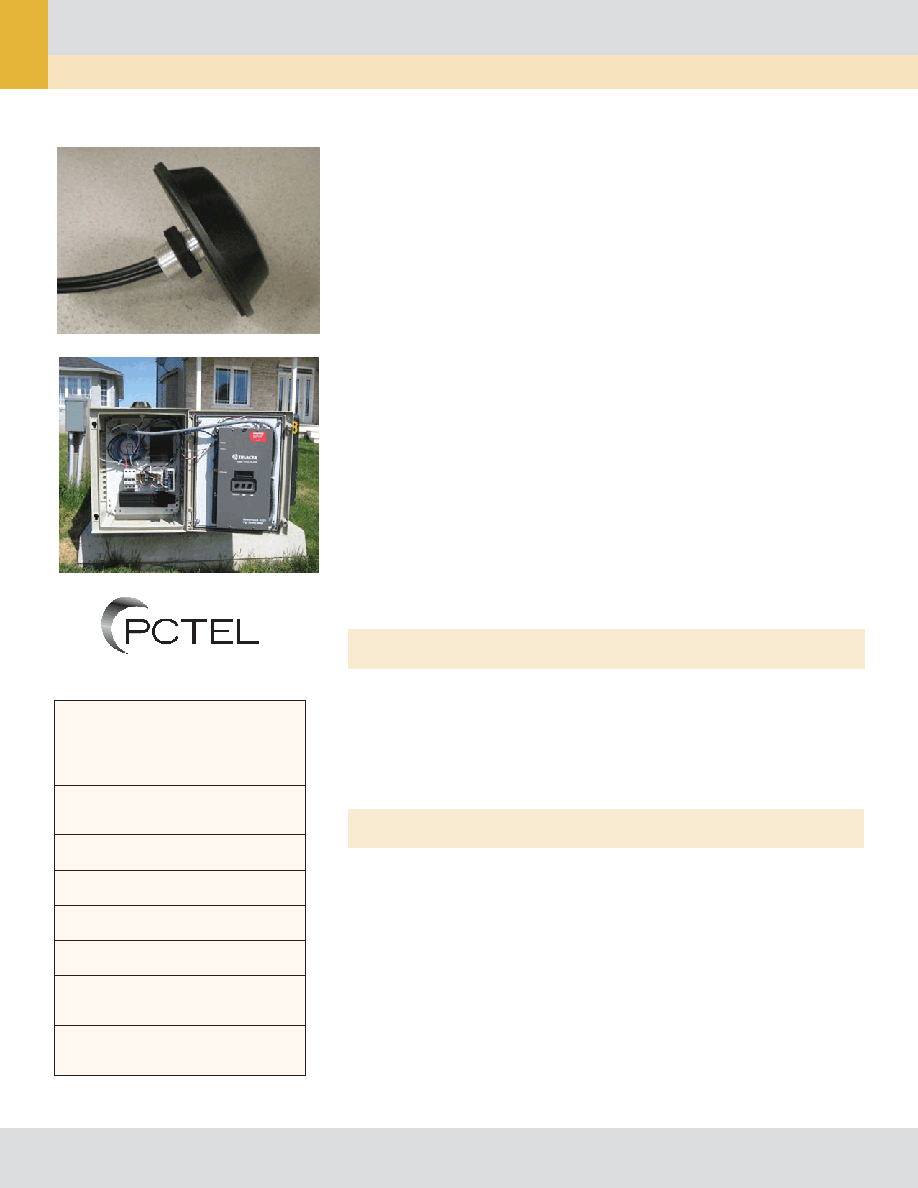

Permanent Mount Multi-Band

Omnidirectional Antenna

This antenna provides multi-band omnidirectional coverage for fixed or

mobile applications operating in AMPS, PCS and Wi-Fi frequencies. Featuring

a durable, very low profile radome and integral stud mount base for through

hole installations, this antenna is ideal for vending machine, meter reading

and other telemetry data tracking applications requiring a discrete antenna

solution.

Features:

•

Low profile design for minimal exposure to theft or vandalism

•

Through hole mounting with jam nut prevents removal of antenna

•

Rubber gasket for water ingress prevention allows use in and out of

doors

•

Durable UV stable plastic for long lasting indoor or outdoor installations

•

High gain performance and high efficiency cable supports highly

efficient radio systems

Antenna Electrical Specifications

Model

Frequency

Range

Horizontal

Beamwidth

Vertical

Beamwidth

Peak

Gain

PCTMBPTSM/RPSM

824-896 MHz,

1850-1990 MHz,

2400-2485 MHz

360°

360°

360°

40°

25°

24°

2 dBi

3 dBi

3 dBi

Mechanical Specifications

Technical Data

General Specifications:

Bottom fed multi-band antenna for use

on metallic ground planes

Maximum Power:

10 watts

VSWR:

< 2:1 (Wi-Fi)

< 2:1 (AMPS, PCS)

Nominal Impedance:

50 ohms

Polarization:

Linear, vertical

Radome Material:

UV stable plastic

Cable:

Two 3 ft Pro-Flex Plus 195

Connector*:

Male SMA (AMPS/PCS)

Reverse Polarity SMA (WiFi)

Mount Method:

Through hole 15/16-inch dia (0.94)

7/8-14-inch UNF plastic Hex-nut

*Standard. Please contact factory about

other connector options.

PCTEL, Inc.

WEB: www.antenna.pctel.com

INDOOR/OUTDOOR ANTENNAS

Permanent Mount Multi-Band Omnidirectional Antenna

Model

Dimensions

Weight

(Mass)

PCTMBPTSM/RPSM

4.4” x 1.5”

(11.18 x 4.06 cm)

0.40 lb

(0.18 kg)
