264 03/01

3-Line Filters

B84143-A*-R21

for Converters and Power Electronics

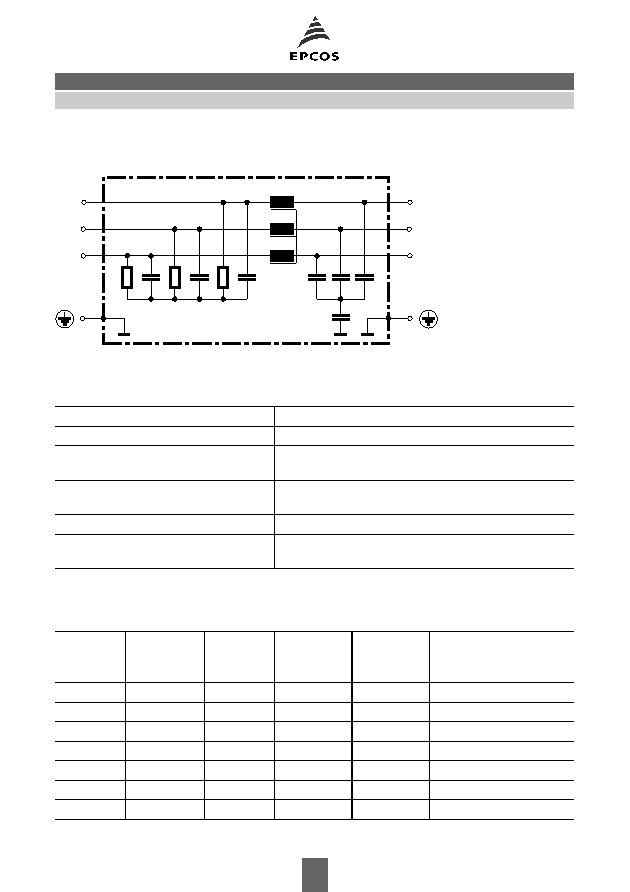

Typical circuit diagram

Technical data

Characteristics and ordering codes

Rated voltage VR

760/440 V~, 50/60 Hz

Rated current I R

referred to 40

°C ambient temperature

Test voltage VP

2121 V–, 2 s (line/line)

2700 V–, 2 s (lines/case)

Overload capability

1,5 · I R for 3 min per hour or

2,5 · I R for 30 s per hour

Leakage current I leak

at 690 V~, 50 Hz

Climatic category

25/1005/21 (– 25

°C/+ 100 °C/21 days damp heat test)

in accordance with EN 60068-1

Terminal

cross section

mm2

I leak

Rtyp

Ω

Approx.

weight

Ordering code

< 7

8,0

B84143-A25-R21

< 7

3,8

B84143-A36-R21

< 12

2,0

B84143-A50-R21

< 12

1,0

9,5

B84143-A80-R21

120

< 12

0,75

B84143-A120-R21

150

< 12

0,4

B84143-A150-R21

180

< 12

0,4

B84143-A180-R21

LINE

SSB1189-I

L2’

L3’

L1’

LOAD
