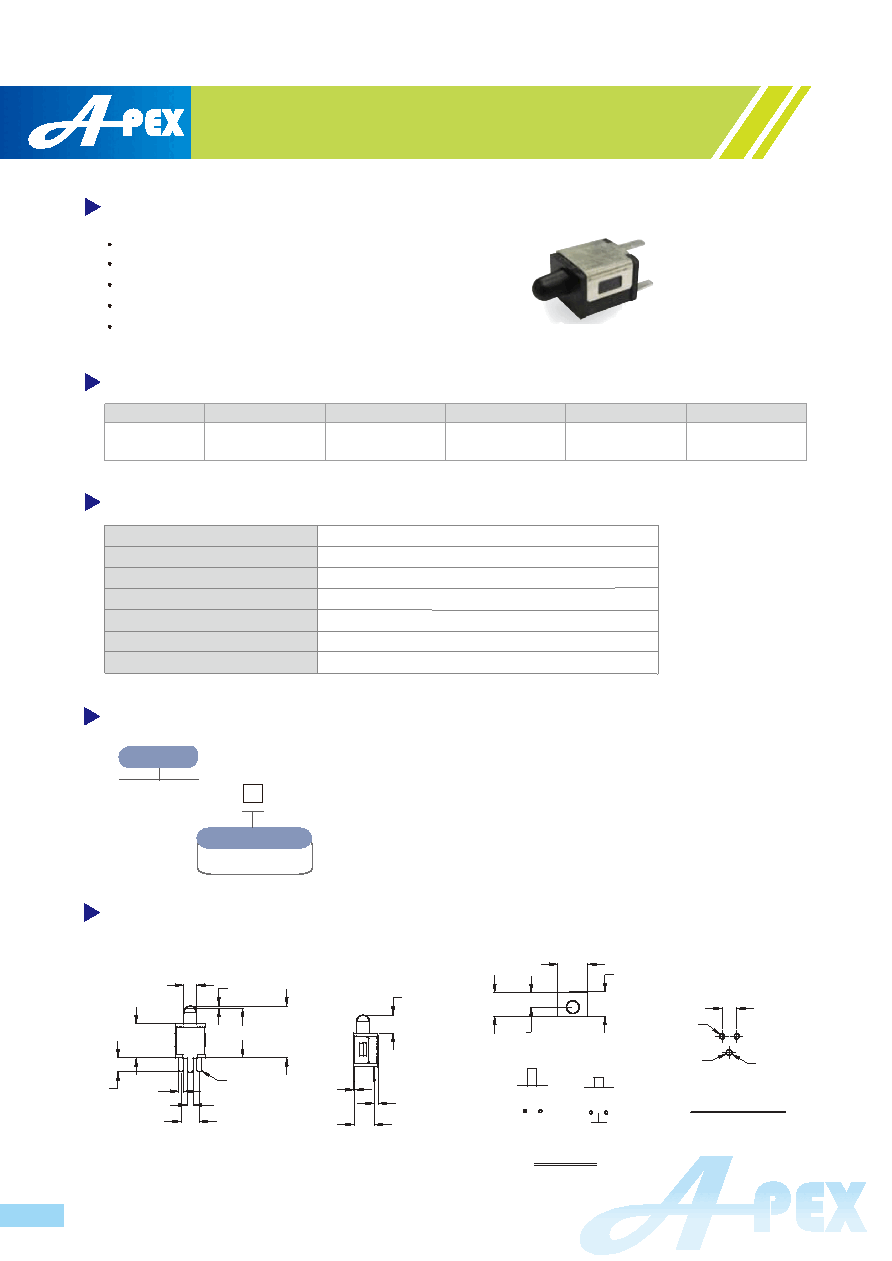

DS3 datasheet(1/1 Pages) APEX-ELECTRONICS

No de pièce	DS3

Description	8.0*7.0mm detector switch, through hole, normal open

PDF	1 Pages

Scroll/Zoom	100%

Fabricant	APEX-ELECTRONICS [Apex Electronics Co., Ltd]

Site Internet	https://apex-electronics.com/index.php

Logo

1 / 1 page

www.apex-electronics.com

Operating Force

Operating Temperature Range

Actuation Life Cycle

Voltage Rating

Insulation Resistance

Dielectric Strength

Contact Resistance

100,000

0.5A, 120VAC

100 MΩ min @ 100VDC

100 VAC for 1 minute

0.2Ω max.

Materials

Housing

Cover

Actuator

Contact

Terminal

Stainless Steel

with tin plating

PA66

PBT

PBS

Silver plated

Brass

Part Name

Material

Miniature package for space saving

Top or side detection

Long travel

Optional pilot boss for positioning

RoHS Compliant

Product Features

01

DS3 Series

-30°C ~ 85°C

8.0*7.0mm detector switch, through hole, normal open

Specification

200±50 gram

Part Number

DS3

Series

Free Position

A 4.2mm

Diagram

PT

.0197

0.50

OP

.169

4.30

Ø

.118

Ø

3.00

.315

8.00

FP

.480

12.2

.130

3.30

.047

1.20

Over travel

.165

4.20

.055

1.40

.186

4.73

.008

0.20

1

2

.036

0.93

.218

5.55

.133

3.40

.275

7.00

.226

5.75

C .011

C 0.30

Ø

.067

Ø

1.7

Ø

0.59

Ø

1.5

1 2

PTH hole

NPTH hole

1 2

P.C. MOUNTING

SCHMATIC

OFF

ON

.461

11.7
