ADL5507ACBZ-R7 Fiches technique(PDF) 20 Page - Analog Devices

No de pièce ADL5507ACBZ-R7
Description  10 MHz to 12 GHz, 55 dB Logarithmic RF Power Detector
PDF  34 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  AD [Analog Devices]
Site Internet  http://www.analog.com
Logo AD - Analog Devices

ADL5507ACBZ-R7 Fiches technique(HTML) 20 Page - Analog Devices

Back Button ADL5507ACBZ-R7 Datasheet HTML 16Page - Analog Devices ADL5507ACBZ-R7 Datasheet HTML 17Page - Analog Devices ADL5507ACBZ-R7 Datasheet HTML 18Page - Analog Devices ADL5507ACBZ-R7 Datasheet HTML 19Page - Analog Devices ADL5507ACBZ-R7 Datasheet HTML 20Page - Analog Devices ADL5507ACBZ-R7 Datasheet HTML 21Page - Analog Devices ADL5507ACBZ-R7 Datasheet HTML 22Page - Analog Devices ADL5507ACBZ-R7 Datasheet HTML 23Page - Analog Devices ADL5507ACBZ-R7 Datasheet HTML 24Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 20 / 34 page
background image
Data Sheet
ADL5507
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 20 of 34

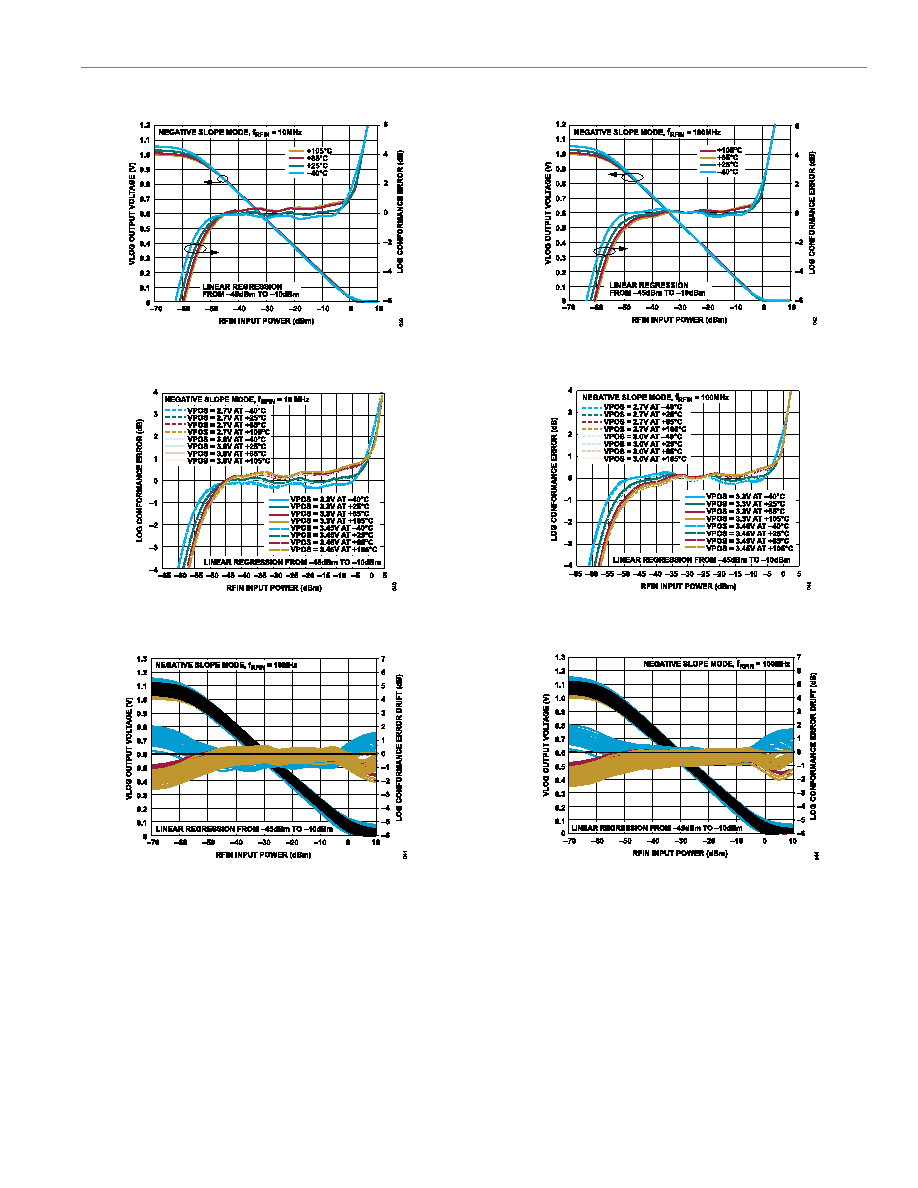

Figure 39. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at
10 MHz, Negative Slope Mode
Figure 40. Log Conformance Error vs. PRFIN Over Temperature and VPOS at
10 MHz, Negative Slope Mode
Figure 41. Distribution of VVLOG and Log Conformance Error Drift with
Respect to 25°C vs. PRFIN at 10 MHz, Negative Slope Mode
Figure 42. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at
100 MHz, Negative Slope Mode
Figure 43. Log Conformance Error vs. PRFIN Over Temperature and VPOS at
100 MHz, Negative Slope Mode
Figure 44. Distribution of VVLOG and Log Conformance Error Drift with
Respect to 25°C vs. PRFIN at 100 MHz, Negative Slope Mode
