D640D90VF Fiches technique(PDF) 6 Page - Advanced Micro Devices

No de pièce D640D90VF
Description  64 Megabit (8 M x 8-Bit/4 M x 16-Bit) CMOS 3.0 Volt-only, Simultaneous Read/Write Flash Memory
PDF  54 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  AMD [Advanced Micro Devices]
Site Internet  http://www.amd.com
Logo AMD - Advanced Micro Devices

D640D90VF Fiches technique(HTML) 6 Page - Advanced Micro Devices

Back Button D640D90VF Datasheet HTML 2Page - Advanced Micro Devices D640D90VF Datasheet HTML 3Page - Advanced Micro Devices D640D90VF Datasheet HTML 4Page - Advanced Micro Devices D640D90VF Datasheet HTML 5Page - Advanced Micro Devices D640D90VF Datasheet HTML 6Page - Advanced Micro Devices D640D90VF Datasheet HTML 7Page - Advanced Micro Devices D640D90VF Datasheet HTML 8Page - Advanced Micro Devices D640D90VF Datasheet HTML 9Page - Advanced Micro Devices D640D90VF Datasheet HTML 10Page - Advanced Micro Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 6 / 54 page
background image
4
Am29DL640D
December 13, 2005
PRODUCT SELECTOR GUIDE

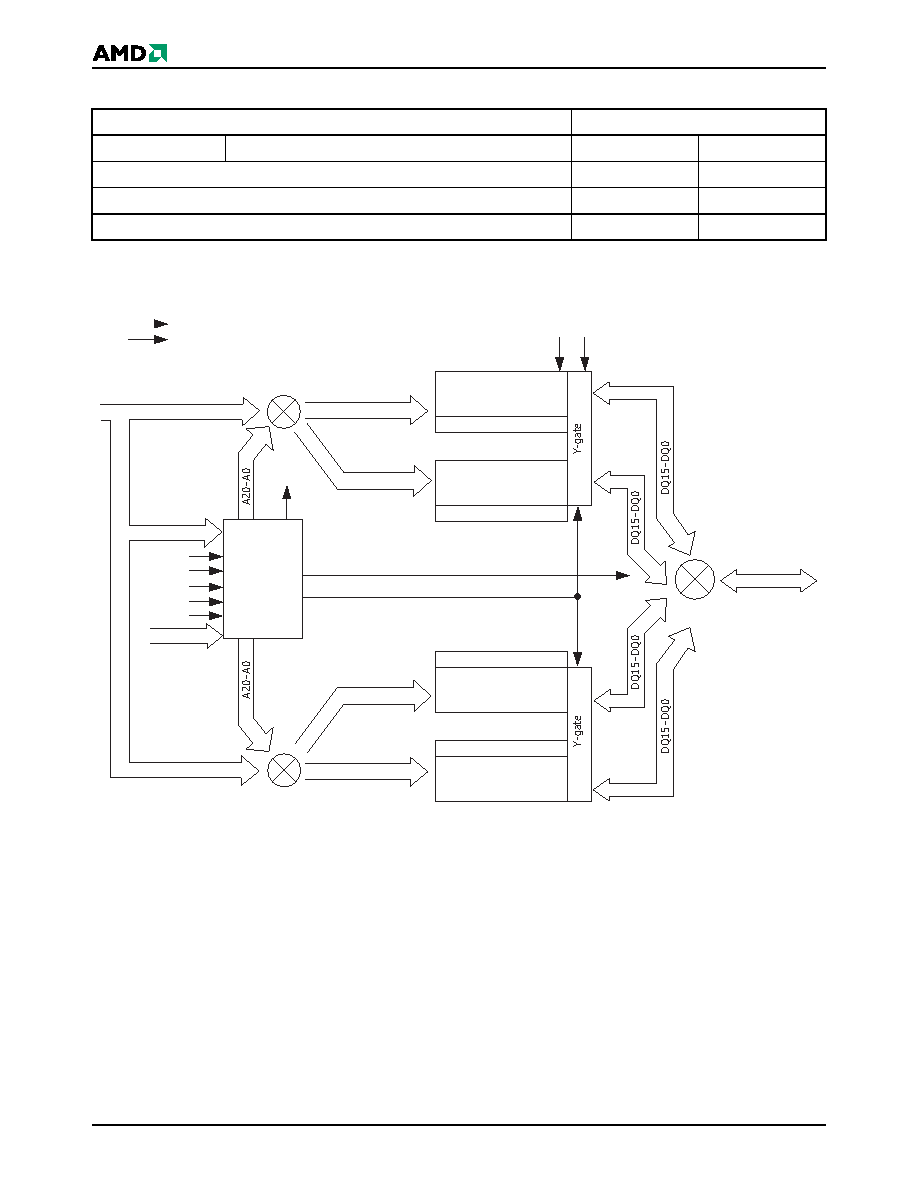

BLOCK DIAGRAM
Part Number
Am29DL640D
Speed Option
Standard Voltage Range: VCC = 2.7–3.6 V
90
120
Max Access Time (ns), t
ACC
90
120
CE# Access (ns), t
CE
90
120
OE# Access (ns), t
OE
35
50
VCC
VSS
Bank 1 Address
Bank 2 Address
A20–A0
RESET#
WE#
CE#
BYTE#
DQ0–DQ15
WP#/ACC
STATE
CONTROL
&
COMMAND
REGISTER
RY/BY#
Bank 1
X-Decoder
OE#
BYTE#
DQ15–DQ0
Status
Control
A20–A0
A20–A0
Mux
Mux
Mux
Bank 2
X-Decoder
Bank 3
X-Decoder
Bank 4
X-Decoder
Bank 3 Address
Bank 4 Address
