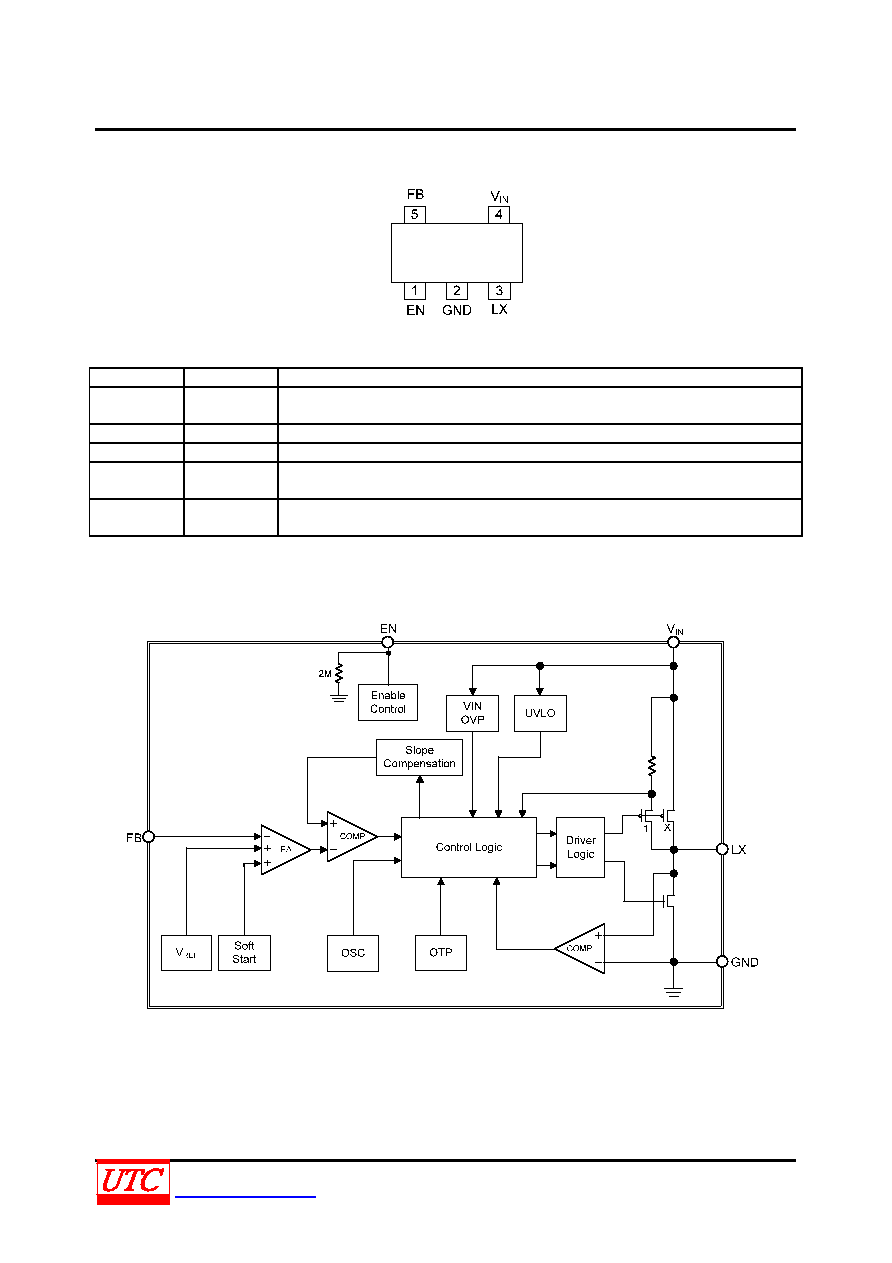

background image
UD05124
Advance
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
3 of 9
www.unisonic.com.tw
QW-R115-038.c
PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
EN
Enable control pin. Pull high to turn the IC on, and pull low to disable the IC. Don’t
leave this pin floating.
2
GND
Ground pin.
3
LX
Power switching node. Connect an external inductor to this switching node.
4
VIN
Power supply input pin. Placed input capacitors as close as possible from VIN to
GND to avoid noise influence.
5
FB
Voltage feedback input pin. Connect FB and VOUT with a resistive voltage divider.
This IC senses feedback voltage via FB and regulates it at 0.6V.
BLOCK DIAGRAM
