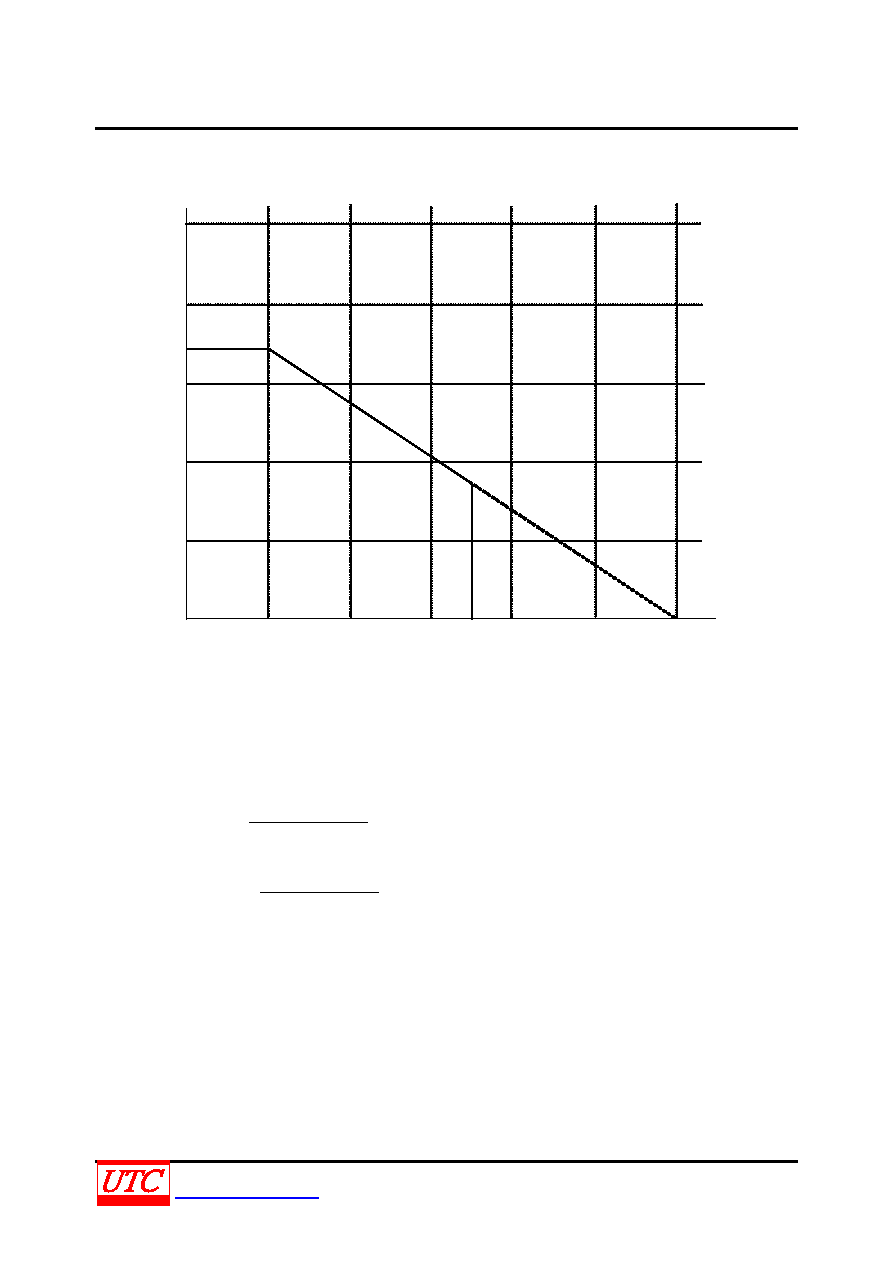

 4 / 6 page
background image
F6908
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
4
www.unisonic.com.tw
QW-R109-016.B
POWER DERATING CURE
1000
800
600
400
200
0
25
50
75
85
100
125
150
687
PD (mW)
Ta (℃)
To use at temperature above Ta=25℃ reduce 5.5mW/℃
(On 70.0mm×70.0mm×1.6mm glass epoxy board)
LOCK DETECT CIRCUIT, AUTOMATIC RESTART CIRCUIT
Charge and discharge time at motor lock condition varies with the value of external capacitor at LD terminal, and is
given by the following equation.
C×(VLDCL-VLDCP)
TON (Charge time) =
ILDC
C×(VLDCL-VLDCP)
TOFF (Discharge time)=
ILDD
C: Capacitor at LD pin
The following value shows charge time and discharge time at C=0.47µF for reference.
Charge time =0.18S (Output: ON)
Discharge time = 1.02S (Output: OFF)
