PCMFxUSB3S series

Common-mode EMI filter for differential channels with integrated ESD protection

Test frequency: 148.5 MHz

Differential swing voltage: 849 mV

Horizontal scale: 34 ps/div

Remark: Measured at Test Point 2 (TP2) worst cable emulator, reference cable equalizer and worst case positive

skew.

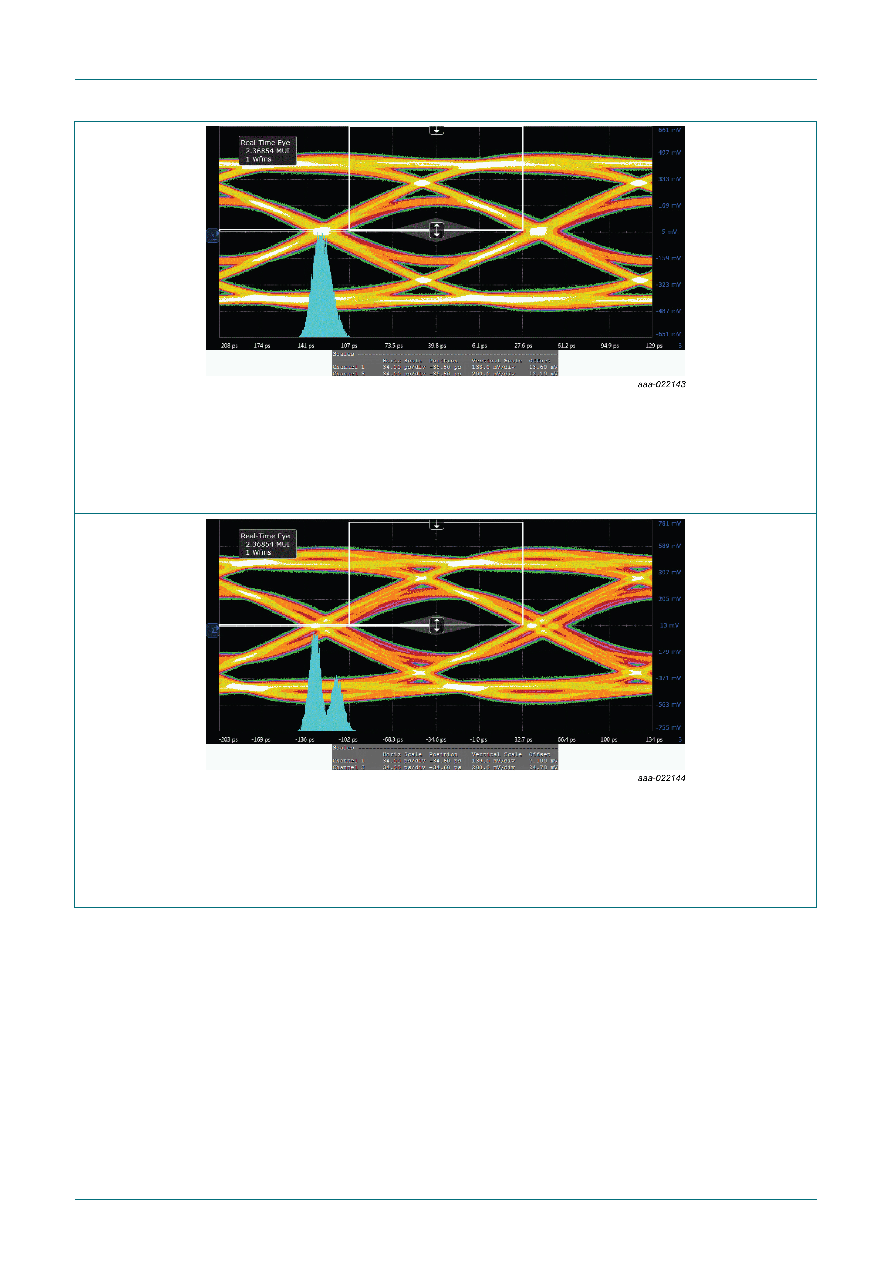

Fig. 11. HDMI 2.0 eye diagram TP2, test board with PCMF2USB3S; typical values

Test frequency: 148.5 MHz

Differential swing voltage: 909 mV

Horizontal scale: 34 ps/div

Remark: Measured at Test Point 2 (TP2) worst cable emulator, reference cable equalizer and worst case positive

skew.

Fig. 12. HDMI 2.0 eye diagram TP2, test board without device; typical values
