Nexperia
PCMFxUSB3BA/C series
Common-mode EMI filter for differential channels with integrated bidirectional ESD protection
Short cable model (SCM), no equalizer

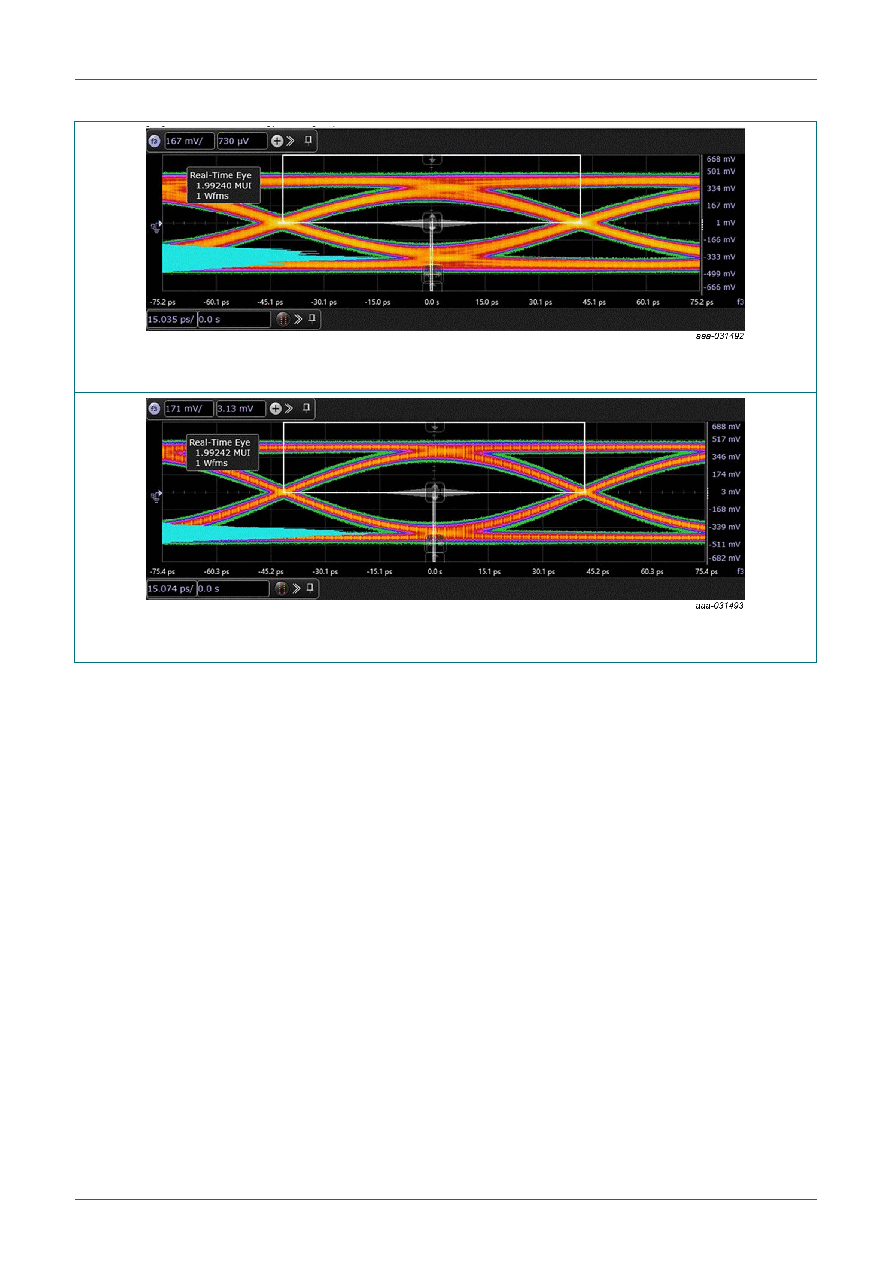

Fig. 7. HDMI 2.1 12G FRL eye diagram, PCB with device; typical values
Short cable model (SCM), no equalizer
Fig. 8. HDMI 2.1 12G FRL eye diagram, PCB without device; typical values
PCMFXUSB3BA_C_SER
All information provided in this document is subject to legal disclaimers.
©
Nexperia B.V. 2020. All rights reserved
Product data sheet
Rev. 4 — 12 May 2020
7 / 19
