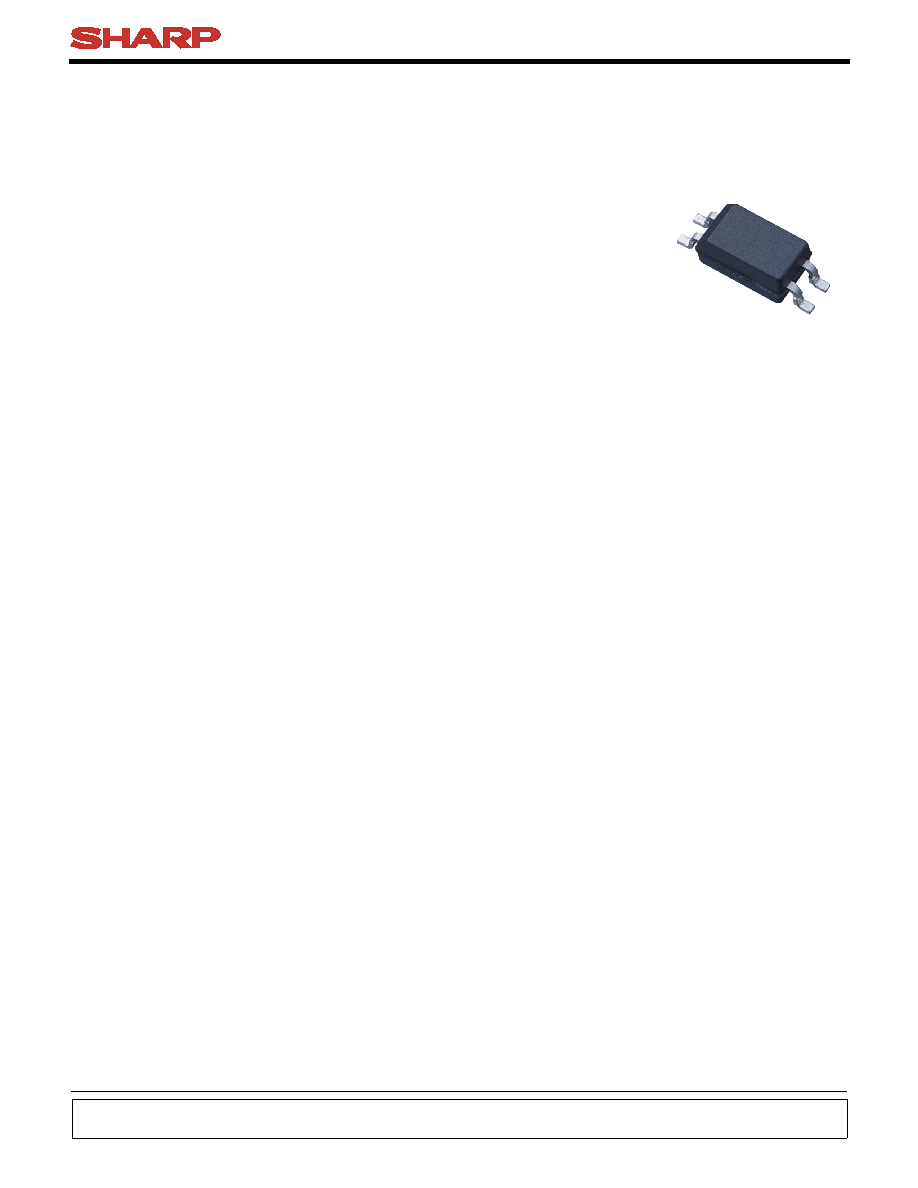

PC3H2AB datasheet(1/13 Pages) SHARP

No de pièce	PC3H2AB

Description	Mini-flat Half Pitch Package, High CMR Photocoupler

PDF	13 Pages

Scroll/Zoom	100%

Fabricant	SHARP [Sharp Corporation]

Site Internet	http://sharp-world.com/

Logo

1 / 13 page

1. Recognized by UL1577 (Double protection isolation),

file No. E64380 (as model No. PC3H2)

2. Package resin : UL flammability grade (94V-0)

■ Features

■ Agency approvals/Compliance

1. Programmable controllers

■ Applications

Mini-flat Half Pitch Package,

High CMR

Photocoupler

1. 4-pin Mini-flat Half pitch package (Lead pitch :

1.27mm)

2. Double transfer mold package (Ideal for Flow Solder-

ing)

3. High collector-emitter voltage (VCEO : 80V(∗))

4. High noise immunity due to high common mode re-

jection voltage (CMR : MIN. 10kV/

µs)

5. Isolation voltage between input and output (Viso(rms) :

2.5kV)

(*) Up to Date code "P9" (September 2002) VCEO : 70V.

■ Description

PC3H2 Series contains a IRED optically coupled to

a phototransistor.

It is packaged in a 4-pin Mini-flat, Half pitch type.

Input-output isolation voltage(rms) is 2.5kV.

Collector-emitter voltage is 80V(*), CTR is 20% to

400% at input current of 1mA and CMR is MIN. 10kV/

µs.

1

Sheet No.: D2-A01101EN

Date Sep. 30. 2003

Notice The content of data sheet is subject to change without prior notice.

In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP

devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.

PC3H2 Series

∗4-channel package type is also available. (model No. PC3Q62)
