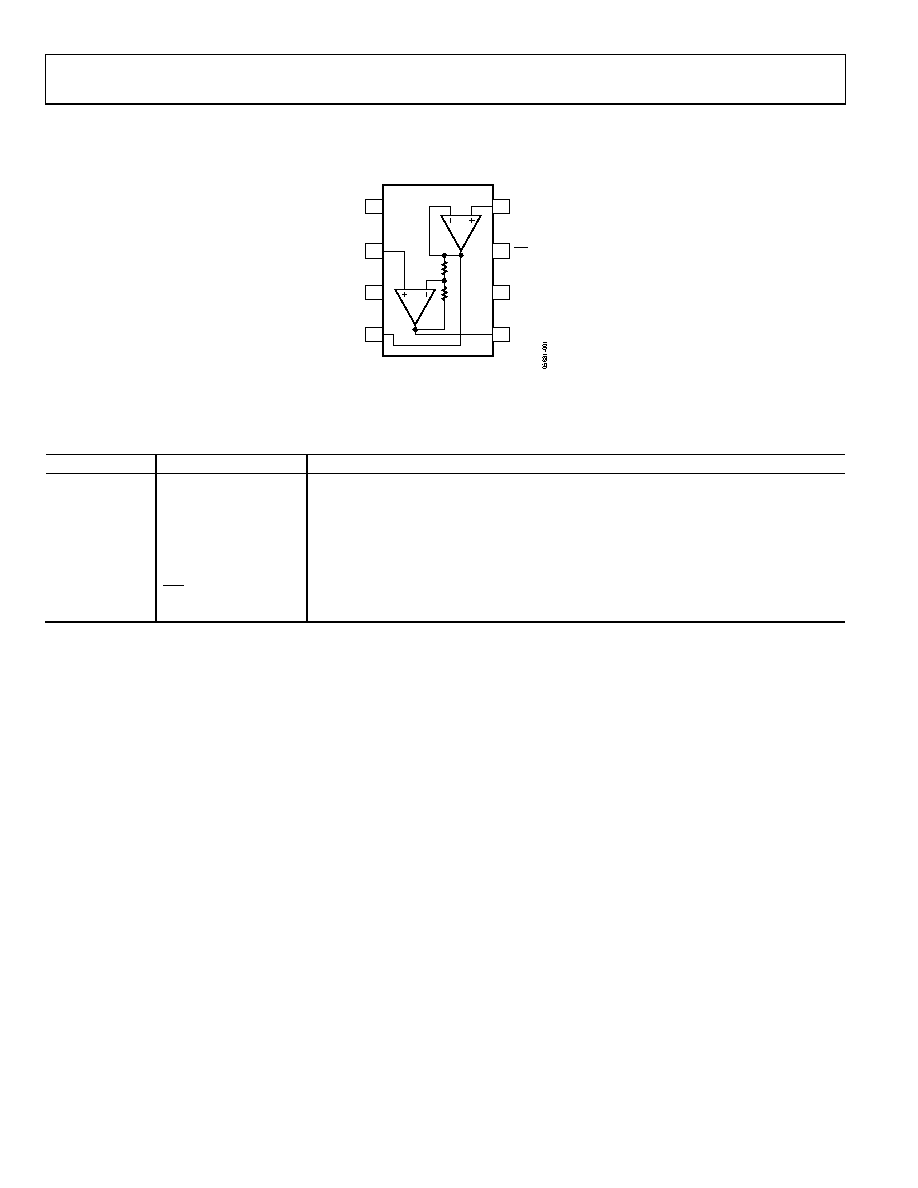

background image
ADA4922-1
Rev. 0 | Page 6 of 20
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
DIS
NC = NO CONNECT
4
3
2
1
IN
OUT–
OUT+
VS+
REF
NC
VS–
7
8
5
6
ADA4922-1
Figure 4. Pin Configuration
Table 5. Pin Function Descriptions
Pin No.
Mnemonic
Description
1
NC
No Internal Connection
2
REF
Reference Voltage for Single-Ended Input Signal
3
VS+
Positive Power Supply
4
OUT+
Noninverting Side of Differential Output
5
OUT−
Inverting Side of Differential Output
6
VS−
Negative Power Supply
7
DIS
Disable
8
IN
Single-Ended Signal Input
